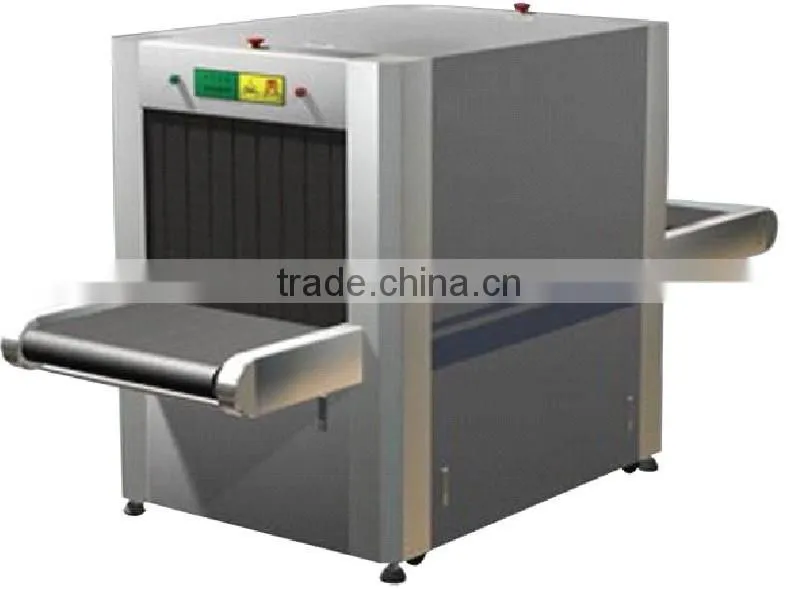

Digital 0.22m / Second Airport Baggage X Ray Scanner High Resolution
Specifications:
Tunnel size: |
800 x 650 mm |
Conveyor speed: |
0.22 m/s |
Conveyor maximum load: |
150 kg |
Single inspection dosage |
<1.5µgy |
Wire resolution |
0.1 mm metal line |
Steel penetration: |
32 mm armor plate |
Film safety: |
for ISO 1600 |
Maximum leakage radiation |
<0.3 µgy /hr |
Competitive Advantage:
Network interface : Could be connect local area network and support multi terminal check baggage at same times
Simple operation by mouse: without keyboard and work table , control by mouse , save space
Features:
Alarm by sounds and light: alarm by sounds and light when conform to condition
Network interface: could be connect local area network and support multi-terminal check baggage at same times
Safety ray: transmit ray under automatic control, avoids the miss
Turn off by a key control: the equipment automatic security close-down, does not need complex many steps
Eagle eye: could be expediently observing enlargement area
Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance
X-ray generator:
Orientation: vertically upward
Tube current: 0.4 to 1.2mA (adjustable)
Anode voltage: 100 to 160kV (adjustable)
Angle: 80°
Generator cooling/working periods
Sealed oil bath with forced air/100%
Image performance system:
X-ray sensor: L type photo-diode array detector, 12bit
Monitor: high resolution 17-inch color LCD display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly
Magnifier: function of partial enlargement
Brightening/dimming: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Operating environment :
Storage temperature: -20ºc to 60ºc
Operating temperature: 0ºc to 45ºc
Relative humidity: 20 to 95% non-condensing
System power: 220 vac (±10%) 50±3hz
Power wastage:1.2 kw (max)
Noise: <65db
Packing : 1pcs/carton
Carton size : 250cm*140cm*190cm
Weight/carton : 800kgs
Warranty:
(1)All products have been Strictly Quality Checked before packing.
(2)All Products have been well packed before shipping
(3)One Year warranty is proviced for all models. we will bear maintenance cost during warranty period.
(4)OEM Service ofference
Design service offered
Buyer label offered
Delivery:
(1)Sample and Min Order will be delivery within 2-3 working days after receipt of payment.
(2)For order over 500 pcs of sustomized order, please contact our sales to make sure the current inventory.
Shenzhen Ougood Technology Limited
We are a professional security products manufacturer that speciazed in metal detectors for
7 years,Located in Shenzhen,China.We organized the world-rate R&D dept. Certified by CE
and ISO 9001:2008 quality Management.Can excellent security products in lower costs for
Humans Life over the world.
Our main products line :
Handheld metal detectors
ground metal detector
Walk Through metal detector
Industiral auto conveying metal detector
Under car inspection equipment
OEM & ODM Design service.
Inform us your need, we can service you at once.
Why Choose ShenZhen Ougood Technology Limited metal detector
We use the true digital micro processing technology instead old analog type.
all our items is coming with certification and we have special team work for after sales services
We ready for sign contract with you in case you need it, as honest dearly we never crook our customers
How to place order?
It is very easy and we will communicate with you very patiently no matter you are professional in
metal detector industry or zero knowledge of it.
Payment information
We can accept L/C, T/T, Western Union, and MoneyGram
Delivery time
Delivery day will be 3-5 working days
