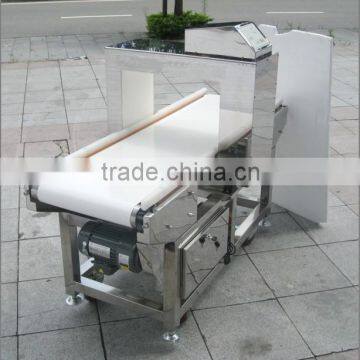

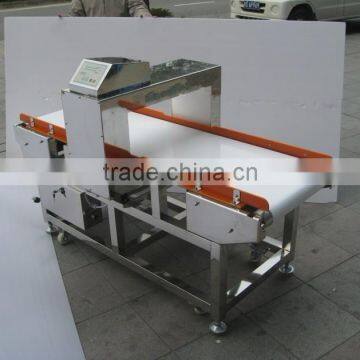

Help CenterSuper Profesional Small Pin Detector for Security of Food 508K With LCD Screen All Kinds of Metals Detector
Related Products
-
Super Profesional Broken Needle Metald Detector for Security of Food 508K With LCD ScreenUS$ 4,000 - 4,200MOQ: 1 Piece -
Automatic Feeding Food Metal Detector for Pharmaceutical IndustrialUS$ 4,000 - 4,200MOQ: 1 Piece
-
Auto Conveying Industrial Metal Detector for Broken Needle and Other Ferrous MetalsUS$ 2,400 - 2,520MOQ: 1 Piece
-
TY-20MJ Hand Hold Magnetic Induction Broken Needle Detector in Clothes With Buzzer and LampUS$ 28 - 30MOQ: 10 Pieces
-
JZQ-86B Table Top Type Needle Industrial Metal Detector to Detect Magnetic Metal Objects in ClothesUS$ 280 - 294MOQ: 5 Pieces

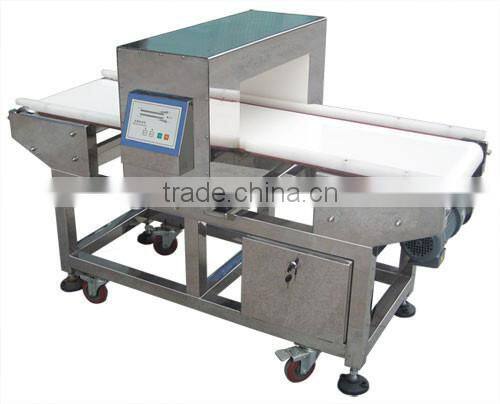

Automatic Feeding all metal detector for food industial and pharmaceutical industrial
Auto-Matic Feeding All-metal Detector adopts advanced technique,fine in structure and beautiful in design.
It has super sensitivity and stable function for good detecting conclusion.
1. Purpose:
Designed for food industrial and pharmaceutical industrial use.Detecting metal fragments
(iron,copper,aluminum,lead,tin,stainless steel,etc.)such as aquaculture,fishery,dried or fresh
marine product,flour,frozen food,meat wear,instant food,pets food,
pickled food,spice,food additive,vegetable and fruit,sugar,tea,health products,medicine and so on.
2. Function and characteristics :
a. The complete machine makes use of mirror plate stainless steel materials,so it is clean and not easy to dust.
b. The complete machine makes use of laser cutting,so the manufacturing process is fine.
c. The detection probe and the electrical equipment control box make use of waterproofing and dust proofing.
d. The pipeline can be disassembled and cleaned simply.
e. Anti-crooked running treatment for the conveying belt.
f. Make use of motors make in Taiwan,so the noise is low,and the vibration is light.
g. Both the detecting coil and the circuit element make use of imported components.
h. Supply power with two independent transformers.
i. Have a strong antishock and anti interference ability.

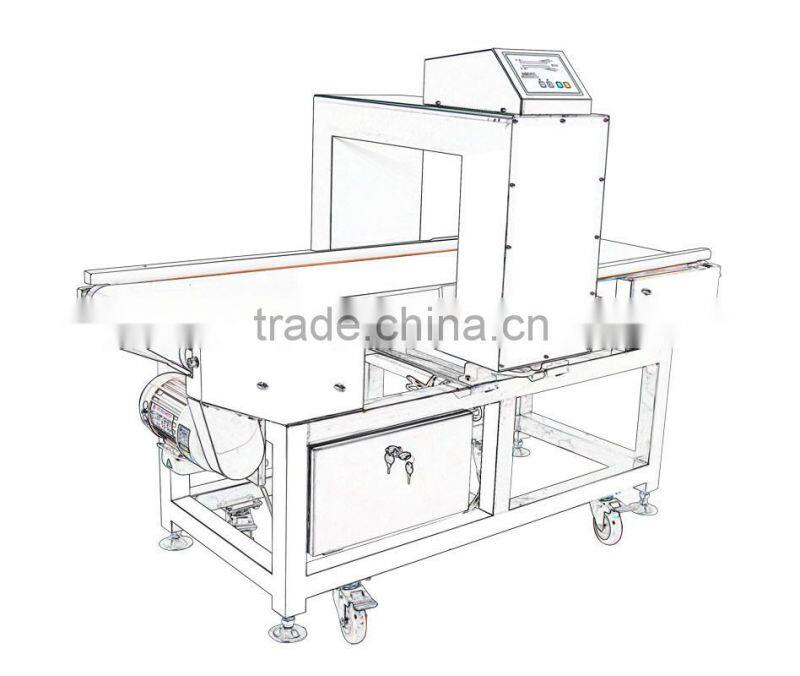

3. Structural representation.
a. Operation Control System
b. Electric Appliance Box
c. Clamping bolt
d. Frame
e. Footing
f. Universal Wheel
g. Conveyo
4. Parameters :
Model |
DLM-508K |
||||
Machine Specifications |
Conventional machines |
||||
Detection of channel width |
400mm |
||||
Detection of channel height |
100mm |
120mm |
150mm |
200mm |
|
|
Test Standard Sensitivity |
Fe |
Φ0.6mm |
Φ0.8 mm |
Φ1.0 mm |
Φ1.0 mm |
SUS |
Φ1.2 mm |
Φ1.5 mm |
Φ2.0 mm |
Φ2.5 mm |
|
Non-Fe metals |
Φ1.2 mm |
Φ1.5 mm |
Φ2.0 mm |
Φ2.5 mm |
|
Alarm Mode |
Conveyor stops automatically,issuing simultaneous audio and visual alarm |
||||
Machine Material |
304# Stainless Steel |
||||
Outside Size |
1560 *850 * 1050 (L*W*H) |
||||
Total Weight |
300KG |
||||
Voltage |
220V 50HZ 220W |
||||
Maximum load |
≤ 25KG |
||||
Belt Speed |
20-25 m/min |
||||

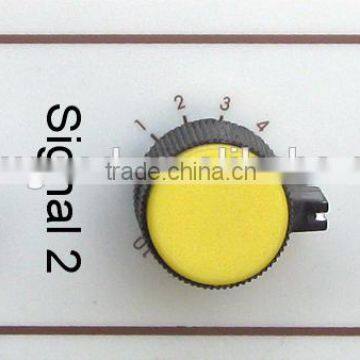

Sensitivity Adjustment method |
LCD Touch-Screen-Conditioning,Iron and non-Ferrous metals were set, in Chinese and English operation menu. |
||||
Total Height |
660MM |
||||
Operationg ambient temperature |
-10-45 Centigrade |
||||
Conventional machines are available today,the above argument is an empty machine testing standards measurement standards,the actual test parameters are subject to change depending on the different test objects. | |||||
Standard Exporting wooden case
Weight: About 300kg
FOB Shenzhne
Warranty:
(2)All Products have been well packed before shipping
(3)One Year warranty is proviced for all models. we will bear maintenance cost during warranty period.
(4)OEM Service ofference
Design service offered
Buyer label offered
Delivery:
(1)Sample and Min Order will be delivery within 2-3 working days after receipt of payment.
(2)For order over 500 pcs of sustomized order, please contact our sales to make sure the current inventory.
Shenzhen Ougood Technology Limited
We are a professional security products manufacturer that speciazed in metal detectors for
7 years,Located in Shenzhen,China.We organized the world-rate R&D dept. Certified by CE
and ISO 9001:2008 quality Management.Can excellent security products in lower costs for
Humans Life over the world.
Our main products line :
Handheld metal detectors
ground metal detector
Walk Through metal detector
Industiral auto conveying metal detector
Under car inspection equipment
OEM & ODM Design service.
Website: or
Inform us your need, we can service you at once.
