Help CenterCroissant Pastry Machine
Related Products
Specifications
1. The dough is sheeted gently.2. You switch to cutting speed.
3. You activate the cutters.
4. The dough sheet is cut freely

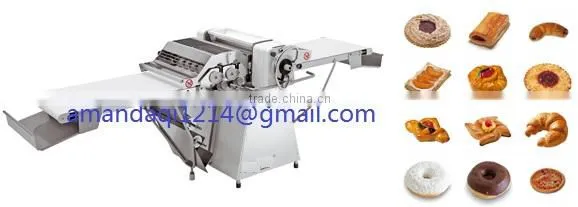

HYSMX-600 Automatic croissant bread production line cream puff machine/crisp bread line
Automatic pastry making machine croissant dough sheeter / semi-automatic croissant machine
In five simple steps, you process all types of dough to create fine pastries of first-class quality.
Efficiently, consistently and reliably.
1. The dough is sheeted gently.
2. You switch to cutting speed.
3. You activate the cutters.
4. The dough sheet is cut to the desired shape.
5. You fill and fold the pastries on the outfeed conveyor belt.
Low space requirement
Both machine tables can be folded up, which means the machine is easy to move, freeing up valuable space for other work.
Sturdy cutting station
The twin cutting station can be operated conveniently from the front. You adapt the cutting pressure individually to the dough. Counter-pressure rollers under the synthetic conveyor belt guarantee clean cutting with a minimum of pressure.
Simple cleaning
All Cutomats have smooth surfaces and practically no visible screws or bolts. Thanks to the modern design and the proven scraper system, you clean the machine quickly and easily without the need for tools.
Technical Data
| 1 | 2 | 3 | 4 | |
| SSO 675 C | SSO 677 C | SSO 685 C | SSO 687 C | |
| Substructure A-frame | in stainless steel | in stainless steel | in stainless steel | in stainless steel |
| Automatic flour duster | optional | optional | optional | optional |
| Table width | 650 mm | 650 mm | 650 mm | 650 mm |
| Width of conveyor belts | 640 mm | 640 mm | 640 mm | 640 mm |
| Table length overall | 3170 mm | 3470 mm | 3170 mm | 3470 mm |
| Roller length | 660 mm | 660 mm | 660 mm | 660 mm |
| Safety guard opening | 90 mm | 90 mm | 90 mm | 90 mm |
| Roller gap | 0,5 - 45 mm | 0,5 - 45 mm | 0,5 - 45 mm | 0,5 - 45 mm |
| Roller gap reduction | manual | manual | automatic and manual | automatic and manual |
| Speed of discharge conveyor | 60 cm/s | 60 cm/s | 60 cm/s | 60 cm/s |
| Cutting speed | variable | variable | variable | variable |
| Required floor space: | ||||
| - in working position, catch pans extended | 1215 x 3650 mm | 1215 x 3950 mm | 1215 x 3680 mm | 1215 x 3950 mm |
| - in resting position | 1215 x 1650 mm | 1215 x 1800 mm | 1215 x 1650 mm | 1215 x 1800 mm |
| Rated power | 1,5 kVA/0,75 kW | 1,5 kVA/0,75 kW | 1,5 kVA/0,75 kW | 1,5 kVA/0,75 kW |
| Supply voltage | 3 x 200-460V, 50/60 Hz | 3 x 200-460V, 50/60 Hz | 3 x 200-460V, 50/60 Hz | 3 x 200-460V, 50/60 Hz |
| weight | 250 kg | 260 kg | 260 kg | 265 kg |
