Help CenterPP PLASITC FILM BLOWING MACHINE
Related Products
Specifications
It is used for blowing the plastic film of PP,The cylinder and screw rods of extruder are all made from high-quality alloy steel··························································································

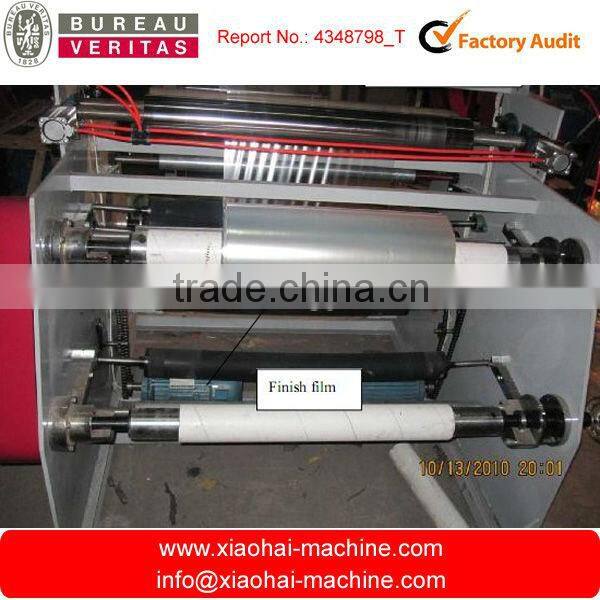

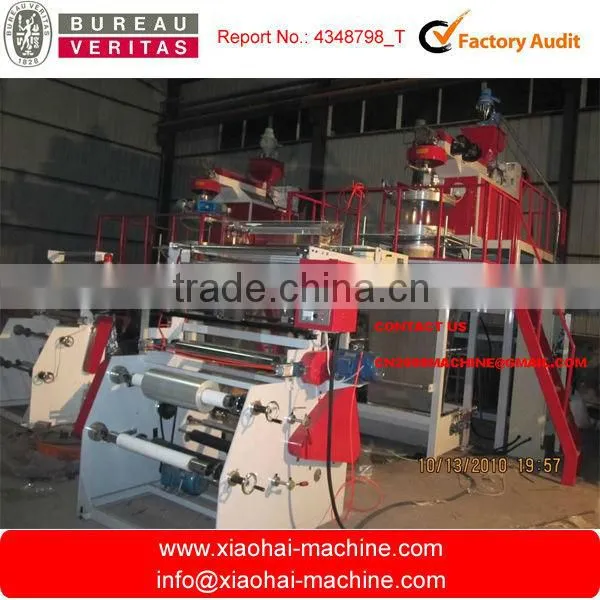

PP Plastic FIlm Blowing Machine
··························································································
Usage:
1) It is used for blowing Plastic film of Polypropylene (PP)
2) Which is used for all kinds of plastic membrane and packaging bag, such as clothes bags, children toy packaging and medicine packaging, etc
The cylinder and the stems of extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
Specification:
Model No. |
SJF-55 |
SJF-60 |
SJF-65 |
Screw Diameter |
55mm |
60mm |
65mm |
Screw Ratio |
L/D28:1 |
L/D28:1 |
L/D28:1 |
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
Power of Main Motor |
11KW |
15KW |
18.5KW |
Main Output |
40kg/h |
50kg/h |
60kg/h |
Max.Folding Width of Film |
600mm |
700mm |
800mm |
Single-side Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Total Power |
22Kw |
28Kw |
36Kw |
Weight of Machine |
2300kg |
2900kg |
3500kg |
Machine Dimension |
4600x1800x4000mm |
4800x2000x4000mm |
5000x2200x4200mm |
Remark:
We also have wider width machine,if you want to make wider width film,please feel free to contact us,we will provide you details.thanks.
