Specifications
China Sheet Feeding Type Paper Handbag Machine Manufacturer1. Easy operation
2.Low power consumption
3. Fully Automatic
China Sheet Feeding Type Paper Handbag Machine Manufacturer
1. Features:
AR-960 is a paper sheet feeding machine, it adopts auto paper feeding system to keep sheet paper feeding continuously.
It makes the paper bag tube forming as well as bottom gluing and pressing with higher precision
and speed. It adopts touch screen and PLC control system and is the best choice for making shopping
bags, gift bags, super market bags, food bags, etc.
It is with creasing function and adopts hotmelt glue system and can make many sizes of paper bags.
Suitable paper: kraft paper, white cardboard, art paper, laminated paper.
2.Technical Parameters:
Paper Gram Weight (g) | 90-200 |
Paper Width (mm) | 530-980 |
Paper Length (mm) | 300-650 |
Bag Width (mm) | 180-330 |
Bag Length (mm) | 200-450 |
Bag Bottom Width (mm) | 80-150 |
Output Speed (pc/min) | 40-70 |
Power (kw) | 7.5 |
Voltage ( v) | 380 |
Machine Weight (kg) | 13000 |
Machine Dimension (mm) | 13000*1700*1500 |
3. Process:
Bag Top Folding → Paper feeding → Gluing → Side Pasting → Tube Formation →
Tube → Bottom Folding → Gluing → Bottom Pasting → Bag Output

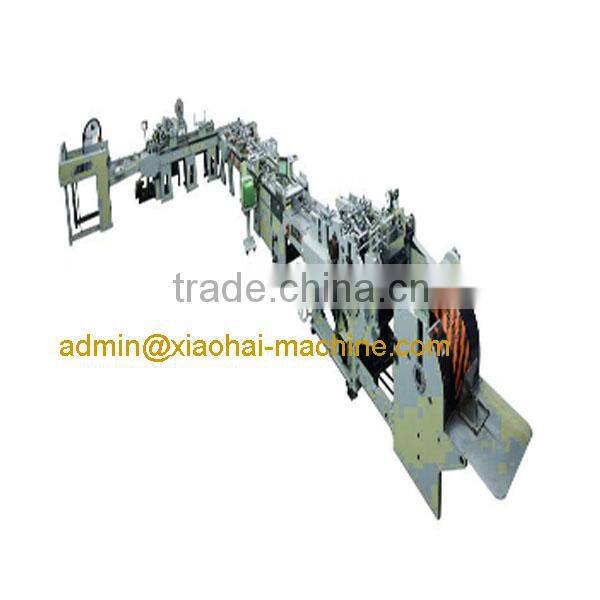

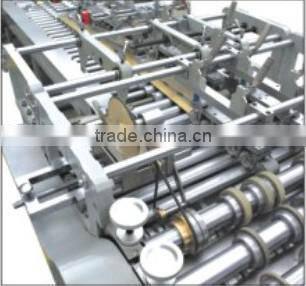

4.Machine Pictures:

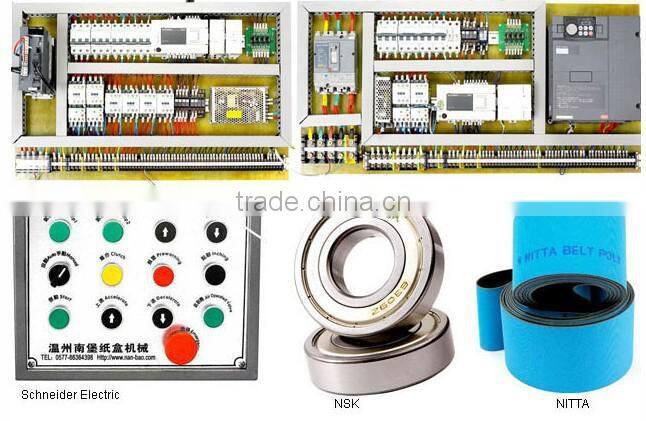

Optional With Electric System is available

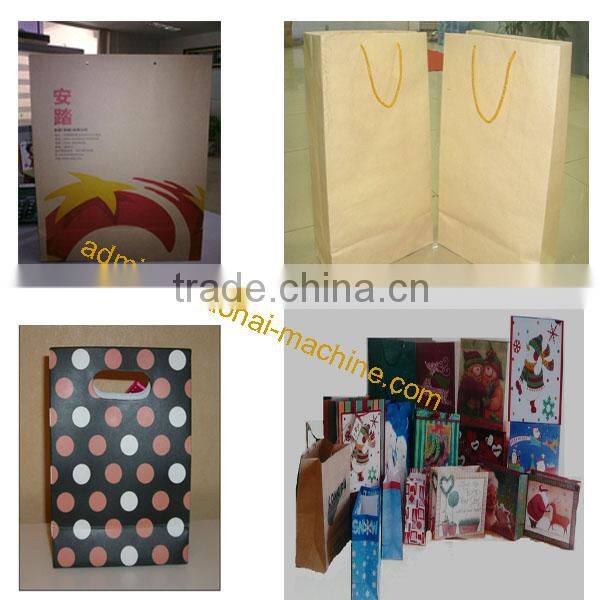

5. Sample Pictures
6. Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag
making machine, flexo printing machine, rope making machine and handling making
machine etc. We have both paper bag making machine with roll feeder and sheet feeder.

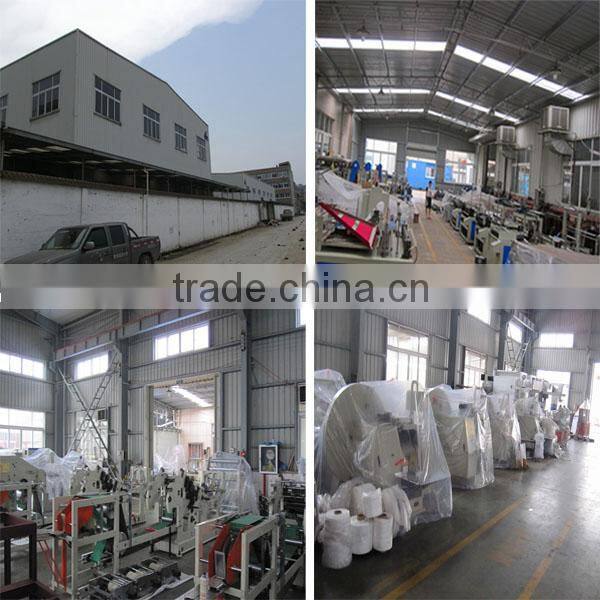

1. Factory Show:
2. Certificates
3. Advantages&Service
1 We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2 Machines with good quality in one year, life-long maintenance.
3 We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4 We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5 Undertake various non-standard machinery, solve the customers' requirements.
4.Contact Information
Regarding this High Efficiency Paper Bag Making Machine,
any further information can feel free to contact Jenny.
Contact Person: Jenny Xu
Skype: paperbag-machine
Mobile:+86-15167722977 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
