Specifications
High Speed Paper Bag Forming Machine in Zhejiang Wenzhou1. Easy operation
2.Low power consumption
3. Fully Automat
High Speed Paper Bag Forming Machine in Zhejiang Wenzhou
1. Features:
Paper Bag Making machine can produce the square bottom paper bag in conjunction
with overseas advanced technology. The machine has many advantages such as high
speed,high productive efficiency and wide-rang adjustment.
It is an ideal machine for producing Square Bottom Shopping bags to pack gifts, cosmetic, etc.
2. Advantages:
1)Suited for 60-180gsm roll sheet paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system
3.Technical Parameters:
Paper Weight |
60-180g/m2 |
Tube Length |
230-580mm |
|
Bag Length
|
155-505mm |
Bag Width |
80--290mm |
Bottom Width |
60-160mm |
Max Production Speed |
220pcs/min |
Total Power |
15KW |
Power Voltage |
380V,50/60HZ |
Machine Dimension(L*W*H) |
8600*2500*1800mm |
Total weight |
8500KG |

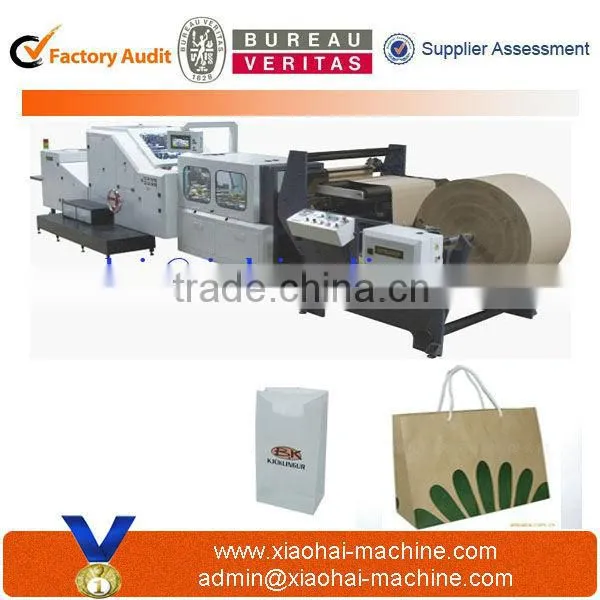

4.Machine Pictures:
5. Sample Pictures:
6. Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag making
machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1. Factory Show:
2. Certificates
3. Advantages&Service
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2)Machines with good quality in one year, life-long maintenance.
3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
4. Contact Information:
Regarding this High Efficiency Paper Bag Making Machine,
any further information can feel free to contact Jenny.
Contact Person: Jenny Xu
Skype: paperbag-machine
Mobile:+86-15167722977 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
Web:
Send Inquiry to This Supplier
