Specifications
paper bag making machine with roll feeder1.Easy operation
2.Low power consumption
3.CE
paper bag making machine with roll feeder
1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags with plastic window or without plastic window etc.
2. Advantages:
1)Machine use three sets High-precision professional paper bag making machine servo motor control. Machine operation easy, making stable, save cost , improve production efficiency.
2)Automatic count that according require to set quantity,automatic alarm and stop working when it arrived set quantity, clear easy , simple and accuracy.
3)Machine computer use Taiwan Weinview human-computer interface LDC display, PLC control system of microcomputer;achieve artificial intelligent control equipment, operation easy , easy to understand.
4)Machine feeding unit use pneumatic automatic loading function, improve production technical accuracy.
5)Machine have Hot-gluing unit and paper window unit that paper bag with film. The Hot-gluing equipment use Robatech from Switzerland.
3.Technical Parameters:
Paper Weight |
30-80g/m2 |
Bag Length |
140-500mm |
Bag Width |
70-260mm |
Max width of paper roll |
800mm |
Normal Speed |
260pcs/min |
Total Power |
18kw |
Power Voltage |
380v,50/60 HZ, 3 phases |
Total Weight |
4500kg |
Machine Dimension(L*W*H) |
8200*1900*1900mm |
PS:Machine use alone computer operation box

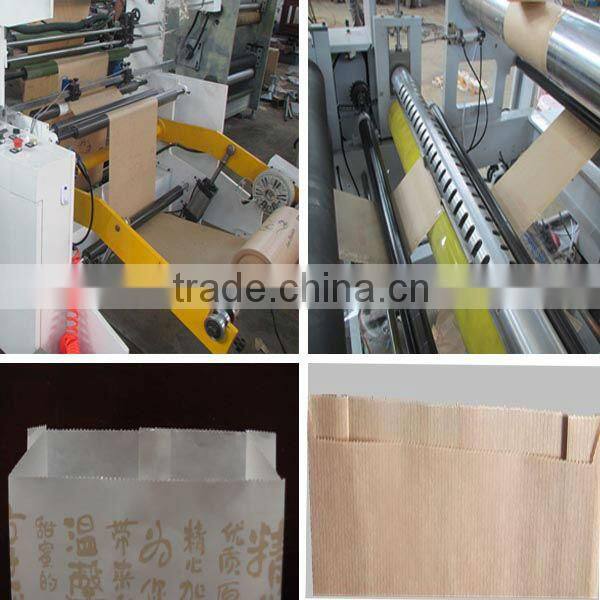

4.Machine Pictures:

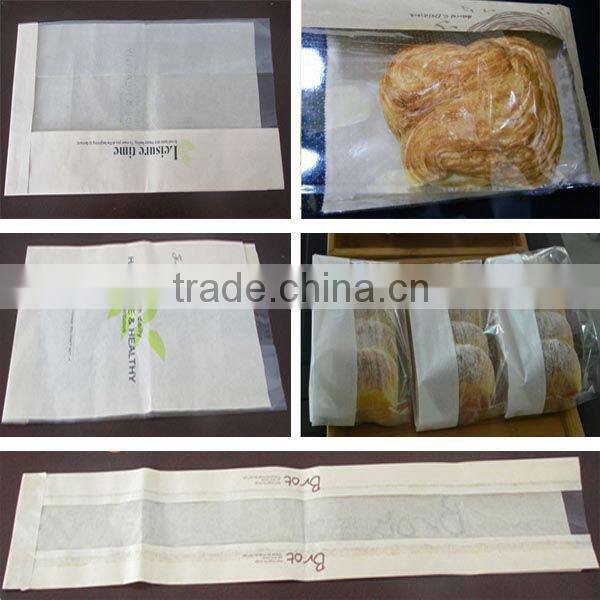

5.Sample Pictures:
6.Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc. We have both paper bag making machine with roll feeder and sheet feeder.
1. Factory Show
2.Certificates
3.Advantages&Service
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries
2)Machines with good quality in one year, life-long maintenance
3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
