Wenzhou Ruian White Craft Sharp Bottom Paper Bag Machine
- 35 Set / Sets per Month
- NINGBO
- T/T
-
CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
-
20 years manufacturer, automatic hay and straw baling machine
-
more than 20 years factroy supply CE certificated used clothes and textile baling machine
-
more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
-
more than 20 years factory supply plastic baler machine
-
more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Food | Packaging Type: | Bags |
Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380v, 50/60HZ, 3 phases | Power: | 10kw | Place of Origin: | Zhejiang, China |
Brand Name: | XIAOHAI | Model Number: | CY-400 | Weight: | 2500KG |
Dimension(L*W*H): | 4000*2100*1900 | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Wenzhou Ruian White Craft Sharp Bottom Paper Bag Machine1. Easy operation
2.Low power consumption
3. Fully Automatic
Wenzhou Ruian White Craft Sharp Bottom Paper Bag Machine
1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper,
edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags
and Mcdonald's bags etc.
2. Advantages:
1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system
3.Technical Parameters:
Paper Weight | 40-80g/m2 |
Bag Length | 160-420mm |
Bag Width | 70-260mm |
The width of paper roll | 260-720mm |
Speed | 100-400pcs/min |
Total Power | 10kw |
Power Voltage | 380v,50/60 HZ, 3 phases |
Total Weight | 2500kg |
Machine Dimension(L*W*H) | 400*2100*1900mm |
4.Configuration Brand and details:
Name andSpecification | Quantity | Brand, Country |
Servo Motor | two sets | YASKAWA, Janpan |
PLC | 1pc | Delta ,Taiwan |
Touch Screen | 1pc | Weinview ,Taiwan |
Photo-cell | 2pc | Sick, Germany |
Web Edge Control(EPC) | 1pc | China |
Frequency Converter(Inverter) | 1pc | China |

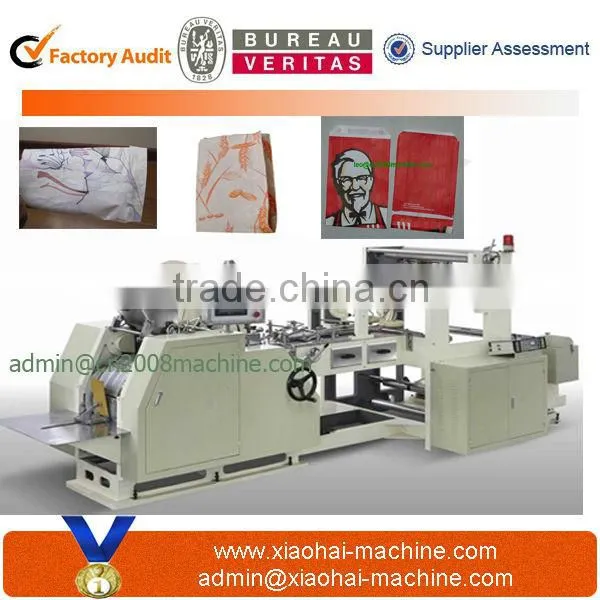

5.Machine Pictures:

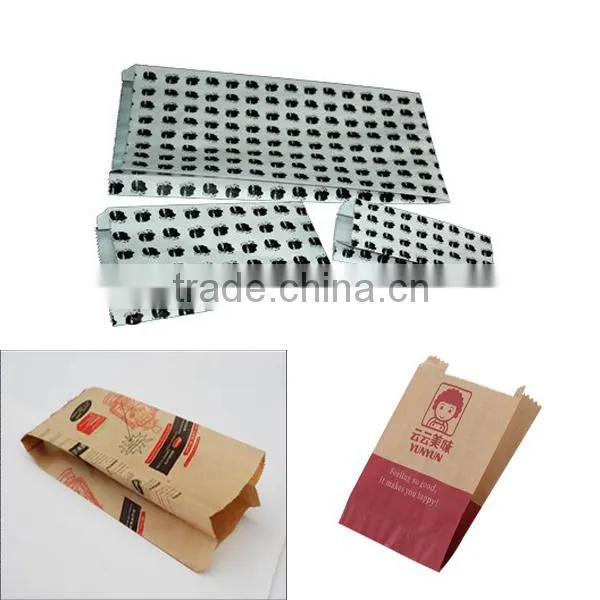

6. Sample Pictures:
7. Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag making
machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1. Factory Show:
2. Certificates
3. Advantages&Service
1 We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2 Machines with good quality in one year, life-long maintenance.
3 We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4 We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5 Undertake various non-standard machinery, solve the customers' requirements.
4.Contact Inforation
Regarding this High Efficiency Paper Bag Making Machine,
any further information can feel free to contact Jenny.
Contact Person: Jenny Xu
Skype: paperbag-machine
Mobile:+86-15167722977 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
Web:
