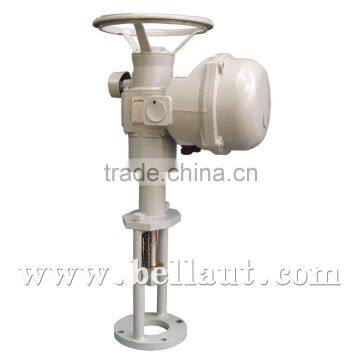

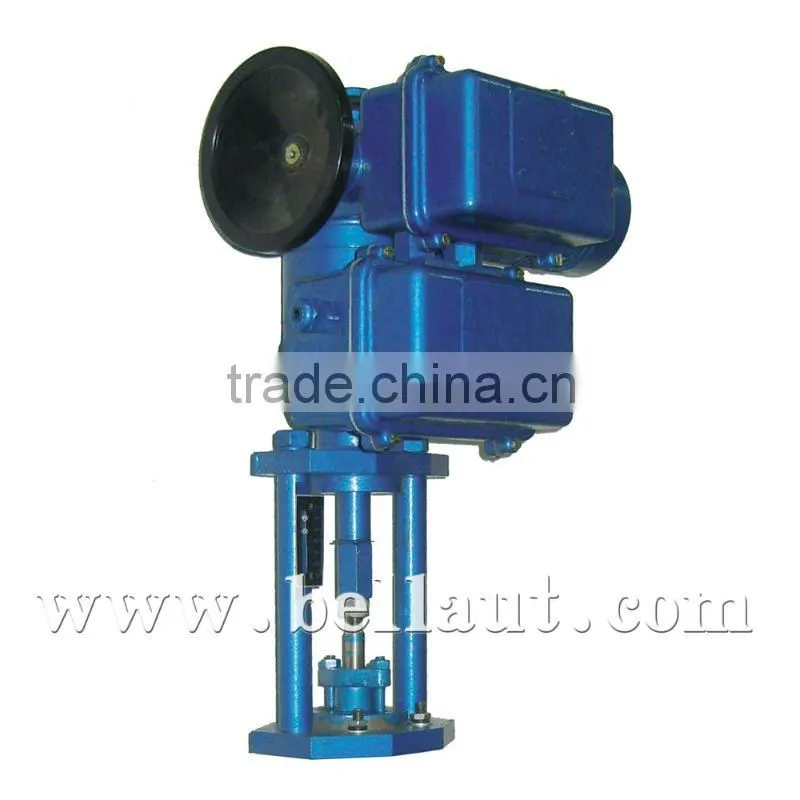

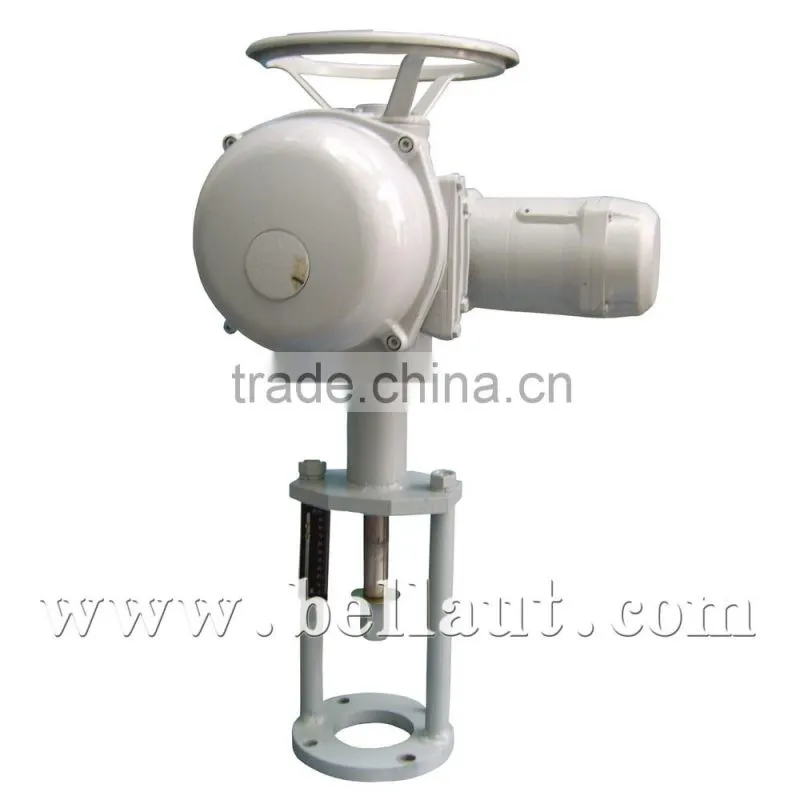

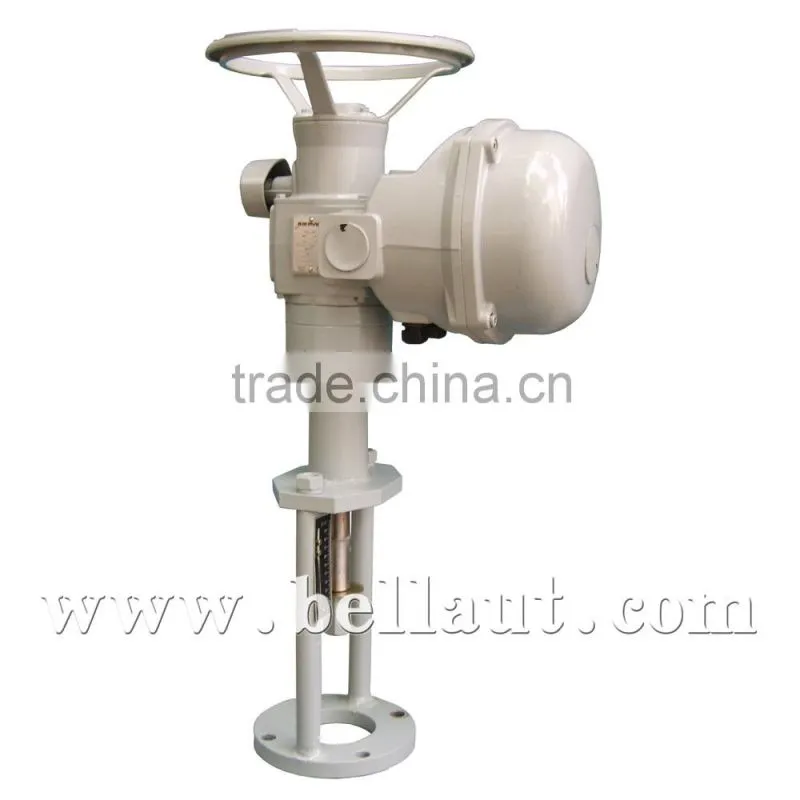

ip68 linear actuator,linear actuator ip68
Summary
The main technical parameters of the electric actuator
The following technical parameters are mainly applied to the proportional modulating type electric actuator.Item1,2,3,4,5and 6 are not suitable for the remote-control type electric actuator and switch type electric actuator.
1.The input signal: 4--20mA DC
2.The input resistance: 250 ohm
3.Input passage: 1
4.Basic error: 1%, 2.5%
5.Deviation: 1.5%
6.Deadline: 0.5%--3% continuously adjustable
(according to the indication of system)
7.Damping characteristic: No-oscillating
8.power supply: three-phase 380V~50Hz, single-phase 220V~50Hz for selected
9.Working conditions: Temperature: Integral-type -10°C-- +55°C, separate-type -25°C -- +70°C
Humidity: ≤85%The surrounding air does not have the corrosive elements
10.Protection rank: it conforms to the IEC145 IP65 standards. (Excluding the separate-type GAMX with waterproofing and dustproof functions fixed in rooms), bus type and intelligent type IP67.
11.The cut-off signal protection: It can be divided into all-on, all-off and home position according to your instructions.
Generally it is set into the home position when it is manufactured.
Linear
SD series type |
|
Push N |
Rated travel mm |
Rated speed mm/s |
A+Z64/volt speed travel control type |
6400 |
10 |
0.6,1.2 |
16 |
0.6,1.2,1.8 |
||
25 |
0.6,1.2,1.8 |
||
40 |
0.6,1.2,1.8 |
||
60 |
1.2,1.8 |
||
|
A+Z100/
|
10000 |
16 |
0.6 |
25 |
0.6,1.2 |
||
40 |
0.6,1.2,1.8 |
||
60 |
1.2,1.8 |
||
|
A+Z160/
|
16000 |
25 |
1.2 |
40 |
1.2,1.8 |
||
60 |
1.2,1.8 |
||
100 |
1.2,1.8 |
||
|
A+Z250/
|
25000 |
40 |
1.2,1.8 |
60 |
1.2,1.8 |
||
100 |
1.2,1.8 |

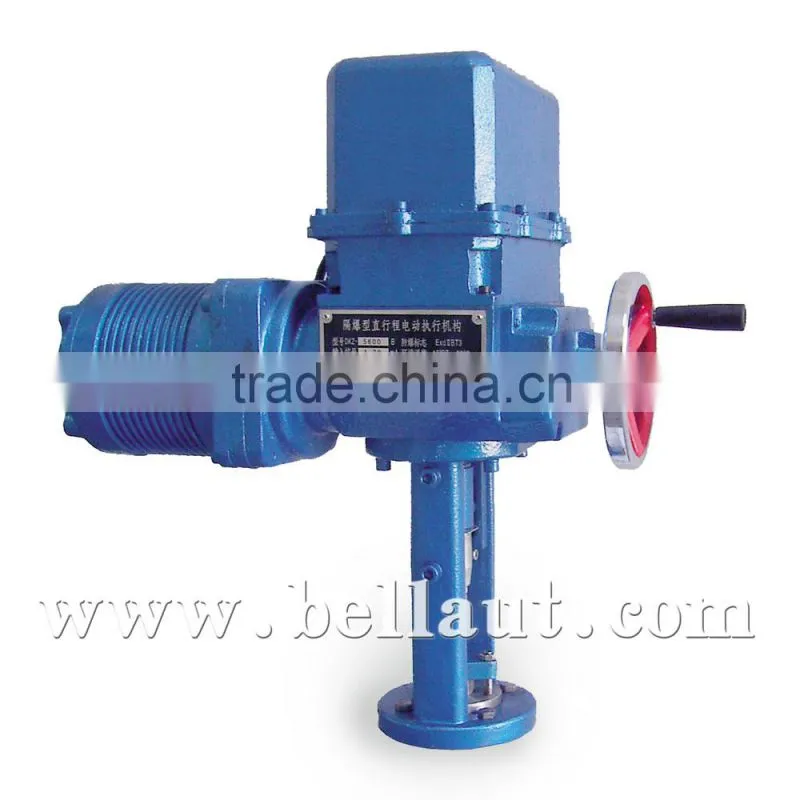

DKZ linear electric actuator
|
Type 0—10mA |
Type 4—20mA |
Travel mm |
Output Thrust N |
Travel time S |
DKZ-410 |
DKZ-4100 |
10 |
4000 |
7.5 |
DKZ-420 |
DKZ-4200 |
16 |
12 |
|
DKZ-430 |
DKZ-4300 |
25 |
18.75 |
|
DKZ-540 |
DKZ-5400 |
40 |
6400 |
32 |
DKZ-550 |
DKZ-5500 |
60 |
48 |
|
DKZ-560 |
DKZ-5600 |
100 |
16000 |
60 |
