Standard Pneumatic Actuator at Reasonable Price , Small Lot Order Available
- Xingang port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Pneumatic | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Base | Place of Origin | Tianjin, China | |
| Model Number | BGT52,BGT63,BGT75 | Brand Name | BELL | |
| Application | General |
Product Description

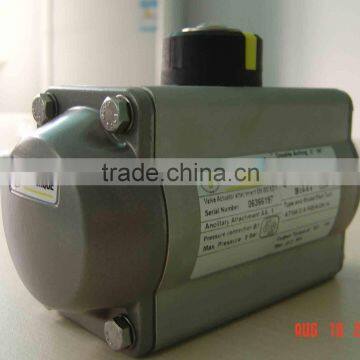

Standard pneumatic actuator at reasonable price , small lot order available
Summary
Pneumatic quarter-turn actuators are divided into two categories, including gear rack structure and fork structure, namely BGT series and BAW series. They are actuating device that turn on/off Quarter-turn valves like ball valves, butterfly valves. Among which BAW series can drive high torque valve.
According to users’requirements, devices like solenoid valve, positioners, reply device, filter regulator, limit switches and manually operated devices can be mounted on the pneumatic actuators.
The main technical parameters
Applicable medium:Clean, dry, not corrosive compressed air
Air pressure:0.4~0.7MPa
Operating ambient temperature:Standard Type:-20°C~+80°C
High temperature Type:-20°C~+180°C
Rotation Angle:90°±3°
Output torque:BGT double-acting actuator sees Sheet 1
BGT spring return actuator sees Sheet 2
Accessories: positioner, Air Filter Regulator, lock up valve, travel switch, handwheel, etc...
Model | Output torque(Nm) | |||
0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | |
BGT52×90° | 15.6 | 19.5 | 23.4 | 27.3 |
BGT63×90° | 23.2 | 29 | 34.8 | 40.6 |
BGT75×90° | 40 | 50 | 60 | 70 |
BGT83×90° | 56 | 70 | 84 | 98 |
BGT92×90° | 77.6 | 97 | 116.4 | 135.8 |
BGT110×90° | 112.8 | 141 | 169.2 | 197.4 |
BGT118×90° | 168 | 210 | 252 | 294 |
BGT127×90° | 220 | 275 | 320 | 385 |
BGT160×90° | 440 | 550 | 660 | 770 |
BGT210×90° | 948 | 1185 | 1422 | 1659 |
BGT254×90° | 1740 | 2175 | 2610 | 3045 |
BGT255×90° | 2172 | 2715 | 3258 | 3801 |
BGT300×90° | 3136 | 3921 | 4705 | 5489 |
BGT350×90° | 4981 | 6226 | 7471 | 8717 |
BGT400×90° | 7900 | 9875 | 11850 | 13825 |

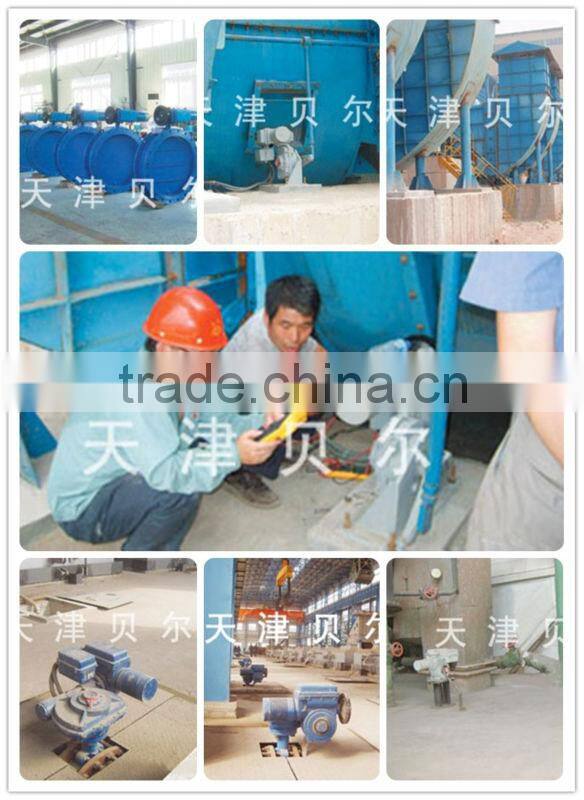

Application
Certificate
Our office and products packaging
Our main products

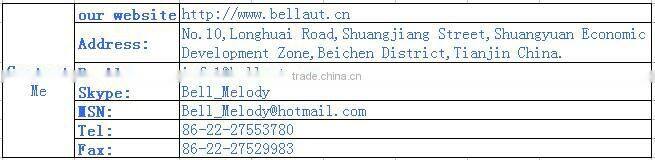

Contact Us
