Specifications
Models to choose from a variety of input voltagePrecise control of output
Excellent quality
Cost-effective
Summary
This motor controller is low voltage, four-quadrant regeneration and pulse-width
modulation speed controlling system. The MCU (Microcontroller Unit) intelligent control
makes quick response speed, smooth running, reliable operation and complete
proportions, etc.
PWM( pulse width modulation)
The PWM makes motor low noise, high efficiency and little maintenance. Service life of
DC motor can be fatherly increased.
Four-quadrant regeneration in operating mode.
Regenerative braking function
External directional (or reversing) contactor is not required and components or parts
of motor can be protected from superheated or burnout.

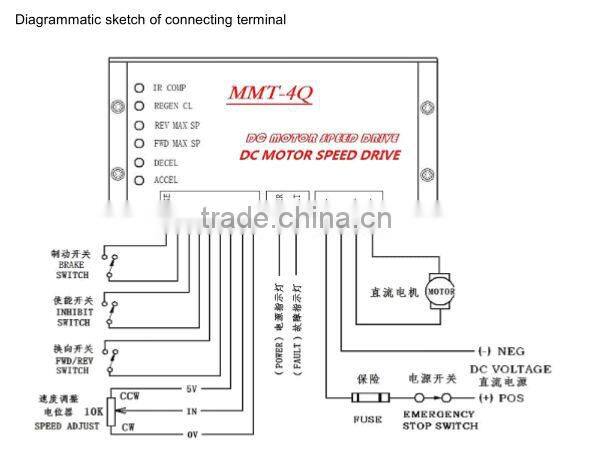

Enable/Brake/Reversing terminal
One of above functions can be achieved with help of passive switching value or open
(or broken) circuit of transistor collector.
Status Light
Power light and various fault warning lights make the status of motor controller visible.
Keyaa MMTdc Motor Controller User’’ss Manual
Speed value of Forward or Reverse can be set respectively.
Value of output current can be set.
Value of brake current can be set.
Torque compensation
Double closed loop PI regulation(Voltage and current)
Standard analog signal
Analog quantity (0-5V) or potentiometers are suitable for controlling.
Overvoltage or under voltage protection
Overheating protection
When temperature is overtop, motor controller will reduce output current to prevent
from superheated with help of decision circuit .if the temperature is still overtop, the
controller will stop output and protect motor and motor controller.
2. Technical performance
1. PWM (pulse width modulation)
2. Speed ratio: 1:80
3. Speed control mode: potentiometer (10KΩ/2W)
4. Input impedance:≥50K
5. Speed accuracy: 1 %
6. Soft start time: 0.2-20 seconds
7. Ambient temperature: --10°C~+60°C
8. Ambient humidity: Relative humidity≤80RH (non condensing)
9. Instantaneous short circuit protection (50us)

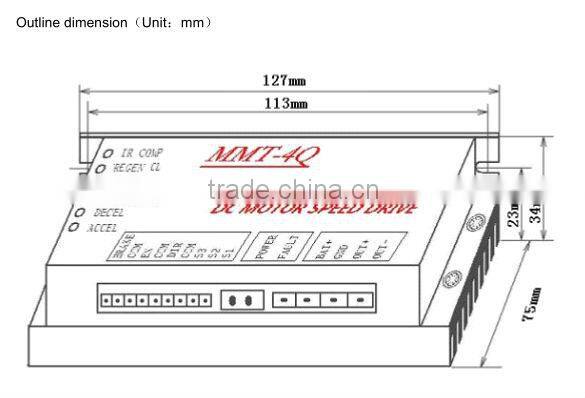

10. Outline dimension: 127*34*75mm
11. Weight: 380g
13. Adopted SMT technology makes motor controller small size.
14. Current setting and limiting protection
15. ACCEL/DECEL
16. Quick stopping
17. Huge torque at low speed start up.
18. Remote start (run) and stop
19. This motor controller is suitable for lanthanide (rare earth)motor, permanent magnet
motor and separately excited motor.
