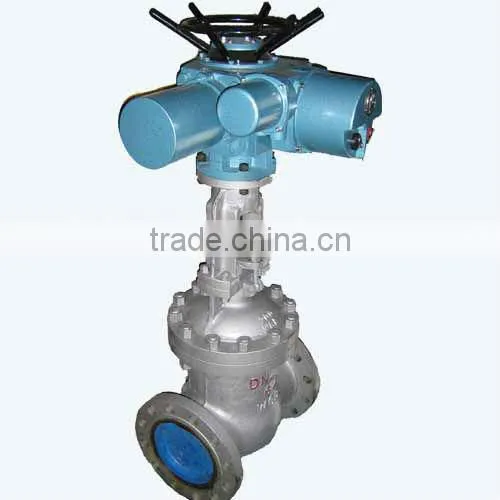

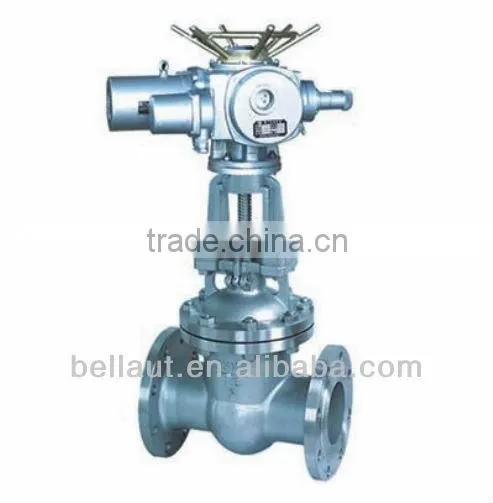

electric operated Wedge type gate valve flange connected DN 50 PN 160
Specification
· It’s a linear motion valve, general match with on-off type Multi-turn actuator.
· Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to turn on and turn off the fluid medium in the pipe.
· Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.
Valve body parameters
design standard |
GB/T12234 |
body material |
cast steel |
Drive mode |
electric |
packing |
Asbestos and flexible graphite |
sealing face |
alloy steel or hard alloy |
nominal pressure |
PN1.6~20.0MPa |
medium |
water,oil,steam etc |
temperature |
≤425℃ |
Electric Actuator data:
Voltage: 380V AC
Frequency: 50Hz
Type: on-off/Modulating
Input signal: switching value/4~20mA
Output signal: switching value/4~20mA
Fieldbus: Profibus
Over heat protection
Torque switch / limit switch
