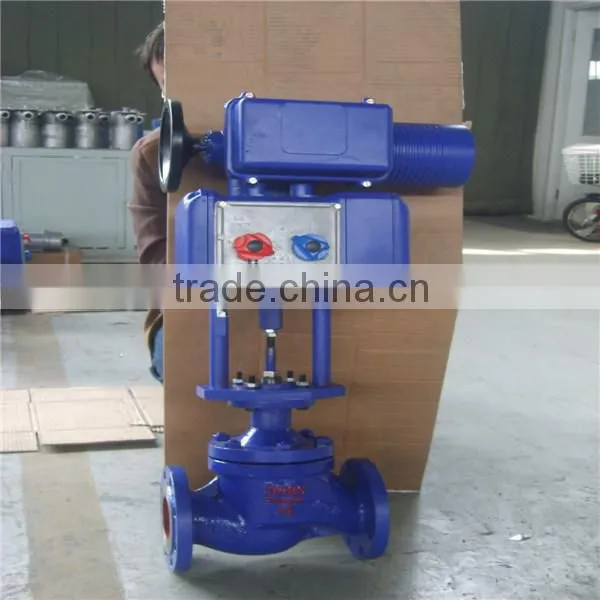

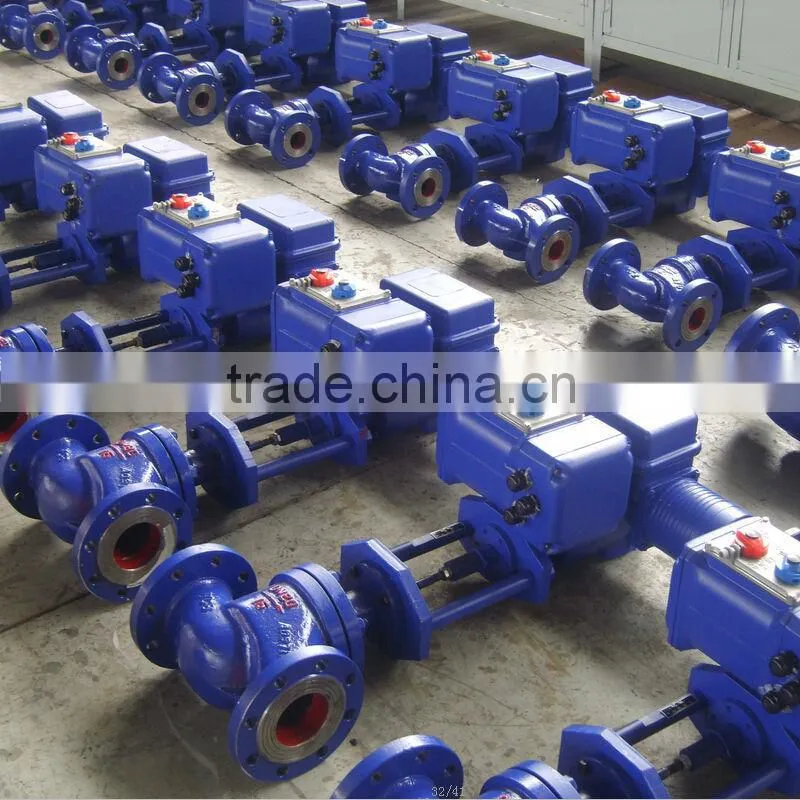

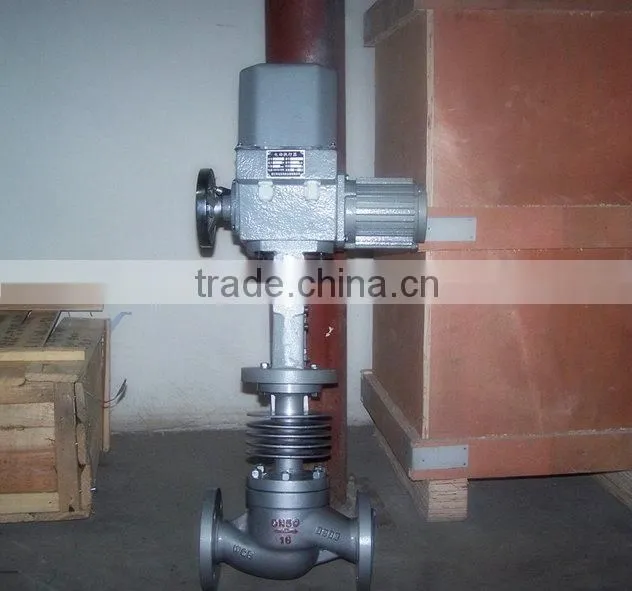

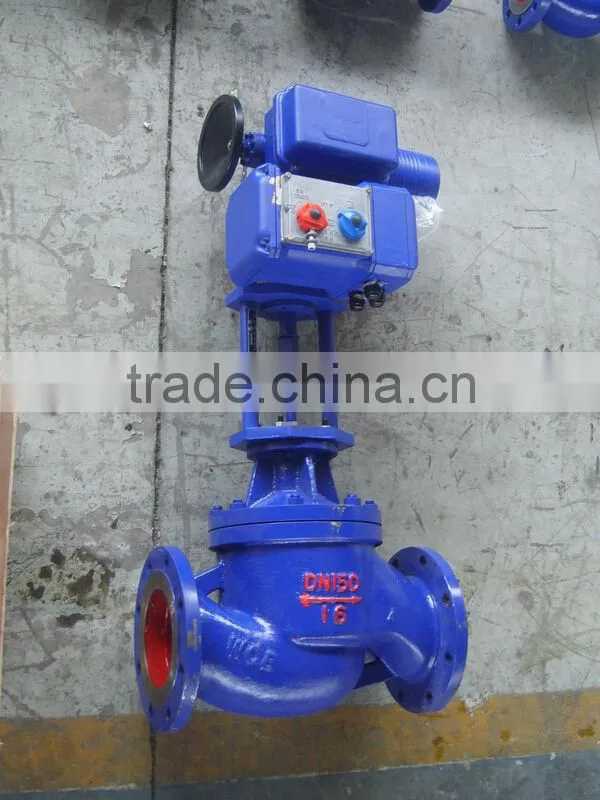

CONTROL VALVE electric actuator Valve Position (4-20 mA)
Summary
This series is suitable to the regulation which requests high precision, during the flux of control liquid.
Electric single-seated, double-seated and sleeve regulating valves are composed of common DKZ series or imported electric actuator series and valve body which valve core is single-seated type, double-seated type or sleeve type.
It has a lot of control way, flow characteristic equal percentage and linearity .
Parameters of Automatic Control Valve
The material of valve body: cast iron, cast steel, cast stainless steel and so on.
Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa
Connecting type: flange coupling
Temperature range: normal temperature -20---230ºC the thermal slug type -60---450ºC
Operation form: automatic open or close
Flow characteristic: equal percentage, linearity
Leakage: single-base valve: 0.01* rating Kv
double-base valve, sleeve valve: 0.5%* rating Kv
ZAZP,BELLAZP single seated automatic control valve specification table
Nominal bore mm |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
||||
Valve core diameter mm |
10 |
12 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
Rated flux coefficient Kv |
1.2 |
2 |
3.2 |
5 |
8 |
12 |
20 |
32 |
50 |
80 |
120 |
200 |
280 |
450 |
|
Nominal pressure Mpa |
1.6 4 6.4 |
||||||||||||||
|
Match DKJ actuator
|
specification |
DKZ-4100 |
DKZ-4200 |
DKZ-4300 |
DKZ-5400 |
DKZ-5500 |
|||||||||
Differential pressure Mpa |
6.4 |
4.0 |
4.0 |
4.0 |
3.5 |
2.3 |
2.0 |
1.42 |
1.4 |
0.91 |
0.55 |
0.35 |
0.26 |
0.17 |
|
Match introduced actuator |
specification |
A+Z64 |
|||||||||||||
Differential pressure Mpa |
6.4 |
6.4 |
4.0 |
4.0 |
3.7 |
2.5 |
2.2 |
1.6 |
1.5 |
1.0 |
0.6 |
0.4 |
0.3 |
0.2 |
|
Rated travel mm |
10 |
16 |
25 |
40 |
40 |
||||||||||
Flux characteristic |
Equal percentage Beeline |
||||||||||||||
Function style |
Volt on Volt off |
||||||||||||||
Temperature range |
Normal temperature: -20 — +200 degree abstraction of heat: -60 — +450 degree |
||||||||||||||
