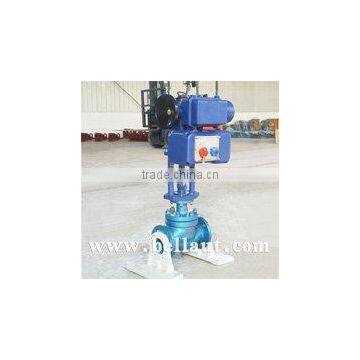

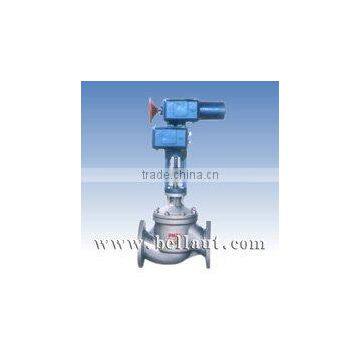

Globe Type Electric Control Valve

Name: Globe Type Electric Control Valve
Brand: BELL
Availability: InStock

FOB Price

US$ 100 - 800 / Set

1 Set(Min. Order)

Port Tianjin China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Control
Pressure	Medium Pressure	Power	Other, Electric
Material	Casting	Temperature of Media	Normal Temperature
Media	Gas	Port Size	1''-8''
Place of Origin	Tianjin, China	Model Number	ZAZP
Brand Name	BELL	Application	General

Product Description

Globe type electric control valve

Summary

This series is suitable to the regulation which requests high precision, during the flux of control liquid.

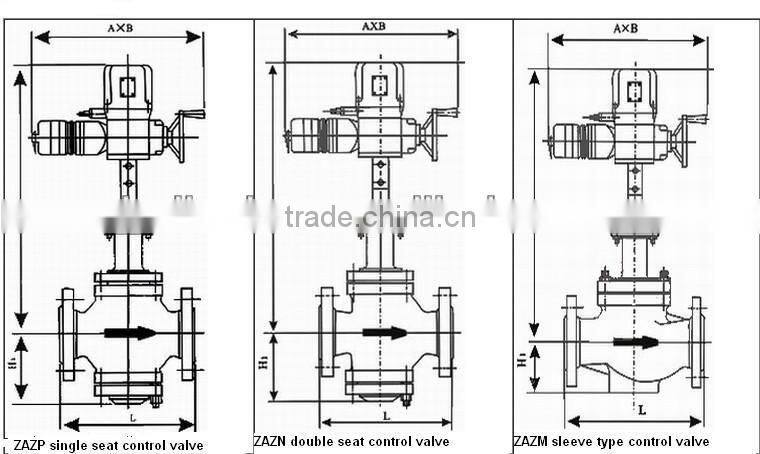

Electric single-seated, double-seated and sleeve regulating valves are composed of common DKZ series or imported electric actuator series and valve body which valve core is single-seated type, double-seated type or sleeve type.

It has a lot of control way, flow characteristic equal percentage and linearity .

Parameters of Automatic Control Valve

The material of valve body: cast iron, cast steel, cast stainless steel and so on.

Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa

Connecting type: flange coupling

Temperature range: normal temperature -20---230ºC the thermal slug type -60---450ºC

Operation form: automatic open or close

Flow characteristic: equal percentage, linearity

Leakage: single-base valve: 0.01* rating Kv

double-base valve, sleeve valve: 0.5%* rating Kv

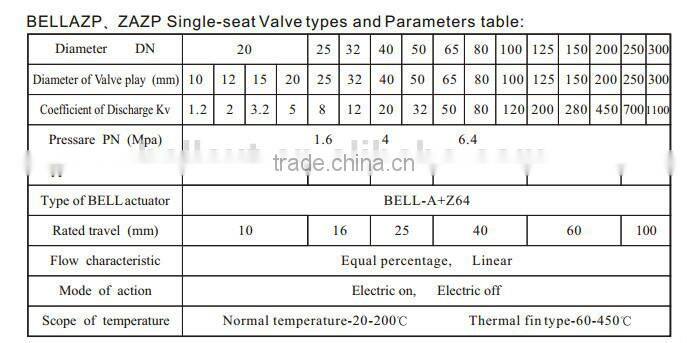

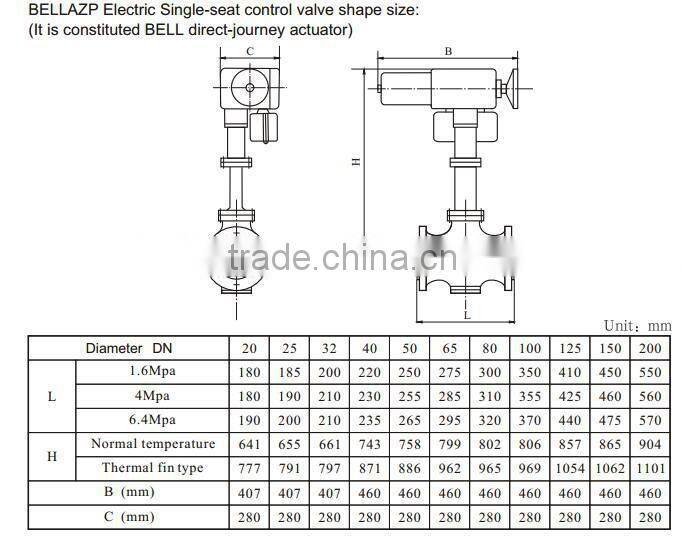

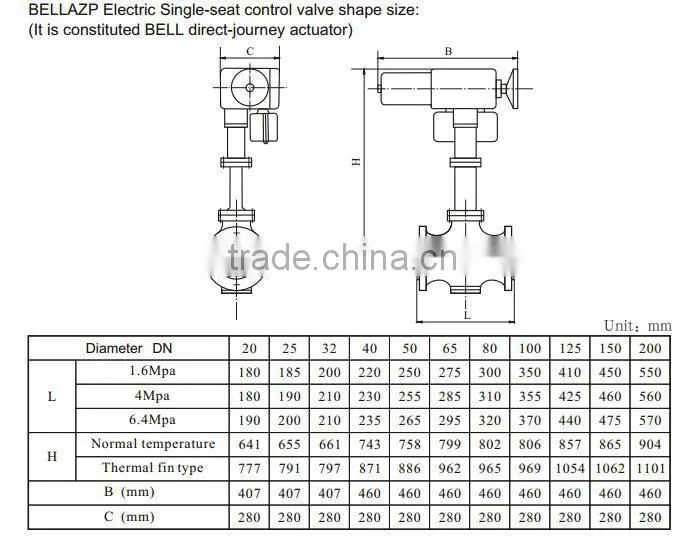

ZAZP,BELLAZP single seated automatic control valve specification table

Nominal bore mm		20				25	32	40	50	65	80	100	125	150	200
Valve core diameter mm		10	12	15	20	25	32	40	50	65	80	100	125	150	200
Rated flux coefficient Kv		1.2	2	3.2	5	8	12	20	32	50	80	120	200	280	450
Nominal pressure Mpa		1.6 4 6.4
Match DKJ actuator	specification	DKZ-4100				DKZ-4200		DKZ-4300		DKZ-5400			DKZ-5500
Match DKJ actuator	Differential pressure Mpa	6.4	4.0	4.0	4.0	3.5	2.3	2.0	1.42	1.4	0.91	0.55	0.35	0.26	0.17
Match introduced actuator	specification	A+Z64
Match introduced actuator	Differential pressure Mpa	6.4	6.4	4.0	4.0	3.7	2.5	2.2	1.6	1.5	1.0	0.6	0.4	0.3	0.2
Rated travel mm		10				16		25		40			40
Flux characteristic		Equal percentage Beeline
Function style		Volt on Volt off
Temperature range		Normal temperature: -20 — +200 degree abstraction of heat: -60 — +450 degree
