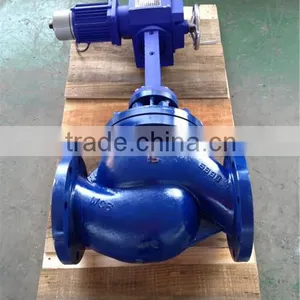

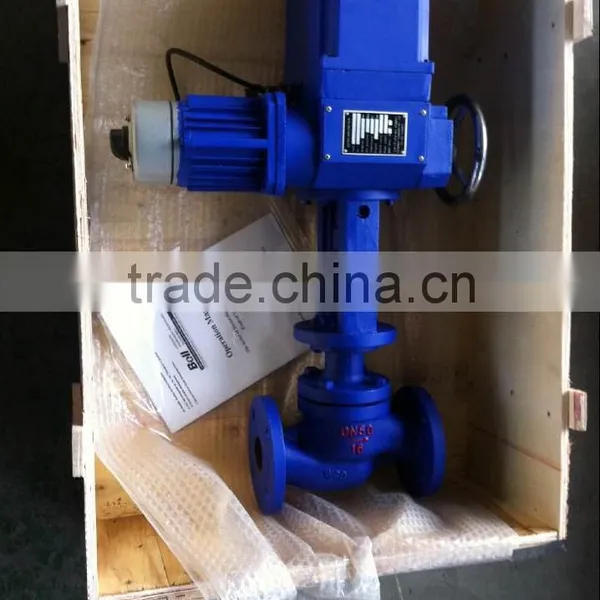

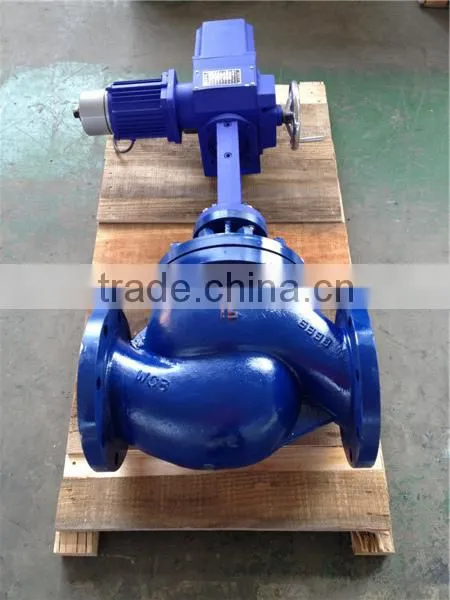

electric regulating control valve for water control/globe valve

Summary

This series is suitable to the regulation which requests high precision, during the flux of control liquid.

Electric single-seated, double-seated and sleeve regulating valves are composed of common  DKZ series or imported electric actuator series and valve body which valve core is single-seated type, double-seated type or sleeve type.

It has a lot of control way, flow characteristic equal percentage and linearity .

Parameters of Automatic Control Valve

The material of valve body: cast iron, cast steel, cast stainless steel and so on.

Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa

Connecting type: flange coupling

Temperature range: normal temperature -20---230ºC  the thermal slug type -60---450ºC

Operation form: automatic open or close

Flow characteristic: equal percentage, linearity

Leakage: single-base valve: 0.01* rating Kv

                  double-base valve, sleeve valve: 0.5%* rating Kv

ZAZP,BELLAZP single seated automatic control  valve specification table

Certificate

Why choose us?

1.We manufacture variety of control valves and actuators for 40 years.
2.High quality and strictly produce control.
3.We have ISO9001,Europe CE etc certificates
