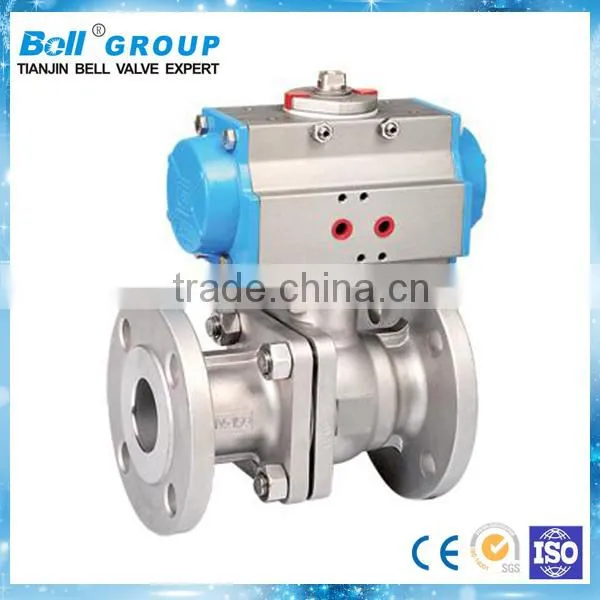

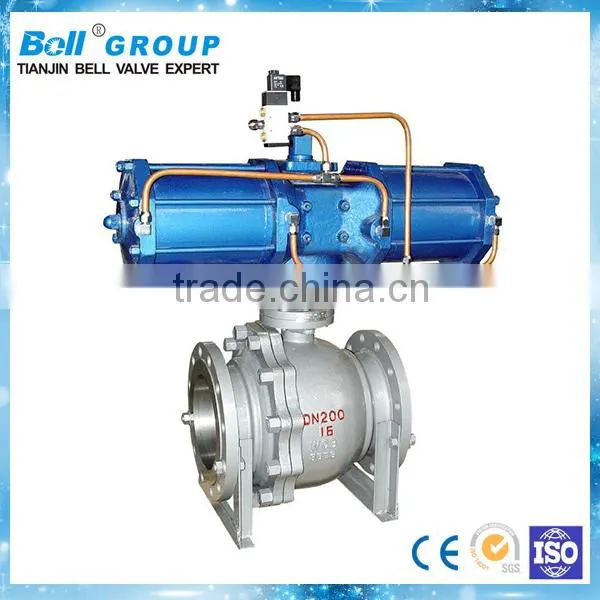

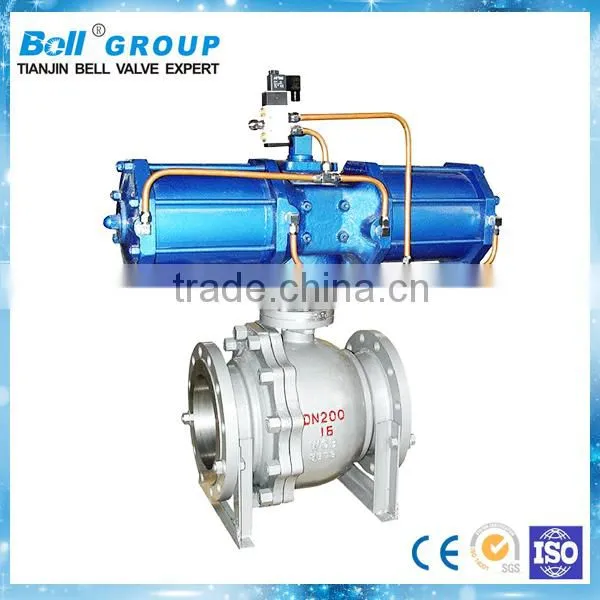

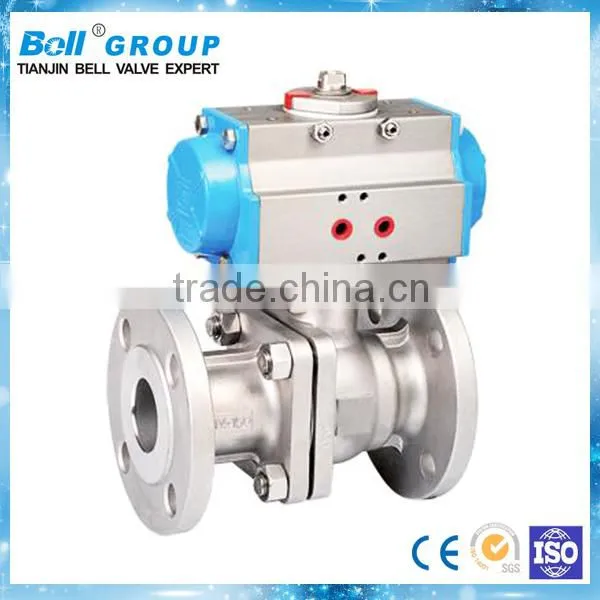

pneumatic actuator equipped with electrical positioner as a regulating ball valve
Feature
· BGTQ series pneumatic ball valve composed by the BGT series actuator and ball valve,
it is smaller diameter pneumatic ball valve.
· BAWQ series pneumatic ball valve composed by the BAW series actuator and ball valve,
it is smaller diameter pneumatic ball valve.
· According to user requirements, can be equipped with positioners, air filter regulator, limit switch, hand wheel, solenoid valve etc attachment.
·The pneumatic actuator equipped with solenoid valve, as a cut off valve.
· The pneumatic actuator equipped with electrical positioner,as a regulating valve.
·BGT series has small size,light weight,Reliable performance, flow capacity, particularly suitable for
medium viscous, containing particles, fiber nature of the occasion.
· Reliable performance, flow capacity, particularly suitable for medium viscous, containing particles,
fiber nature of the occasion.
· Widely used in cement, food, environmental protection, light industry, petroleum, paper, chemical and other
industrial control systems.
Ball valve and pneumatic actuator Combination & assembly table
ball valve |
DN mm Normal Diameter |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
torque Nm |
100 |
250 |
600 |
1600 |
|||||||
with BGT series actuaotr |
double acting |
BGT92 |
BGT118 |
BGT160 |
BGT254 |
||||||
single acting |
BGT118 K5 |
BGT160 K5 |
BGT210 K6 |
BGT350 K5 |
|||||||
with BAW series actuator |
double acting |
|
|
BAW13 |
BAW17 |
||||||
Single acting |
BAW13S |
BAW17S |
BAW20S |
BAW28S |
|||||||
pressure class: 1.6MPa 2.5MPa,When pressure is 4.0MPa,6.4MPa,should use larger pneumatic actuator.
Note:large size pneumatic ball valve,we can customerized according to your requirement.
Main parameters
Body type: Straight through casting ball valve
Nominal Diameter: DN25 ~ DN300
Nominal pressure: 1.6MPa, 4.0MPa, 6.4MPa
Connection: flange connection according to JB79-59 etc.RF flange
Body material: cast steel, stainless steel
Packing: V-type PTFE, asbestos, graphite
Valve Core Material: Stainless steel,Carbon steel platinum plating ect.
Leakage : less than rated capacity 10-8

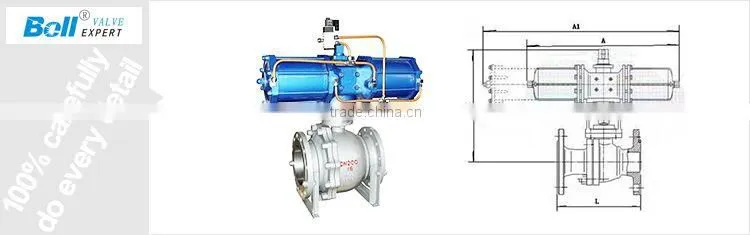

Normal Diameter |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
L |
1.6MPa |
140 |
180 |
200 |
220 |
250 |
280 |
360 |
500 |
2.5MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
|
4MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
|
6.4MPa |
180 |
220 |
250 |
280 |
320 |
360 |
500 |
600 |
|
H |
279 |
299 |
388 |
398 |
408 |
476 |
610 |
640 |
|
A |
125 |
125 |
294 |
294 |
294 |
378 |
603 |
603 |
|
Nominal Diameter |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
L |
1.6MPa |
140 |
180 |
200 |
220 |
250 |
280 |
360 |
500 |
2.5MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
|
4MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
|
6.4MPa |
180 |
220 |
250 |
280 |
320 |
360 |
500 |
600 |
|
H |
422 |
442 |
506 |
516 |
526 |
598 |
705 |
735 |
|
A |
|
|
|
|
|
600 |
800 |
800 |
|
A1 |
1020 |
1020 |
1260 |
1260 |
1260 |
1510 |
2060 |
2060 |
|
Note:large size pneumatic ball valve can customerized according to customers’ requirement.
