Pre-insulated Phenolic Foam Duct Panel
The phenolic foam duct panel is a new green materials, has passed ISO9001:2008 quality certification.And British BS476 fireproof test.
The phenolic foam duct panel is made of phenolic/PU/PIR foam with aluminum foil/color steel/galvanized steel surface. It can be cut by special cutting tools, install different flanges to make large HVAC composite air duct system, no need to add insulation layer. It is smooth and clean, not produce disease-causing substance and breeding of bacteria due to water absorption, not dust to affecthealth.
The phenolic foam duct panel has low thermal conductivity. Its insulation performance is good, both energy conservation and no condensation phenomenon. In use, it does not produce reasonance noise, but also absorbing part of the noise generted by the operation of the wind turbind. phenolic foam duct panel is alone forefront in the air conditioning duct market with its light weight to reduce building load,making simple,safe, non-combustible, non-toxic, non-smoking, and other characteristics.
It has the superior performance,environmental protection, energy saving, safe, non-combustible, sound insulation, beautiful, clean and so on.Composite air duct panels have become the ideal replacements of traditional ventilation ducts.
Product useage: widly use in the market, supermarket, guesthouse, hotel, stadium,workshop, airport, hospital, food store, pure project, underground railway, high speed train satation and so on.

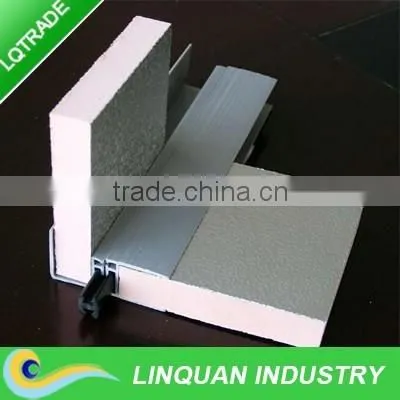

phenolic foam duct panel Flang
Advantage
- independent intellectual property rights of the raw material production technology.
- Super antiseptic bacteriostasis coated aluminum foil, acid and alkali resistance, salt fog resistance
- Import assistant, optimized formula system
- The leading production technology, continuous composite technology without glue, the national initiative
- High strength”five-in-one”structure.
- Excellent flae retardant properties, open flame only carbonation does not burs
Data sheet of phenolic duct panel |
Dimension |
||
1 |
Density: 55-68kg/m3 |
1 |
2950/3950*1200*20±1mm |
2 |
Thermal conductivity: 0.025W/m•k |
2 |
2950/3950*1200*25±1mm |
3 |
Aluminum foil thick: 60-80 micron |
3 |
2950/3950*1200*30±1mm |
4 |
Compressing strength: 300kpa |
4 |
Our product passed the British standard test |
5 |
Bending strength: 1.05Mpa |
5 |
BS476 part6 and part7, UL94, UL7614, ASTM |
6 |
Non-combustible: class”O” |
6 |
E84-05 and got certificates freproof class”O” |
7 |
Water absorption: 1.9% |
7 |
ISO 9001:2008 |
8 |
Max. Smoke density: 2% |
8 |
ISO 14001:2004 |
9 |
Working temperature: -150℃to 150℃ |
|
|
