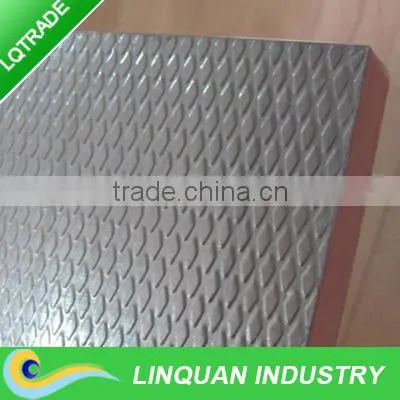

Shandong Linquan all kinds of size phenolic sheet
Description:
phenolic sheet is a highly efficient energy saving insulation material, with good thermal conductivity and fire resistance. phenolic sheet has passed the E84/BS fire tests according to ASTM standards with proven results of 10 flames spread and 0 smoke develop which complies to most of the North American and European building inspection standards. By using CNC Cutting Machines, phenolic sheet can be cut into specific pipe insulation sections, pipe support, and insulation boards.
Advantages of phenolic sheet
1) Close cell insulation material, high thermal performance
2) Fire-resistant (BS476 Part 6&7 Class 0, with approved and audited test report)
3) Moisture resistance with low water vapour permeance & low water absorption
4) Light weight but with an excellent structucral strength
5) Environmental Friendly material, CFC & HCFC Free
Applications:
1) Used in HVAC system as air duct insulation board or Pre-insulated Duct Board
2) Used in process/petrochemical applications for the insulation of pipework, tanks, vessel
3) Used in roofing, cavity board, external wall board, plasterboard dry lining systems, wall insulation, floor insulation and as a sarking board
4) Specialised applications including fire doors, highly fire resistant panels and for insulation in surface ships, off-shore installations and submarines.
Technical Parameters of phenolic sheet
Density |
40-60Kg/m3 |
|
Length |
1.2mm |
|
Width |
0.6m |
|
Thickness |
20mm-150mm |
|
Thermal Conductivity |
0.016-0.035w/cm.k |
|
Working Temp |
-160 to +190degree |
|
Ranking Fire |
A1 |
|
Water absorption |
in 24 hours short term |
less than 2% |
