Home > Metallurgy, Mineral & Energy > Refractory Material > Special Refractory Material > Purging Plug for Steel-making

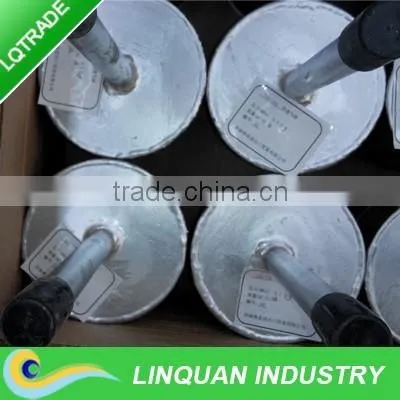

Purging Plug for Steel-making

Purging Plug for Steel-making thumbnail-1
Purging Plug for Steel-making photo-1
US$ 1,000 - 2,000 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Material:
Alumina Block
Al2O3 Content (%):
≥ 85%
Contact Supplier Request Quote Chat Now
Jinan Linquan Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Material Alumina Block
Al2O3 Content (%) ≥ 85%
Model Number LQWB
Brand Name Linquan, Emei, Siwei, lqtrade

Purging Plug for Steel-making



1. Well block (Seating Block) for Ladle

LQ –Series well block, seating block and porous block are shaped by pressing, prefabrication and vibration. With subtle formula design, unique technical process, they have good performance on Erosion-resistance, high temperature performance and also longer service life, which identified up to the leading domestic level and received recognition and praise

Chemical and Physical Properties

LQLWB-85

LQLWB-90

LQLWB-95

Al2O3 +MgO    %          min

85

90

95

Cr2O3 (C)   %             min

0

2.5

2.5

Apparent porosity g/cm3%   max

15

13

13

Bulk density  g/cm3   %     min

3.0

3.05

2.9

Normal temperature Compressive strength (MPa)            min

80

100

100

Breaking strength   1500°C×3hmin

23Mpa



 2.Well block and purging plug





Chemical and Physical Properties

(Well block)

(purging plug)

AL2O3 %

>=85

>=85

MgO%

3-5

1-3

Cr2O3 %

-----

>2.4

Bulk density  gcm3

>=3.0

>=2.9

Apparent Porosity  %

<=16

<=18

Cold crushing strength  Mpa

110ºC*24h

>=60.0

>=80.0

1500ºC*3h

>=100.0

>=80.0

Refractoriness under load : ºC

>=1680

>=1680

Modulus of rupture 1400ºC *1h Mpa  Mpa

>=15.0

>=15.0

Linear change 1500ºC*3h %

±0.2

±0.2

air permeability, m3/hour at P=4 bar

30M3/H





1. Serivice life depends on steel-making condition, refractory slide gate and different operation mode. The above service life we supply is based on the condition of more than 100 Tons ladle.

2. For composited slide plate, we can mark different material in different part and detailed index according to the drawings.

3. Delivery time depends on the drawings. If new moulds are needed, an additive period may be necessary. In general it takes 30-50 days.
