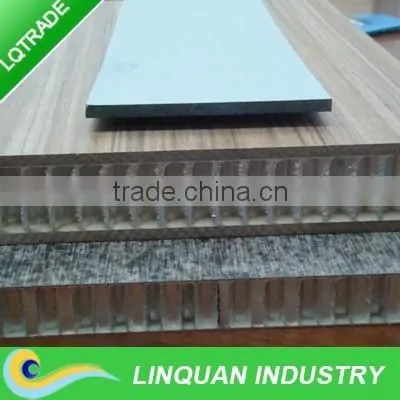

Aluminum Honeycomb Core Sandwich Panel

1.    Introduction

Aluminum honeycomb panels: aviation, aerospace materials in civil construction, vehicles, ships and other areas of decorative applications. The panel’s main selection of high quality alloy sheet material is 3003H24 or 5052H24, the top sheet thickness of 0.8-1.5mm. The board select PVDF with paint roller or resistance to high temperature paint, bottom sheet thickness of 0.6-1.0mm Poly Ester roller board. The core material with hexagonal 3003H18 aluminum honeycomb core, aluminum foil thickness 0.04-0.08mm, cell size 4-8mm, the total thickness of 10-25mm.

2. Surface board materials

Panel materials: color coating(natural) aluminum, stainless steel, galvanized plate, color steel plate and other plates

3. Production mode

Technologies: the main use of three ways including a continuous roll forming, hot forming single or multiple pieces, and at room temperature adhesive forming

4. Application

1)    Building: roofs, walls, ceilings,

2)    The elevator wall floor and door

3)    Vehicle noumenon, bottom and top panel

4)    Advertisement decoration, display board and partition panel

5)    Electronic whiteboard

5. Main characteristics

1)    panel with 70% of the PVDF paint. Weathering resistance. A self- cleaning ability. Long service life

2)    For ambient temperature -40~+80 The various regional

3)    Environment-friendly materials, all metal construction, 100% recyclable

4)    Plane roughness

5)    High intensity

6)    Stiffness

7)    Light weight: the same thickness, with an area weight of 1/5 of wood, glass, 1/7 aluminum

8)    Fire performance ≥B1 level

9)    Sound insulation: the amount of air noise 29db

10) Good insulation: thermal conductivity of 0.16w/(M.K)
