Specifications
Hollow Block Making Machine
1. BV / SGS / ISO9001
2.multi-purpose design
3. two molds free
4.PLC control
Catherine Xu
Mobile/whatsapp: 0086-15550919697; Skype: catherinexu728
Email: tianyuan28 at
QTJ4-26C China New Product! QT4-26 Industrial Machine To Make Hollow Blocks Machine For Concrete Precast Houses
A: Production capacity of QTJ4-26C manual block machine making, small scale industrial manufacturing machines, mini block machine
B: Technical parameters of QTJ4-26C manual block machine making, small scale industrial manufacturing machines, mini block machine
Technical Parameter of QTJ4-26C semi | |||
machine size |
2x1.8x2.3m |
Pallet size |
850x450mm |
machine power |
18.95kw |
Weight |
3.5Ton |
Test pressure |
16Mpa/cm2 |
Mixer(Φ1.2m) |
pan mixer |
Vibration forece |
45kn |
Belt conveyor |
6m |
Forming cycle |
26-40s |
Voltage |
220/380/440 |
Material consumption |
50~70tons |
Block height |
40~280mm |
Electric consumption |
24Kw.h |
Water consumption |
3tons |
Working Area(1000Sqm) | |||
Workshop area |
10m(L)*4m(W)*3m(H) |
||
Storage yard area |
960sqm |
||
Worker(4 workers) | |||
Loading materials – one worker |
Trolley - two workers. |
||
Molding machine – one worker |
|||
C: QTJ4-26C manual block machine making, small scale industrial manufacturing machines, mini block machine other information:
1. Area: Workshop area: 80-100m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or eight.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:50-70T
6. water consumption per day:3%-5% of raw material Weight.
D.QTJ4-26C manual block machine making, small scale industrial manufacturing machines, mini block machine guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E.QTJ4-26C small scale production machinery, small block machine production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.

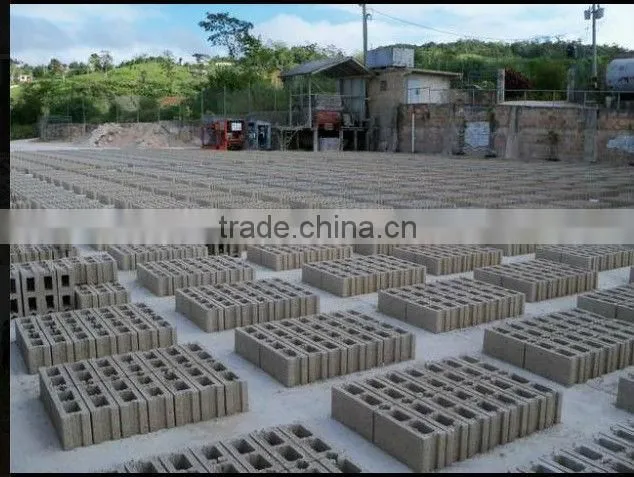

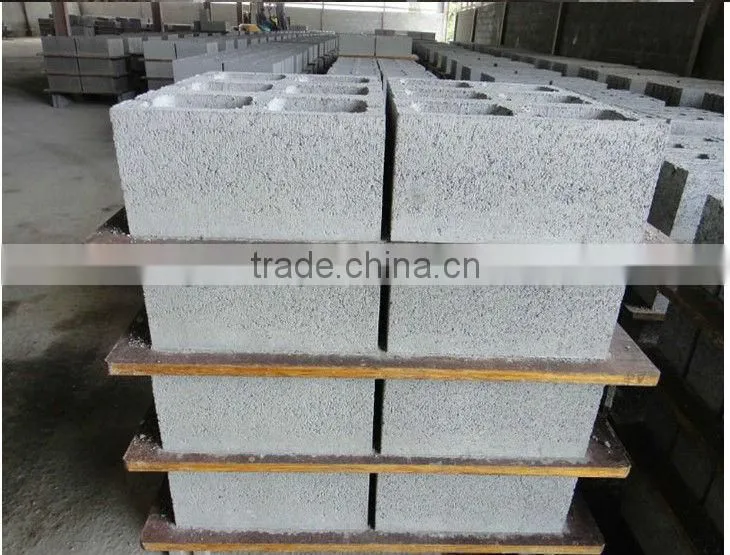

Below is the block which this machine can produce.
And also can produce block per your actual needs

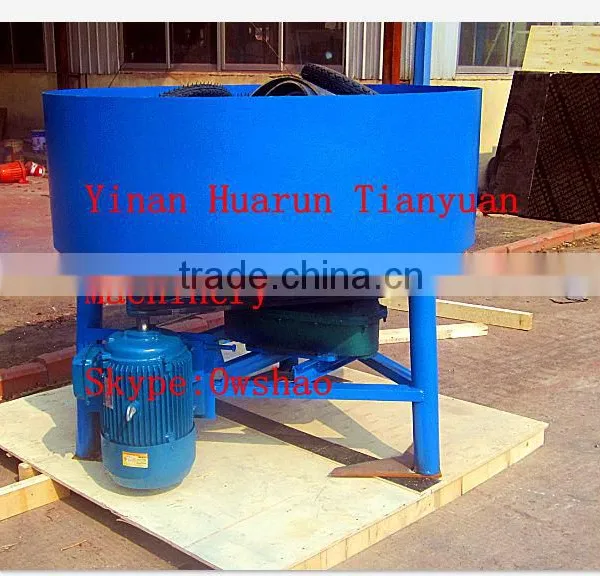

Mixer

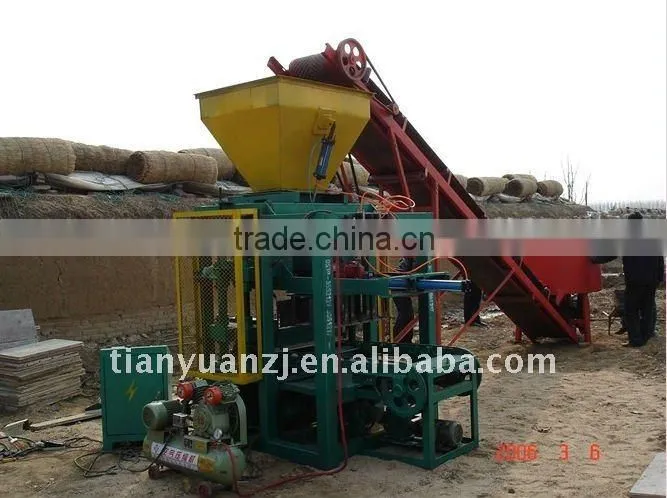

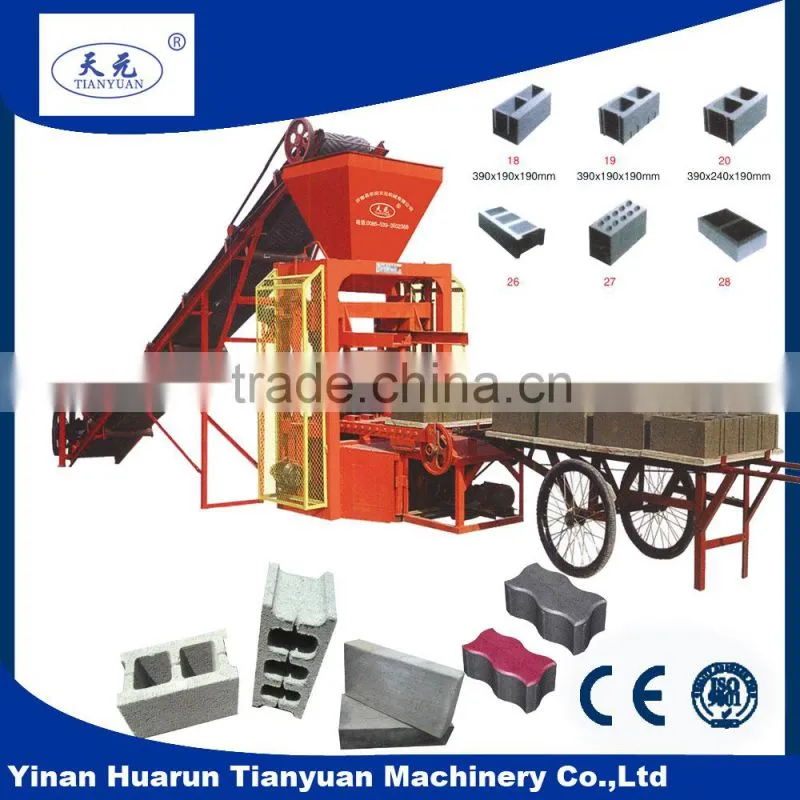

Simple production line
Instruction:

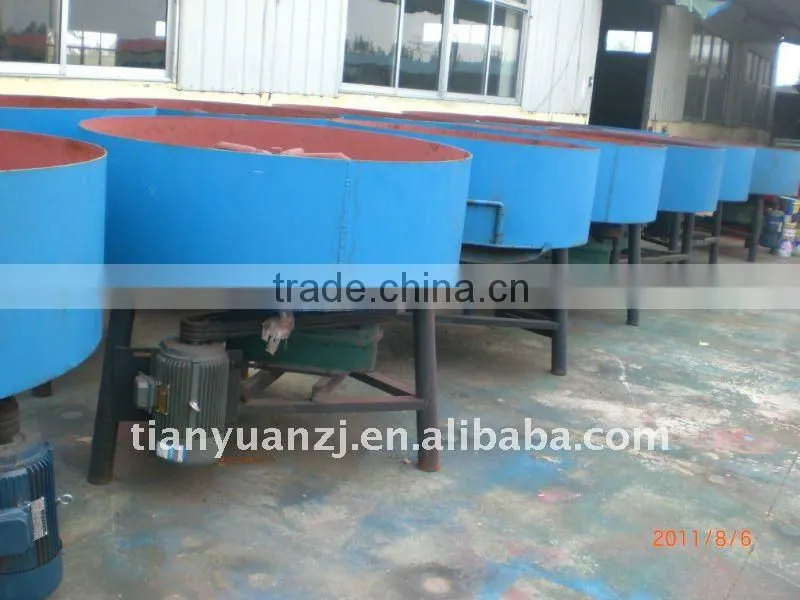

* Mixer
All the materilas are put into the mixer tank and mixed in it at same time. It will need one worker to operate the mixer.
* Conveyor belt
The mixed materials down from mixer conveyed to molding machine hopper for making blocks.

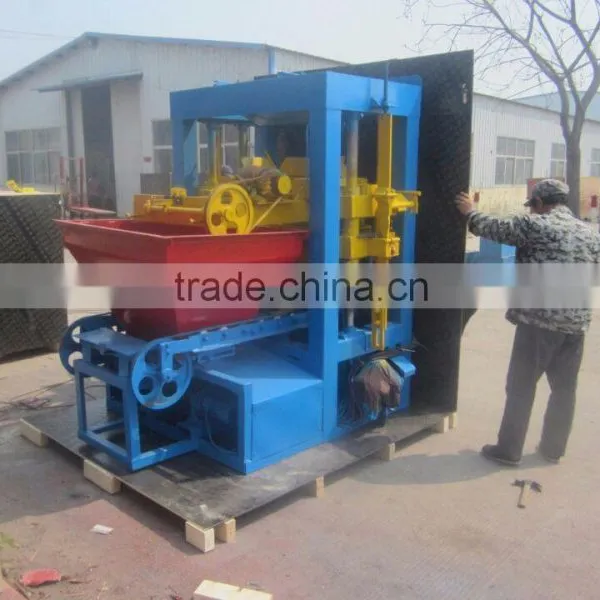

* Molding machine:
The molding machine is the key of all production line. By pressing the mixed materials, it can make block, brick, interlock paver and curbstone with different moulds.
It is controlled by PLC and Hydraulic station.
* Block conveyor
It will support the fresh blocks.
The fresh block/brick come out from mould convey to the block conveyor.
* Trolley
The trolley will transport the pallets with fresh blocks to the store yard for curing. Usually transport 3 pallets each time.

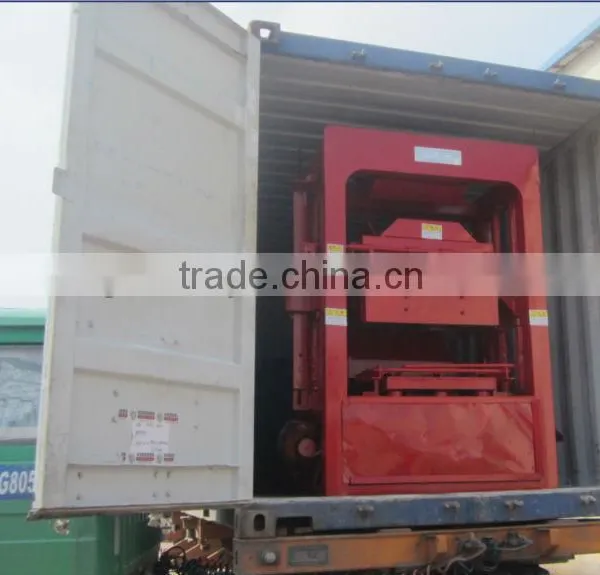

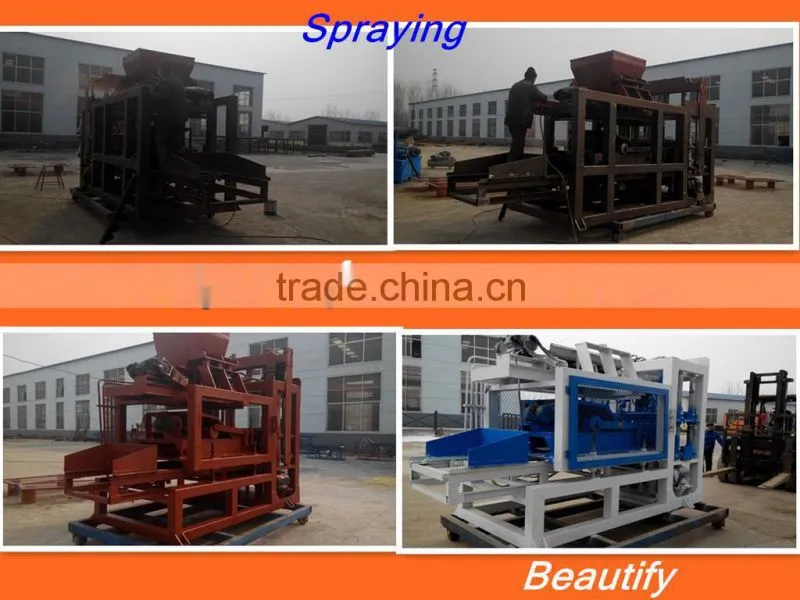

Spraying and packaging
*Service and support:
@Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary document and drawing,take the video for free;
@if there have any problem which caused by our products qualities within one year,we will be responsible for it !
Inquiry service:
Accept user’s enquiries by all kinds of ways and establish user’s product cognition. Provide all kinds of product data and let customer understand characteristics of product.
Pre-sale service:
Accept inquiry of customers ,confirmation of investment advice of choice of product ,assist the customers to design the workshop
In-sale service:
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
