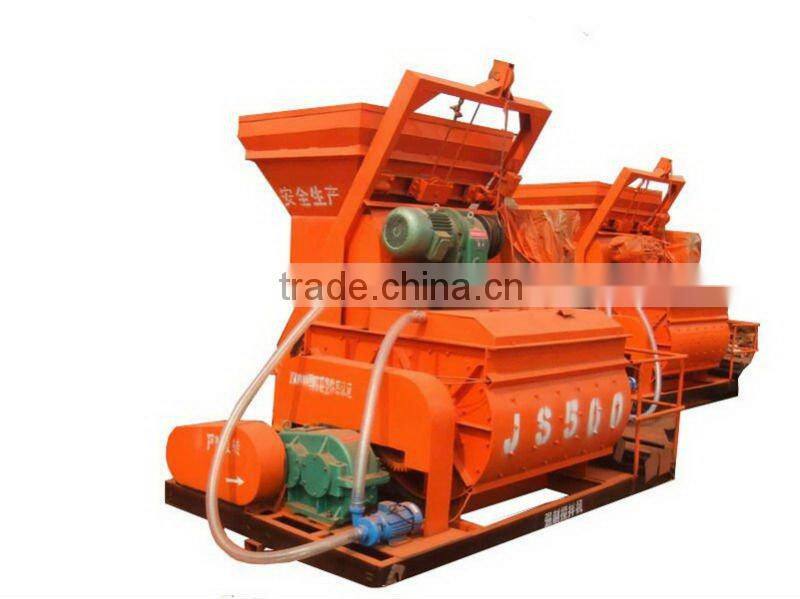

Concrete JS500 Mixer for Block Plant - Huarun Tianyuan

FOB Price

US$ 800 - 6,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, concrete mixer	Processing	Other
Capacity	25m3/h	Place of Origin	Shandong, China
Brand Name	Huarun Tianyuan.	Model Number	JS500
Power	18.5kw

Product Description

Specifications

1) discharging volume:500L
2) feeding volume :800L
3) productivity:25m3/h...

Main technical parameters of JS500
Rated discharging volume	500L
Rated feeding volume	800L
Rated productivity	≥25m3/h
RPM of mixing blade	35r/min
Number of mixing blades	2×7
Model of mixing motor	Y180M-4
Power of mixing motor	18.5KW
Model of winch motor	YEZ132S-4
Power of winch motor	5.5KW
Model of water pump motor	50DWB20-8A
Power of water pump motor	0.75kW
Discharging height	1500mm
Discharging mode	JS500: manual; JS500D: electric; JS500Q: pneumatic;
The maximum particle size of aggregate	80/60(pebble / broken stone) mm
External dimension (LWH) transportation state	303023002680mm
External dimension (LWH)Working state	448030305280mm
Weight of the whole machine	4000kg

Brief introduction of product

JS500 concrete mixer is applicable for mixing stiff concrete, pasty concrete, lightweight aggregate concrete and all mortars in all prefabricated structural parts factories and industrial & civil building engineering construction departments of water conservancy, road and bridge etc. It is used not only in independent operation and but also to combine into simple mixing plant with corresponding batching equipment.

According to different discharging modes, this machine includes manual type (JS500), electric type (JS500D) and pneumatic type (JS500Q). Features of the whole machine include reasonable structure, good mixing quality, short mixing time, low energy consumption and low noise etc. Main parts of electrical control system use import components with excellent performance and high reliability.

Standard discharging heights of this machine include: 1.5m, 2.7m and 3.8m (or design according to users’ requirements). Users can self-prepare tilting carts and concrete mixing trucks that are matched with this machine.
