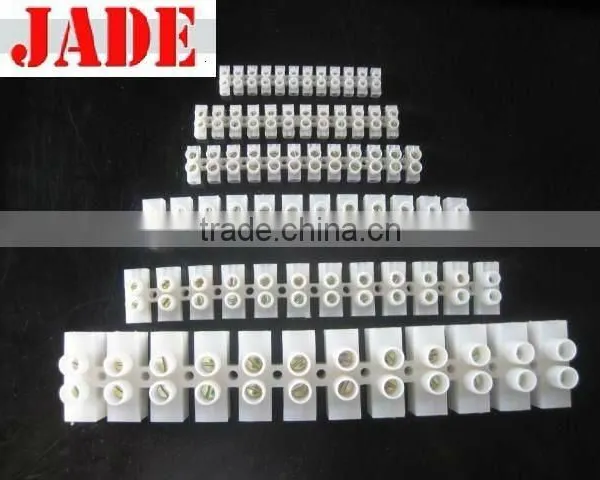

Transparent Terminal Block H
US$ 0.1 - 5
MOQ: 12000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JADE
Model Number:
FW3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
JADE
Model Number
FW3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
Number of Contacts
21 - 30
Conductor Size
21 - 30 AWG
Type
Screw
Specifications
transparent terminal block H1.Material PE /Brass insert /Steel screw
2.Voltage 250 - 400V
3.Cable Range 2.5MM - 40MM
transparent terminal block H
Material:
Plastic have PA, PP, PE.
Brass insert and Steel screw
Voltage: 250- 400V
Current : 3A - 100A
Cable wire : 2.5mm2 - 40mm2
Working Temperature : - 40oC to 110oC
Color: Natural color and black color
Technical Data:
| Spec. | mm | ||
| Length | Width | High | |
| 3A-4mm2 | 96 | 14.8 | 12 |
| 3A-4mm2 | 88 | 15 | 11 |
| 6A-6mm2 | 106 | 18 | 14.5 |
| 6A-6mm2 | 102 | 17.5 | 13 |
| 10A-10mm2 | 120 | 19 | 13 |
| 10A-10mm2 | 110 | 17 | 13 |
| 30A-16mm2 | 162 | 24 | 23 |
| 30A-16mm2 | 158 | 21 | 15.5 |
| 60A-25mm2 | 195 | 33 | 25.5 |
| 60A-25mm2 | 174 | 26 | 22.5 |
| 80A-35mm2 | 226.8 | 36.1 | 29 |
| 100A-40mm2 | 250 | 40 | 33 |
| 150-45mm2 | 254.6 | 45 | 35 |
plastic soft and toughness.Brass insert glossy and clean, tolerance very smaller. Screw high quality, easy working.
We can according to customer require make different mould, welcome to visit our company.
