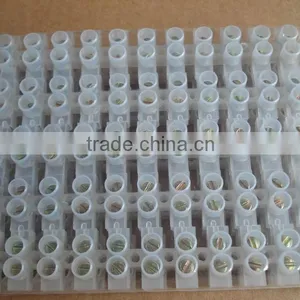

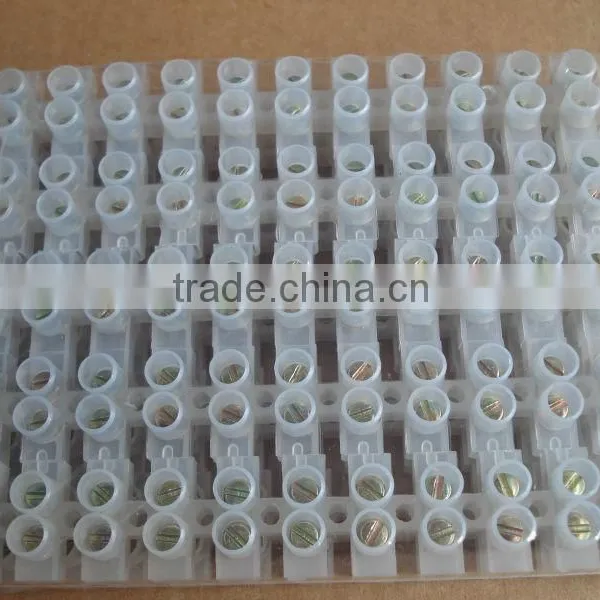

HFW Automotive Wire Connector Terminals
US$ 0.1 - 10
MOQ: 8000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JADE
Model Number:
HFW( 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
JADE
Model Number
HFW( 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
Type
Screw Terminal
Specifications
HFW automotive wire connector terminals1.Brass insert and Steel screw
2.Voltage:250-400V
3.Current:3A-150A
HFW connector terminal block:
1. H,U(W),V(F) types
2.Material: made from PA, PE or PP.
3.The sizes: 4mm2,6mm2,10mm2,12mm2,14mm2,16mm2,20mm2,25mm2,35mm2,40mm2
4.Current: 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
5.Colours: milk-white, black,transparent
6. Standard: IEC
7.Brass insert and Steel screw
8.Voltage: 250- 400V
9.Current : 3A - 150A
10.Cable wire : 2.5mm2 - 45mm2
11.Working Temperature : - 40oC to 110oC
Technical Data:
| Spec. | mm | ||
| Length | Width | High | |
| 3A-4mm2 | 96 | 14.8 | 12 |
| 3A-4mm2 | 88 | 15 | 11 |
| 6A-6mm2 | 106 | 18 | 14.5 |
| 6A-6mm2 | 102 | 17.5 | 13 |
| 10A-10mm2 | 120 | 19 | 13 |
| 10A-10mm2 | 110 | 17 | 13 |
| 30A-16mm2 | 162 | 24 | 23 |
| 30A-16mm2 | 158 | 21 | 15.5 |
| 60A-25mm2 | 195 | 33 | 25.5 |
| 60A-25mm2 | 174 | 26 | 22.5 |
| 80A-35mm2 | 226.8 | 36.1 | 29 |
| 100A-40mm2 | 250 | 40 | 33 |
| 150-45mm2 | 254.6 | 45 | 35 |
