Help CenterHFW Terminal Block
US$ 0.1 - 10
MOQ: 9000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JADE
Model Number:
HFW Plastic Terminal
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
JADE
Model Number
HFW Plastic Terminal
Number of Contacts
21 - 30
Conductor Size
21 - 30 AWG
Type
Screw
Specifications
HFW Terminal Block1.Brass insert and Steel screw
2.Voltage: 250- 400V
3.Current : 3A - 150A
4.Cable wire : 2.5mm2 - 40mm2

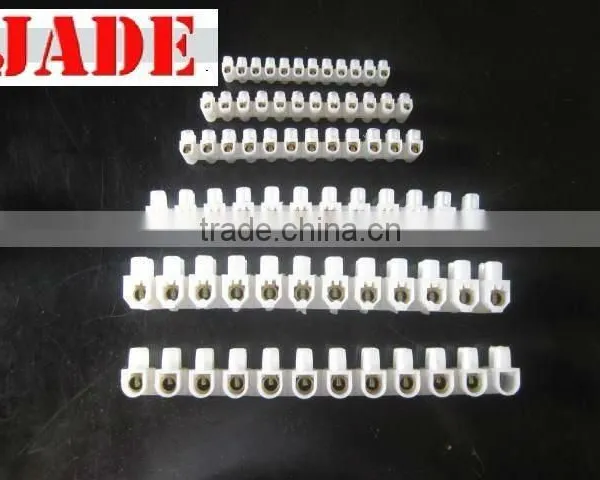

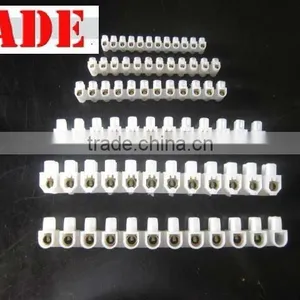

HFW Terminal Block
1. H,U(W),V(F) types
2. Material: made from PA, PE or PP.
3. The sizes: 4mm2,6mm2,10mm2,12mm2,14mm2,16mm2,20mm2,25mm2,35mm2,40mm2
4. MCurrent: 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
5. Colours: milk-white, black,transparent
6.Brass insert and Steel screw
7.Voltage: 250- 400V
8.Current : 3A - 150A
9.Cable wire : 2.5mm2 - 40mm2
10.Working Temperature : - 40oC to 110oC
Technical Data:
| Spec. | mm | ||
| Length | Width | High | |
| 3A-4mm2 | 96 | 14.8 | 12 |
| 3A-4mm2 | 88 | 15 | 11 |
| 6A-6mm2 | 106 | 18 | 14.5 |
| 6A-6mm2 | 102 | 17.5 | 13 |
| 10A-10mm2 | 120 | 19 | 13 |
| 10A-10mm2 | 110 | 17 | 13 |
| 30A-16mm2 | 162 | 24 | 23 |
| 30A-16mm2 | 158 | 21 | 15.5 |
| 60A-25mm2 | 195 | 33 | 25.5 |
| 60A-25mm2 | 174 | 26 | 22.5 |
| 80A-35mm2 | 226.8 | 36.1 | 29 |
| 100A-40mm2 | 250 | 40 | 33 |
| 150-45mm2 | 254.6 | 45 | 35 |
