HFW 12 Poles Terminal Block

HFW 12 Poles Terminal Block thumbnail-1
HFW 12 Poles Terminal Block thumbnail-2
HFW 12 Poles Terminal Block thumbnail-3
HFW 12 Poles Terminal Block thumbnail-4
HFW 12 Poles Terminal Block thumbnail-5
HFW 12 Poles Terminal Block thumbnail-6
HFW 12 Poles Terminal Block photo-1
HFW 12 Poles Terminal Block photo-2
HFW 12 Poles Terminal Block photo-3

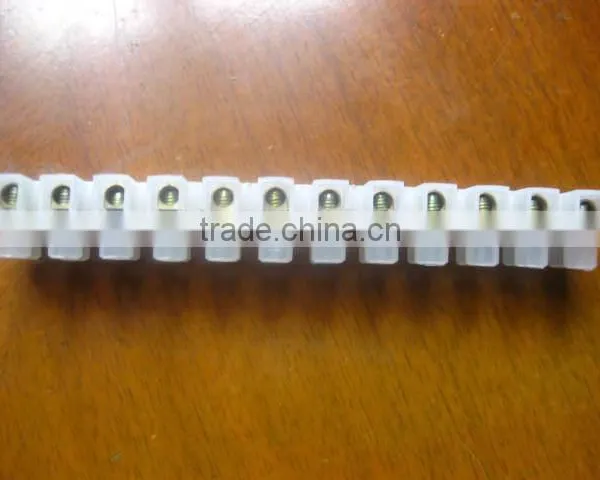

HFW 12 Poles Terminal Block photo-4
HFW 12 Poles Terminal Block photo-5
HFW 12 Poles Terminal Block photo-6
US$ 0.1 - 10 MOQ: 9000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JADE
Model Number:
HFW10MM
Contact Supplier Request Quote Chat Now
Yueqing Jade Electric Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
NINBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JADE
Model Number HFW10MM
Type Screw Terminal

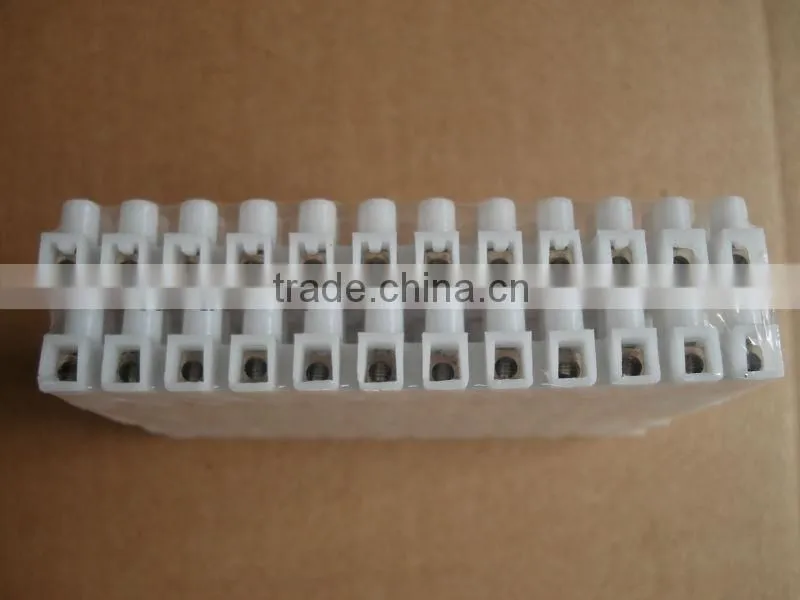

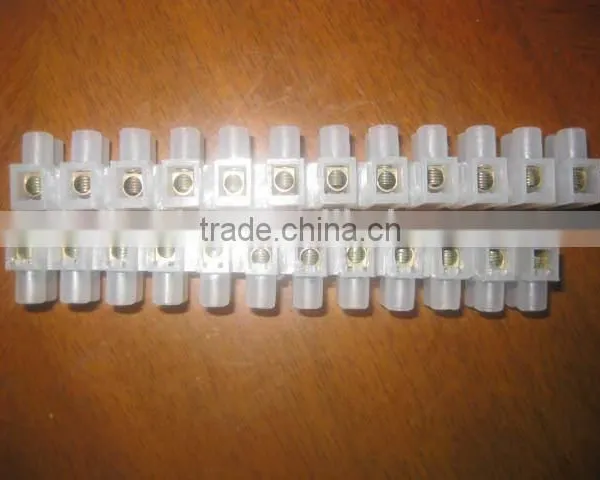

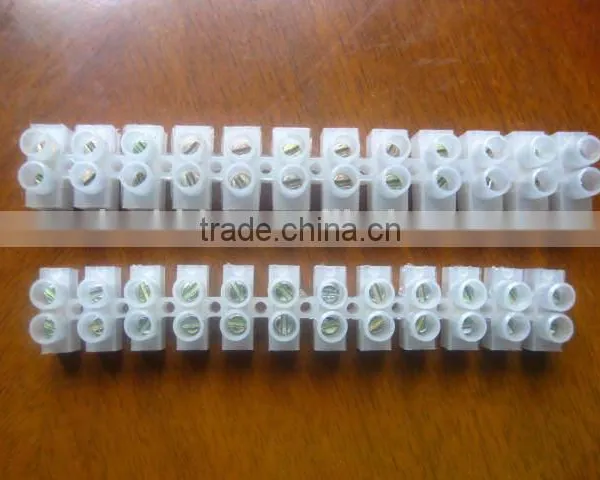

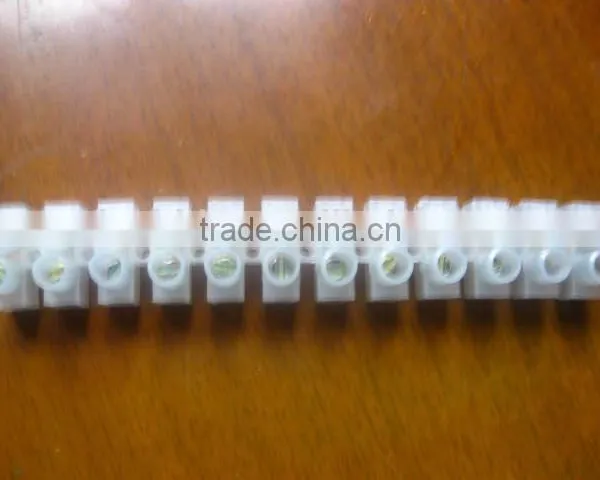

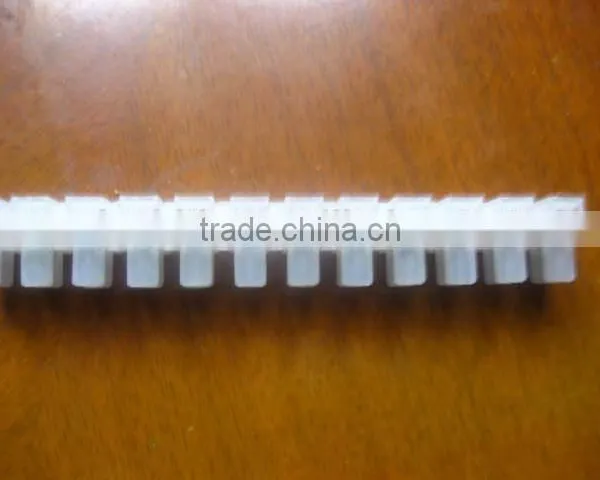

HFW 12 poles terminal:

1:H,U(W),V(F) types
2:Material: made from PA, PE or PP.
3:Color: white,black,transparent

4:The sizes: 4mm2,6mm2,10mm2,12mm2,14mm2,16mm2,20mm2,25mm2,35mm2,40mm2

5:Current:     3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A

6:Colours: milk-white, black,transparent

7.Brass insert and Steel screw

8.Voltage: 250- 400V

9.Current : 3A - 150A

10.Cable wire : 2.5mm2  - 45mm2

11.Working Temperature : - 40oC to 110oC

Technical Data:

Spec. mm
  Length     Width      High
3A-4mm2 96 14.8 12
3A-4mm2 88 15 11
6A-6mm2 106 18 14.5
6A-6mm2 102 17.5 13
10A-10mm2 120 19 13
10A-10mm2 110 17 13
30A-16mm2 162 24 23
30A-16mm2 158 21 15.5
60A-25mm2 195 33 25.5
60A-25mm2 174 26 22.5
80A-35mm2 226.8 36.1 29
100A-40mm2 250 40 33
150-45mm2 254.6 45 35

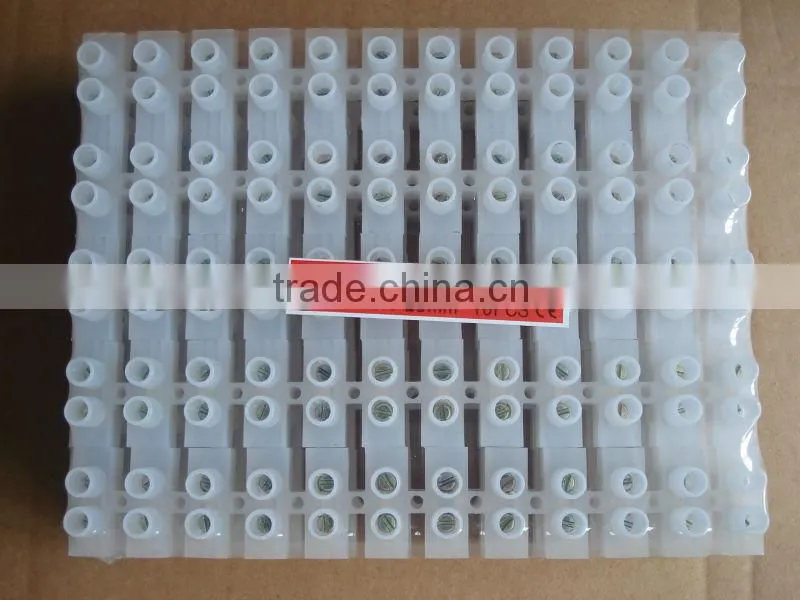

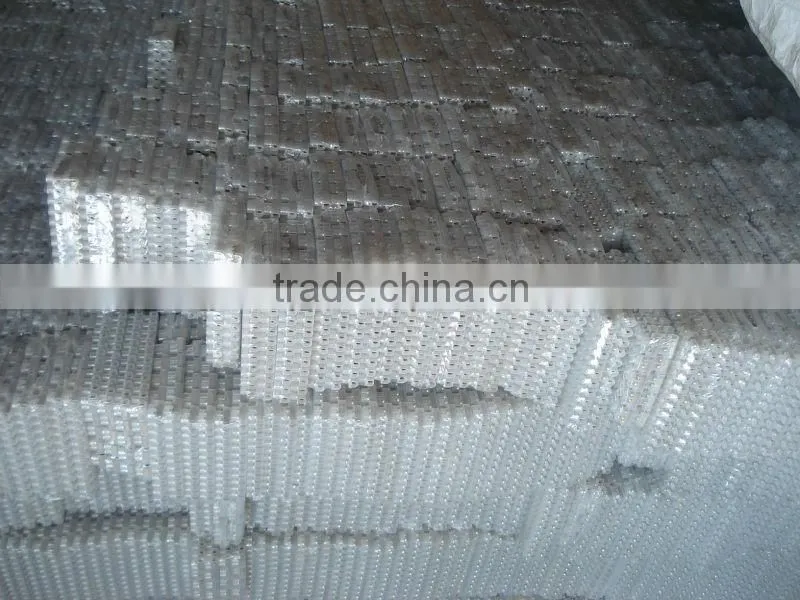

          HFW 12 poles terminal blockHFW 12 poles terminal blockHFW 12 poles terminal blockHFW 12 poles terminal blockHFW 12 poles terminal blockHFW 12 poles terminal block
