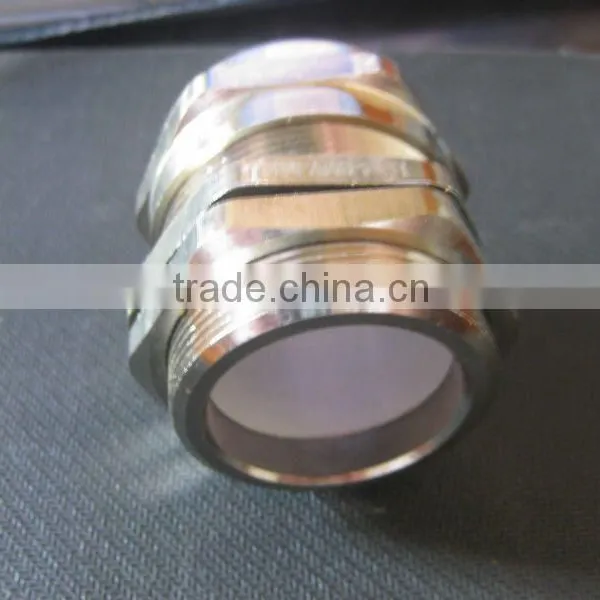

M40*1.5 Cable Clip,Cable Gland

M40*1.5 Cable Clip,Cable Gland thumbnail-1
M40*1.5 Cable Clip,Cable Gland photo-1
US$ 1 - 10 MOQ: 800 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JADE
Model Number:
m40*1.5
Contact Supplier Request Quote Chat Now
Yueqing Jade Electric Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JADE
Model Number m40*1.5
Type Other, DIN, 220V,Min type,1.5KW,Single phrase
Application Automotive
Gender Female

Specifications

M40*1.5 Cable Clip,Cable Gland
1.Material Brass nickel plated
2.Claw Nickel plastic(PA)
3.Sealing NBR
4.0-Sealing ring NBR

  Cable Clip,Cable Gland

1.Material Brass nickel plated
2.Claw Nickel plastic(PA)
3.Sealing NBR
4.0-Sealing ring NBR
5.Protection level IP68-10bar pressure(fixed installation and with 0-sealing ring)
6.Ambient temperature -40°C-100°C.temporary to 120°C
m40*1.5 Cable Clip,Cable Gland

Character Special design of clamping claw and clamping ring,wide clamping range,high stretching resistance,wate proof,dustproof,salt resistant,resistant for weak acid,alcohol,oil,grease and gengral solvent
Specification of thread Cable Range Outer diameter of thread Mounting hole diameter Thread length Thread lenght(langthened type) Joint length Wrench diameter
M12×1.5 6.5-3 12mm 12-12.2 7mm 10mm 19mm 14mm
M14×1.5 8-4 14mm 14-14.2 7mm 10mm 19mm 18mm
M16×1.5 8-4 16mm 16-16.2 8mm 10mm 20mm 18mm
M18×1.5 10-5 18mm 18-18.2 8mm 10mm 21mm 20mm
M20×1.5 12-6 20mm 20-20.2 8mm 15mm 22mm 22mm
M22×1.5 10-14 22mm 22-22.2 8mm 15mm 23mm 24mm
M24×1.5 10-14 24mm 24-24.2 9mm 15mm 25mm 24/27mm
M25×1.5 10-14 25mm 25-25.2 9mm 15mm 25mm 24/27mm
M25×1.5 18-13 25mm 25-25.2 9mm 15mm 27mm 30/27mm
M27×1.5(2) 18-13 27mm 27-27.2 9mm 15mm 27mm 30mm
M28×1.5(2) 18-13 28mm 28-28.2 9mm 15mm 27mm 30mm
M30×1.5(2) 18-13 30mm 30-30.2 9mm 15mm 29mm 30/32mm
M32×1.5(2) 22-15 32mm 32-32.2 10mm 15mm 29mm 35mm
M33×1.5(2) 22-15 33mm 33-33.2 10mm 15mm 29mm 35mm
M36×1.5(2) 25-18 36mm 36-36.2 10mm 15mm 31mm 40mm
M37×1.5(2) 25-18 37mm 37-37.2 10mm 15mm 31mm 40mm
M40×1.5(2) 25-18 40mm 40-40.2 11mm 15mm 31mm 40/45mm
M40×1.5(2) 30-22 40mm 40-40.2 11mm 15mm 35mm 45mm
M42×1.5(2) 30-22 42mm 42-42.2 11mm 15mm 35mm 45mm
M47×1.5(2) 33-25 47mm 47-47.2 11mm 15mm 37mm 50mm
M48×1.5(2) 33-25 48mm 48-48.2 11mm 15mm 37mm 50mm
M50×1.5(2) 38-32 50mm 50-50.2 12mm 15mm 37mm 57/55mm
M54×1.5(2) 38-32 54mm 54-54.2 12mm 15mm 38mm 57mm
M60×1.5(2) 44-37 60mm 60-60.2 13mm 15mm 38mm 65mm
M63×1.5(2) 44-37 63mm 63-63.2 13mm 15mm 38mm 65mm
M64×1.5(2) 44-37 64mm 64-64.2 13mm 15mm 38mm 65/68mm
M72×1.5 52-42 72mm 72-72.2 15mm 20mm 42mm 77mm
M75×1.5 52-42 75mm 75-75.2 15mm 20mm 42mm 77mm
M80×1.5 62-55 80mm 80-80.2 15mm 20mm 45mm 90mm
M88×1.5 70-65 88mm 88-88.2 15mm 20mm 45mm 94mm
M100×1.5 84-78 100mm 100-100.2 15mm 20mm 45mm 110mm
