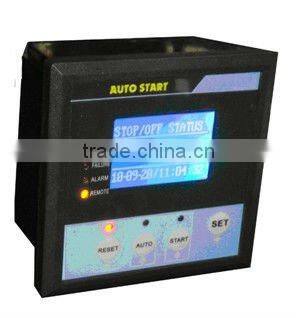

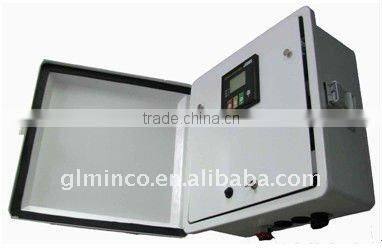

Automatic water pump controller MINCO 410

Specifications

Automatic water pump controller MINCO 410
1.Model:MINCO 410
2.Apply:water pump
3.Original:China
4.Certification:CE



Automatic water pump controller MINCO 410



Main function:Auto start &protection,ATS control,Manual control,Input/output user-defined set(more than 10 options).

                        Failure record,Timer start (per year/month/week/day timer start genset).

LCD display:speed,coolant temp,oil pressure,bettery voltage,running time,oil temp./fuel level,lift.



 I.MINCO 410 engine controller Timing  AMF Industry machine Controller Function Character:

1.Display speed,oil pressure,water temperature,oil temperature etc. parameter of genset

2. Small and exquisite shape, wide-screen LCD display with black-light

3. Auto start, auto protection, ATS control function

4. Chinese and English double language menu, mutual operation, can be set and operated without the computer

5. User-defined to all input and output port, almost more than 10 items option

6. Perfect auto protection, warning details and working statement character display directly, fault record more than 50 items

7. All relay contact capability of strat and fuel is above 10A/250VAC/30VDC

8. Timing start function,start genset at each year,each month,each week or each day

9. RS232 communication. This is optional function, which attached “four remote control” monitor software



II. Minco 410 engine control unit Control parameter list:

Analog inputs	Coolant temp. sensor	oil pressure sensor	fuel level sensor	Excitation/charge failure input	speed sensor input
Switch inputs	Remote start	Emergency stop	User-defined input1-4	low oil pressure	high coolant temperature
	ACE/DCC limit	low fule level alarm	float charge fail alrm	alarm stop etc.12 items







III.Minco 410 user-defined timer function automatic generator controller External Features



1.      Size of outsidefront panel(L×WxD)  96x96x9mm

         Back shell(LxWxD)   84x84x50 mm

         Hole size of installation (L×W) 85x85mm

2.      Power supplyDC8-40 V,<300 mA

3.      Work environment-25~75,relative humidity<95%

4.      N.G: 350 g
