Home > Electrical & Electronics > Power Supply & Distribution > Electric Power Fitting > Compression Dead End Clamps Eye Type for ACSR Conductors

Compression Dead End Clamps Eye Type for ACSR Conductors

Name: Compression Dead End Clamps Eye Type for ACSR Conductors
Brand: YIPENG
SKU: 126558587
Availability: InStock

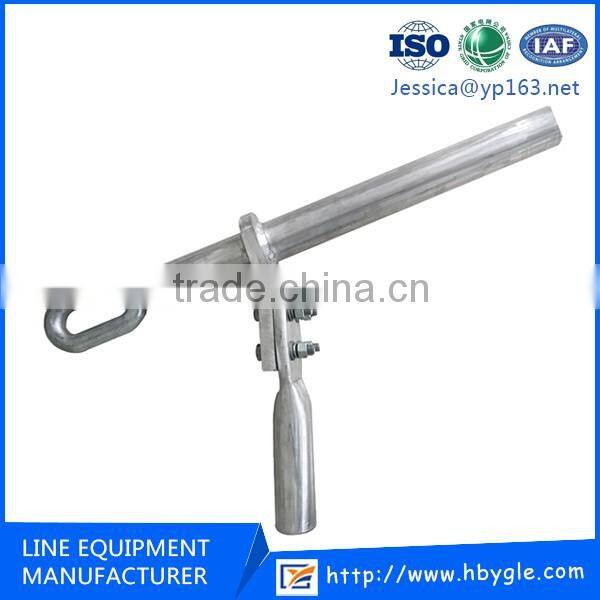

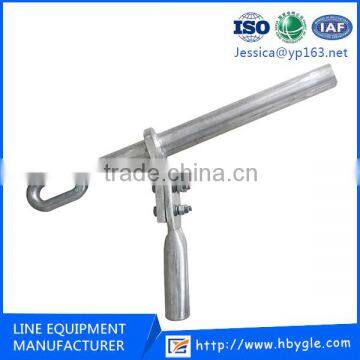

Compression Dead End Clamps Eye Type for ACSR Conductors thumbnail-1

Compression Dead End Clamps Eye Type for ACSR Conductors photo-1

US$ 1 - 98 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

YIPENG

Model Number:

Compression dead end clamp

Contact Supplier Request Quote Chat Now

Hebei Yongguang Line Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name YIPENG

Model Number Compression dead end clamp

Direct Manufacter, Excellent Quality, Competitive Price and Good After-Service

1.Factory price

2.Delivery on time

3.Free samples is available

4.Hot sail & durable

5.21 year's manufacturer

Product Name	NY Hydraulic Compression Type Dead End Clamp for Aluminum ACSR
Application	Used in all areas of overhead line construction.
Material	Alloy steel / Aluminum
Color	Silver
Product Standard	ISO9001, CE , BV , SGS
Size	As request
Packing	Plastic bag or carton and pallet / by customer requirements.
Notes	Special specifications can be made according to your requirement
Bussiness Type	Manufacturer, trading

There are different compression systems in use: circumferential compression and indentation for hexagonal compression,
the latter being the most popular. Compression can be achieved with a variety of tooling systems provided the compressive
force of the press is sufficient and the characteristics of the inserts and clamps match. Compression dead end clamps are
tapered at the conductor inlets to allow gradual force transmission. Normally the jumper terminal is bolted to the clamp flag;
for smaller types, designs comprising a welded jumper can be supplied. Compression fittings are available for every conductor
type and size. To achieve the best results the clamps are individually adapted for each conductor and therefore we need the
following information, preferably on a data sheet, for the conductor:
– Code name or identification of the conductor
– Material and cross sections
– Number and diameter of wires
– Ultimate breaking load
Compression fittings are filled with compound and sealed.

Full Tension deadend assembly for ACSR conductors consists
of a aluminum deadend body precompressed onto a steel unit,
a jumper terminal, mounting hardware and core gripping unit.
Material:
Body: Seamless extruded Aluminum Alloy tube
Eye: Galvanized forged steel
Terminal: Seamless extruded Aluminum Alloy tube
Hardware: steel,hot galvanized

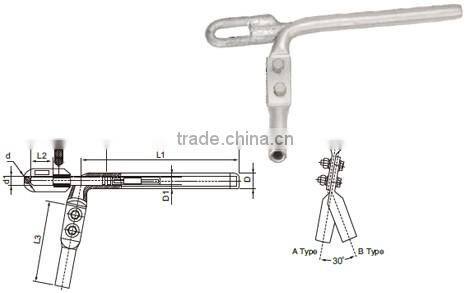

Catalog Number	Suitable Conductor	Dimensions (mm)								Slip strength (kN)
Catalog Number	Suitable Conductor	L	L1	L2	L3	D	D1	D2	D3	Slip strength (kN)
NY-50/8 NY-50/30 NY-70/10 NY-70/40 NY-95/15 NY-95/20 NY-95/55 NY-120/7 NY120/20 NY-120/25 NY-120/70 NY-150/8 NY-150/20 NY-150/25 NY-150/35 NY-185/25 NY-185/30 NY-185/45 NY-240/30 NY-240/40 NY-240/55 NY-300/15 NY-300/20 NY-300/25 NY-300/40 NY-300/50 NY-300/70 NY-400/20 NY-400/25 NY-400/35 NY-400/50 NY-400/65 NY-400/95 NY-500/35 NY-500/45 NY-500/65 NY-630/45 NY-630/55 NY-630/80 NY-800/55 NY-800/70 NY-800/100	LGJ-50/8 LGJ-50/30 LGJ-70/10 LGJ-70/40 LGJ-95/15 LGJ-95/20 LGJ-95/55 LGJ-120/7 LGJ-120/20 LGJ-120/25 LGJ-120/70 LGJ-150/8 LGJ-150/20 LGJ-150/25 LGJ-150/35 LGJ-185/25 LGJ-185/30 LGJ-185/45 LGJ-240/30 LGJ-240/40 LGJ-240/55 LGJ-300/15 LGJ-300/20 LGJ-300/25 LGJ-300/40 LGJ-300/50 LGJ-300/70 LGJ-400/20 LGJ-400/25 LGJ-400/35 LGJ-400/50 LGJ-400/65 LGJ-400/95 LGJ-500/35 LGJ-500/45 LGJ-500/65 LGJ-630/45 LGJ-630/55 LGJ-630/80 LGJ-800/55 LGJ-800/70 LGJ-800/100	375 425 405 475 405 405 505 405 425 445 555 420 445 455 475 475 475 495 515 515 565 505 515 525 545 575 610 565 565 585 610 635 700 615 615 645 625 665 705 755 805 805	250 300 280 350 280 280 380 280 300 320 420 295 320 330 350 350 350 370 390 390 420 380 390 400 420 430 460 440 440 440 460 480 520 480 480 510 490 510 550 580 630 630	55 55 55 55 55 55 55 55 55 55 65 55 55 55 55 55 55 55 55 55 65 55 55 55 55 65 70 55 55 65 70 70 80 70 70 70 70 80 80 100 100 100	190 190 200 200 205 205 205 205 205 205 215 210 210 210 210 230 230 230 230 250 250 250 265 265 265 265 265 270 270 270 270 270 270 260 260 260 290 290 290 335 335 335	φ26 φ30 φ26 φ32 φ26 φ26 φ34 φ30 φ30 φ30 φ36 φ30 φ30 φ30 φ30 φ32 φ32 φ32 φ36 φ36 φ36 φ40 φ40 φ40 φ40 φ40 φ42 φ45 φ45 φ45 φ45 φ48 φ48 φ52 φ52 φ52 φ60 φ60 φ60 φ65 φ65 φ65	φ12 φ14 φ12 φ18 φ14 φ14 φ20 φ12 φ14 φ14 φ22 φ12 φ14 φ14 φ16 φ14 φ16 φ18 φ16 φ16 φ20 φ14 φ14 φ14 φ16 φ18 φ22 φ18 φ18 φ20 φ22 φ22 φ24 φ16 φ18 φ22 φ60 φ60 φ60 φ65 φ65 φ65	φ16 φ16 φ16 φ16 φ16 φ16 φ18 φ16 φ16 φ16 φ18 φ16 φ16 φ16 φ16 φ16 φ16 φ18 φ18 φ18 φ20 φ16 φ18 φ18 φ18 φ20 φ22 φ18 φ18 φ20 φ22 φ22 φ24 φ22 φ22 φ22 φ22 φ24 φ24 φ26 φ26 φ26	18 18 18 20 18 18 22 18 18 18 22 18 18 18 20 20 20 22 22 22 24 22 24 24 24 24 26 26 26 26 28 28 30 30 30 30 34 34 34 38 38 38	16.0 40.5 22.3 55.4 33.5 35.4 74.2 26.2 39.0 45.5 93.5 31.3 44.3 51.4 61.8 56.5 61.1 76.2 71.9 79.2 97.0 64.7 71.9 79.3 87.6 97.3 121.6 84.4 91.2 98.7 117.3 128.5 162.8 113.6 121.7 146.3 141.3 156.2 183.3 182.0 196.7 229.0
