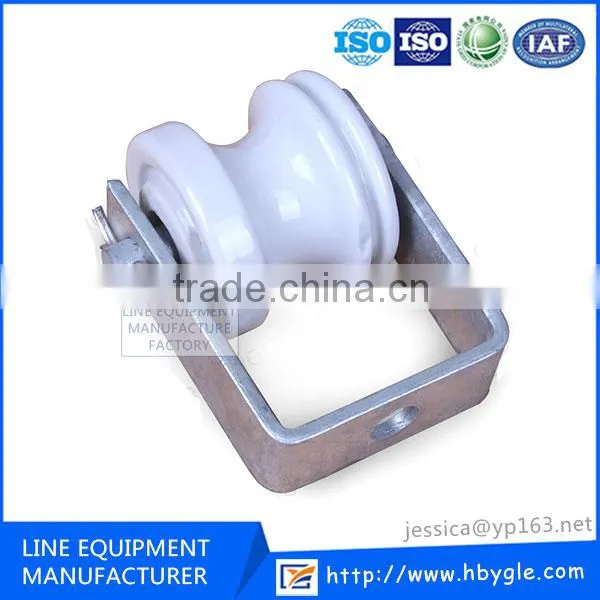

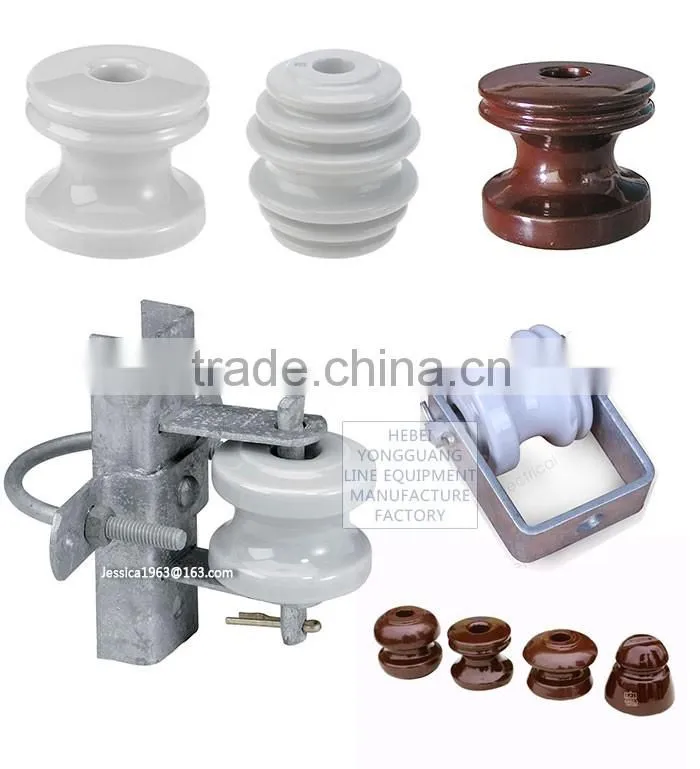

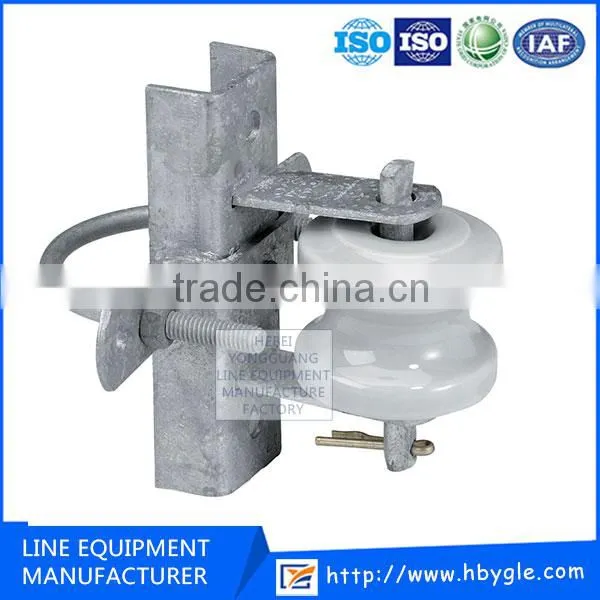

Help CenterHot Sale!!! Lower Price All Type Ceramic Spool Insulator/ANSI 53 Series Spool Insulator /ceramic Insulator
Related Products
-
ANSI 53 Series Spool Ceramic Insulator /good Quality Porcelain Insulator/made in ChinaUS$ 0.2 - 5MOQ: 100 Pieces -
ANSI 56 Serials Strain Porcelain Insulators For Lines/ceramic Pin Type Insulator 22kv Manufacturer of ElectricityUS$ 0.5 - 10MOQ: 500 Pieces
-
11KV Pin Type Porcelain Support Insulator / ANSI 56 Series for High Voltage Porcelain InsulatorUS$ 0.5 - 10MOQ: 200 Pieces
-
ANSI 56 Serials Strain Porcelain Insulators For Lines/straining Post Ceramic Insulator/Pin in Sulator for Transmission LineUS$ 0.5 - 10MOQ: 500 Pieces
-
Porcelain InsulatorUS$ 3 - 10MOQ: 1000 Pieces
1) Factory price
2) BS. DIN. IEC .ANSI
3) OEM/ODM
4) Free samples avaiable

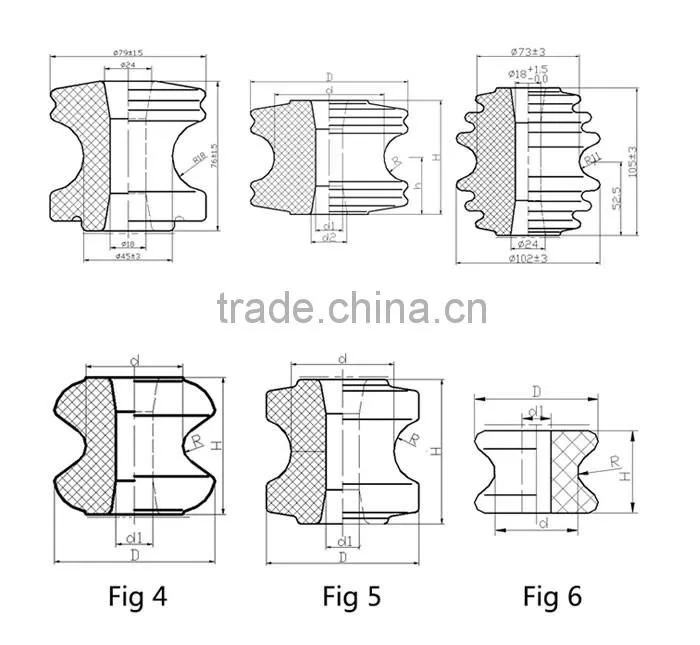

| spool type |
|
|
NSI CLASS |
Fig No |
Main Dimensions mm |
Transverse Strength kN |
Low Freuqency Voltage kV | ||||||||
| Dry Flashover | Wet Flashover | |||||||||||
| H | h | D | d | d1 | d2 | R | Vertical | Horizontal | ||||
| 53-1 | 2 | 54 | 27 | 57 | 45 | 18 | 22 | 11 | 8.9 | 20 | 8 | 10 |
| 53-2 | 1 | 76 | 38 | 79 | 45 | 18 | 24 | 18 | 13.3 | 25 | 12 | 15 |
| 53-3 | 2 | 81 | 40.5 | 76 | 45 | 18 | 24 | 11 | 17.8 | 25 | 12 | 15 |
| 53-4 | 2 | 76 | 38 | 105 | 73 | 18 | 24 | 16 | 20 | 25 | 12 | 15 |
| 53-5 | 3 | 105 | 52.5 | 102 | 73 | 18 | 24 | 11 | 26.7 | 35 | 18 | 25 |
Dear Customers:
Welcome to visit our website and I hope our products will satisfy you.
Our main products are Overhead Line Fitting,Pole Line Hardware,Fuse,Electric PowerFitting,Insulator and other line equipment products.
We enjoy a good reputation among customers due to unique styles and consisitently high quality.
Our samples are free for charge.
Professional Sales online to answer your question timely within 12 hours.
Just slow down your fast lifestyle and enjoy our products.
Please don't hesitate to contact us for more information about eye nuts.Warmly welcome you to visit our factory!Hope we can set up mutually benefically business relationship with you.
Your Faithfully
YONGGUANG
