Help CenterLow Cost Rotary Bag Food Vacuum Packing Machine
Related Products
-
Low Price Rotary Bag Food Vacuum Packing MachineUS$ 25,000 - 80,000MOQ: 1 Set -
Automatic Continuous Stretch Film Vacuum Packaging MachineUS$ 45,000 - 60,000MOQ: 1 Set
-
Automatic Food Cheese Dates Vacuum Packing MachineUS$ 45,000 - 60,000MOQ: 1 Set
-
Automatic Vacuum Meat Dry Fish Snack Packing Pickle Packaging MachineUS$ 64,000 - 80,000MOQ: 1 Set
-
Chicken Cheese Pickle Packaging Packing Machine for Food CommercialUS$ 64,000 - 80,000MOQ: 1 Set
Specifications
Food Vacuum Packing MachineBag Packing Machine
Rotary Packing Machine
1. feature in high speed and fine stabilization
2. easy to operate
3. save material
4.pack fast and steady
Automatic Packing Machine
Features and functions:
1. Use Panasonic servo motor, touch screen, PLC and other control systems, machine operation
easy adjustment.
2. Is equipped with world-class original German vacuum pump, fast, stable quality, durable
and reliable.
3. The use of advanced cross-cutting, slitting systems, replacement of easy operation.
(Boundless punching save material).
4. Die chute positioning retooling convenient and accurate mold with cooling system.
5. Optical tracking, the choice of color covering film or film for packaging, reduce costs and
improve product quality.
6.The consumer products packaging requirements, on the basis of the vacuum can be filled with
nitrogen or other packaged mix.
7. Imported wide open chain, for a variety of thicknesses of soft membrane, the dura mater and
semi-dural stretch forming.
8. Packaging appearance, uniform foam quality, good sealing performance.
9. Machine materials, the body part of the whole 304 # stainless steel, aluminum internal frame
structure and channel components.
10. Host material part of the assembly on the automatic feeding device, loaded liquid materials.
11. Machines including vacuum, pneumatic automatic adjustment function, vacuum, pneumatic
functions can be selected individually synchronized.
12. Laser coders assign a code part, legible, visible and beautiful.
Main technological parameter:
Model |
DDLZ-420C |
DDLZ-320C |
The film width |
392mm |
292mm |
Under the film width |
422mm |
322mm |
Vacuum degree |
≤200Pa |
≤200Pa |
Compressed air |
≥0.6MPa |
≥0.6MPa |
Cooling water |
≥0.15MPa |
≥0.15MPa |
Power supply |
380V 50HZ/220V 60HZ |
380V 50HZ/220V 60HZ |
Total Weight |
1700kg |
1300kg |
Dimensions |
6150×1200×1900mm |
5100×900×1800mm |
The packaging machine is my factory's latest high-precision equipment, the use of foreign advanced technology machines, absorb our DDLZ series stretching vacuum installed features, innovative design and produce their own automated assembly line packaging machinery, is the first domestic product, completely replace the imported equipment. It applies to all kinds of food, meat, seafood, fruits and vegetables and other products for vacuum, inflatable, plastic plastic stick body/Paper/hard plastic packaging.

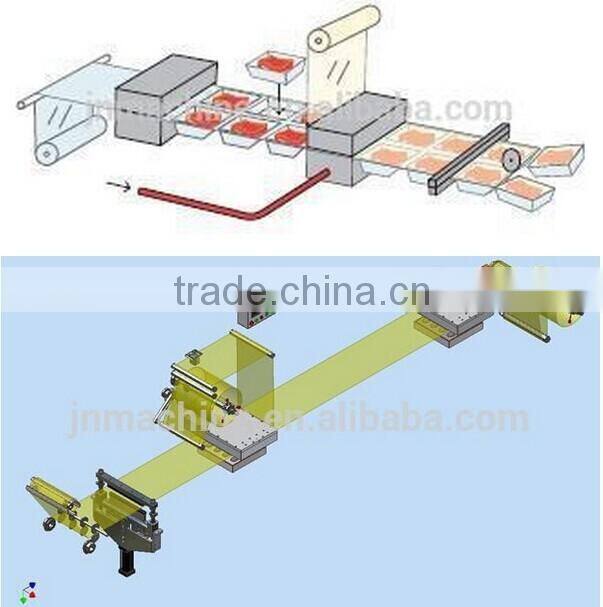

Machine schematics (diagram):

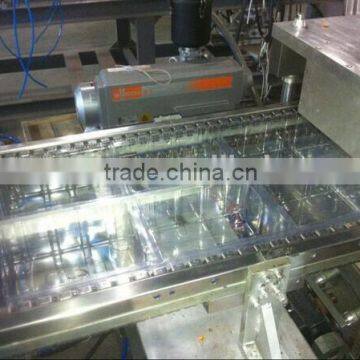

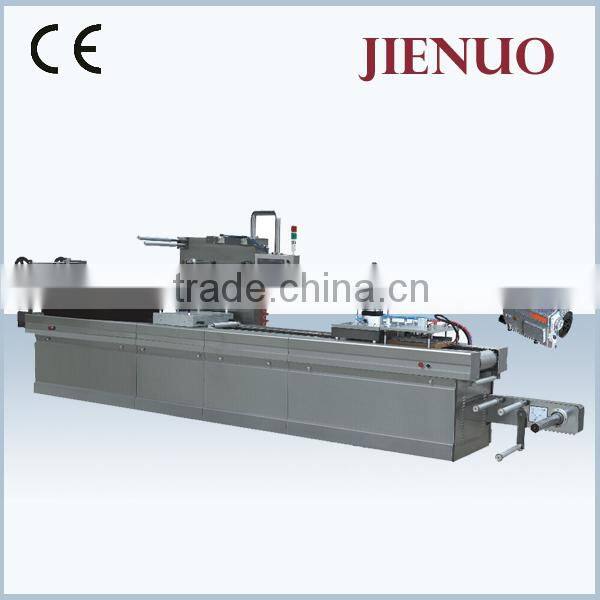

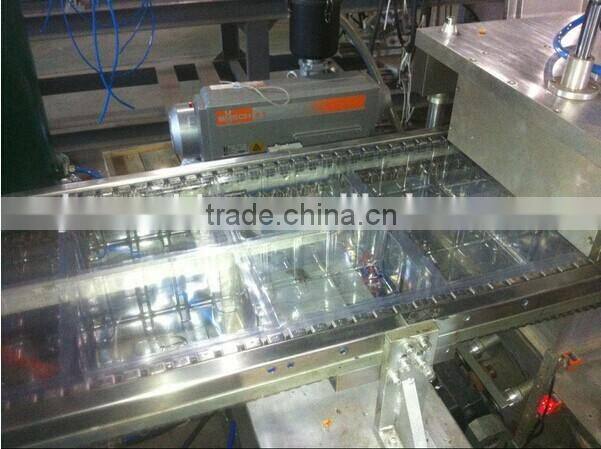

Machine physical map (part):
1. Any questions in technical can contact us by e-mail and deal with it.
2. Spare parts replacement and repair service.
3. Engineer can be distributed into overseas required.
1.Pre-sale services:
♦ Design customised project for clients.
♦ Design and manufacture products according to clients special requirement.
♦ Train technical personnel for clients.
2.Services during the sale:
♦ Pre-check and accept products ahead of delivery.
♦ Help clients to draw solving plans.
3.After-sale services:
♦ Assist clients to prepare for the construction scheme.
♦ Install and debug equipment.
♦ Train the first-lin operators.
♦ Examine equipment.
♦ Take initiative to eliminate the troubles immediately.
♦ Provide technical exchanging.

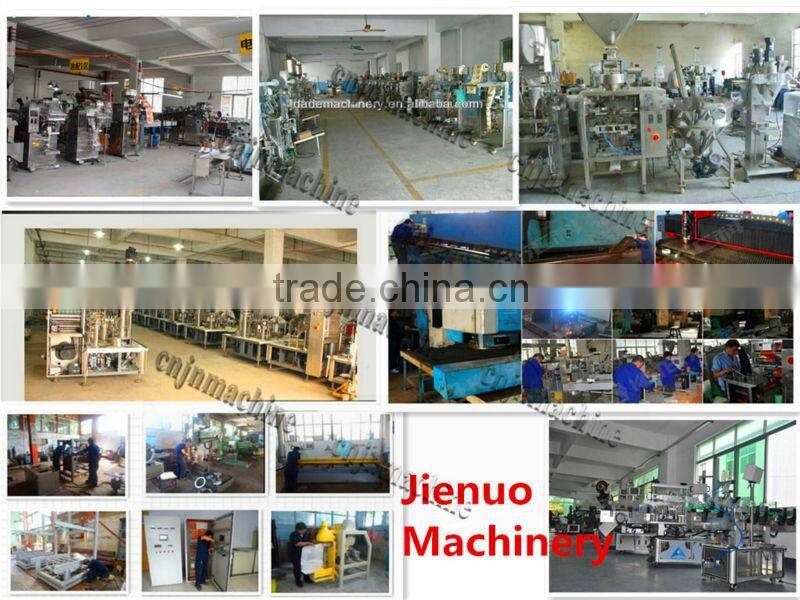

Our Business Range
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company which is mainly engaged in development, production and related services for pharmaceutical industry, food industry, cosmetics industry, stationery industry, etc.
We do business for mainland customers and also do exporting our products to a lot of different countries and areas around the world such as the United States, UK, Mexico, Italy, Australia, Poland, Philippine, South Africa, Malaysia, Thailand, Pakistan, Dubai and so on...
We have been the manufacturer of packing machine for 7 years. If you are interested in our Packing Machine, please contact me without hesitation. we will give you the best price.
Best regards
Alice
Company: Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Tel : 0577-66856267
Skype: alice3311000
Mobile:86-15386156182
Fax: 0577-66856268
QQ: 374686042
MSN: Alice19930804@hotmail.com
Q1.What do you have any training?
We can train your staff to use our machine properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
Q2.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q3.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like how to operate PLC .And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
