Product Details
Condition: | New | Application: | Chemical, Commodity, Food, Medical | Packaging Type: | Bags, Film, Pouch |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Pneumatic |
Voltage: | 220V 50HZ/60HZ | Power: | 5KW | Place of Origin: | Zhejiang, China |
Brand Name: | Jienuoc | Model Number: | DXD-120 | Dimension(L*W*H): | 2200mm*1000mm*1500mm |
Weight: | 1300KGS | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

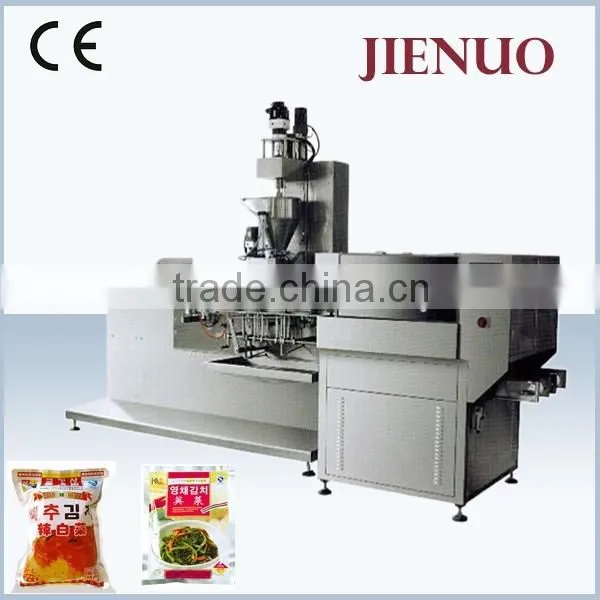

CE approved vacuum packing machine for plastic bags
Two major benefits: reduce labor, improve production efficiency.
♦Features and functions
1.Pre-made bags
2.Automatic measurement of filling and sealing;
3.Excellent sealing quality;
4.Excellent stainless steel making;
5.Computer PLC control, touch screen display in Chinese;
6.Can be directly connected to the vacuum
7.Automatic feeding hopper when warehouse have no material
Working Process:
1.Give empty bag
2.Opened bag
3.Feeding
4.Plus liquid (optional) 5.Translocation vacuum 6.Sealing
7.Output packages
♦Technical parameters (suitable for 10 - 100 g small package)
1.Horizontal packing machine
Model | DXD-120 |
Working Process | 1.Give empty bag 2. Opened bag 3.Feeding 4.Plus liquid 5.Translocation vacuum 6.Sealing 7.Output packages |
Packaging Materials | PA/PE,PET/PE,Aluminum and other sealing film |
Bag Size | W:50-120 L:80-180 |
Packing speed | 50~70 Bags / min (speed is determined by the weight of the product itself and filling) |
Filling range | 10g~100g |
Total power | 5KW |
Scope | Various types of pickles |
Weight | 1300KG |
Dimensions | 2200mm*1000mm*1500mm |
Compressed air consumption | 0.6 m3 / min (compressed air provided by the user) |
2.Pickles measuring machine
Combination Scale Model | Pickles measuring machine |
Weighing range | 10g-100g |
Weighing Accuracy | ±2 g |
Maximum capacity speed | 60bags / min |
The default number of products | 50 |
Hopper form | Auger |
Drive mode | Servo motor |
Interface | LCD Monitor |
Power | 1.5KW |
Hopper capacity | 1000ml |
Body size (L W H) | 800mm*600mm*1200mm |
Compressed air consumption | 0.6m3 / min (compressed air provided by the user) |
3.Vacuum sealing machine
Vacuum Machine Model | Automatic Bag vacuum machine |
Bags range | Length:80~180mm Width50~150mm |
Speed | 40~60bags / min (according to material and several bags size) |
Power | 8KW |
Vacuum | Import |
Interface | Striking screen |
Drive mode | Servo motor |
Pneumatic components | Festo |
Equipment and Materials | Stainless steel |
Compressed air consumption | 0.6 m3 / min (compressed air provided by the user) |
♦Sample
1. Any questions in technical can contact us by e-mail and deal with it.
2. Spare parts replacement and repair service.
3. Engineer can be distributed into overseas required.
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company which is
mainly engaged in development, production and related services for pharmaceutical industry, food
industry, cosmetics industry, stationery industry, etc.
We have been the manufacturer of packing machines for 10 years. If you are interested in our automatic
packing machines, please contact me without hesitation. we will give you the best price.
Sunny Luo
Company: Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Tel : 0577-66856266 Fax: 0577-66856268
Mobile:86-15267082442 QQ: 2777436905
Skype:angeljnmachine
Q1.What's payment terms,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer
fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing
like how to operate PLC .And we will sent you manual and video ,we suggest you to come to visit our
factory to learn more thing by yourself , and if there is something goes wrong , you can call us,video-chat,
email us.And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as
you required.
We provide you with sincerely service, if you have interest,contact us NOW!!!
