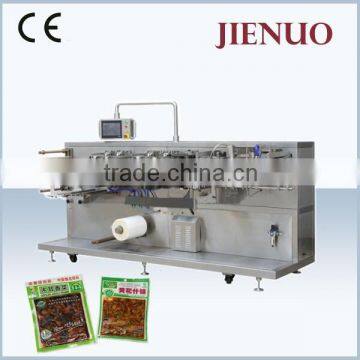

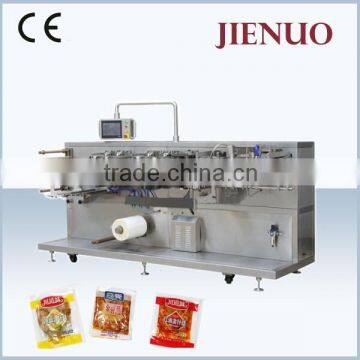

Automatic high speed candy packing machine
Contents: Combines with 10-head weigher, bucket elevator, working platform.
♦ Features
OPF-180 Automatic Horizontal Film Roll Packing Machine is a high quality to meet the
requirements of packaging, especially suitable for production of large users, can realize the three sides
sealing, four sides sealing bag, wide flat bottom bag, hanging bag. Suitable for powder, granule, liquid,
paste, paste, solid etc. various packaging materials packaging requirements: the roll of film forming,
reduce the packaging cost.
1. Machine transmission parts are made of high quality stainless steel manufacturing, comply with food
production enterprises hygiene standards and the requirements of corrosion protection.
2. Electrical equipment and pneumatic control elements adopt international famous brand.
♦ Technical Parameters
Product packaging |
Powder, grain, liquid, mixed material |
Production speed |
40-70 bags/minutes(The speed depends on the product status and filling weight) |
Yummy treats station |
2 |
Film roll diameter |
450mm |
Film roll width |
440mm |
Pouch width |
90mm-180mm |
Pouch height |
120mm-220mm |
Max volume |
500g |
Electricity consumption |
5KW |
Air consumption |
0.3 m3/min |
Air pressure |
0.5-0.7Mpa |
Voltage |
380 V 220V 415V 50-60HZ |
Main Engine Weight |
1000 kg |
Main Engine Size |
2800mm×1300mm×1500mm |
♦ Working Process
1. Electric discharge film 2. Connecting film 3. Print production date 4. Bag forming
5. Bottom seal 6. Vertical seal 7. Pounching bag hanging hole
8. Cursor on the version 9. Tearing notch 10. Servo advance 11. Cutting
12. Pouch catching 13. Pouch opening 14. First filling 15. Second filling
16. Top Seal 17. Outlet
♦ Samples
1. Any questions in technical can contact us by e-mail and deal with it.
2. Spare parts replacement and repair service.
3. Engineer can be distributed into overseas required.
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company which is
mainly engaged in development, production and related services for pharmaceutical industry, food
industry, cosmetics industry, stationery industry, etc.
We have been the manufacturer of packing machines for 10 years. If you are interested in our automatic
packing machines, please contact me without hesitation. we will give you the best price.
Anny Xie
Company: Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Tel : 0577-66856266 Fax: 0577-66856268
Mobile:86-15067768988
Q1.What's payment terms,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer
fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing
like how to operate PLC .And we will sent you manual and video ,we suggest you to come to visit our
factory to learn more thing by yourself , and if there is something goes wrong , you can call us,video-chat,
email us.And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as
you required.
We provide you with sincerely service, if you have interest,contact us NOW!!!
