Small Sachet Detergent Masala Chili Powder and Filling Packing Machine Price
Summarize:

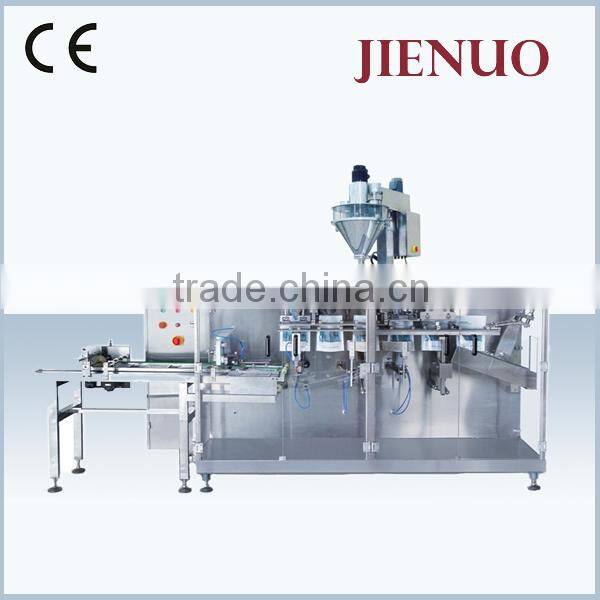

This automatic packing machine includes auger filler and the horizontal pre-made packing machine, it is specialized in the powder (such as glucose, milk powder, coffee powder, seasoning, and additive)
Function and Characteristics:
- Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
- Automatic checking function: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
- Safety device: machine stop at abnormal air pressure, heater disconnection alarm.
- With liquid mixing device, prevent the micro-particle deposition of materials.
- The machine is easy to clean, easy maintenance.
- The part where touch to the material is made of stainless steel.
The set of automatic horizontal pre-made powder packing machine includes:

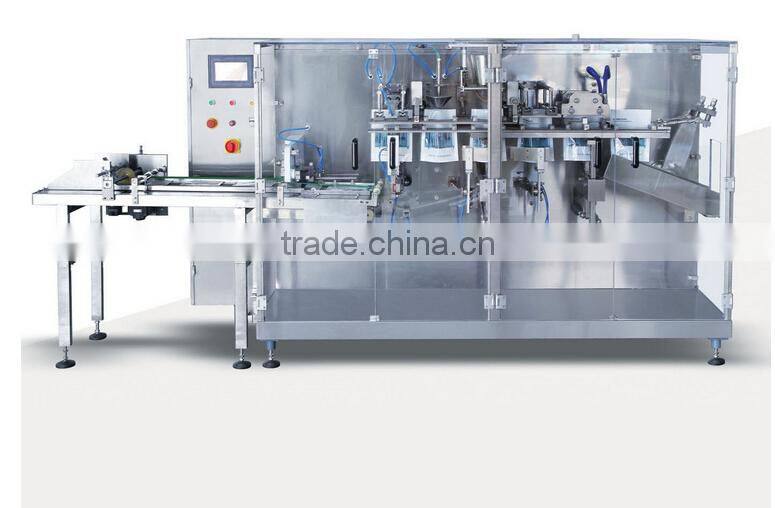

The Standard Horizontal pre-made packaging machine
Versatile ---horizontal packaging machine characteristic
Multi-use of one machine ---separating feeding,to satisfy a variety of materials packaging requirements(powder,liquid,paste,solid,)
Multi-bag of one machine---after simple adjustment, a packaging machine may meet the packaging needs of a variety of bags.(such as three-side-seal, four-side-seal, doy pack, zipper, spout)
Multi-material of one bag---multi-position blanking way, to overcome the disadvantages of packaging machine filling a single item in the past, the packaging machine is mixed to achieve a variety of materials packaging, to meet the ratio correctly.(such as oil, water, mixing materials)
Reduce costs---used roll firm packing, reduce the bag cost. So a horizontal= bagging machine + packaging machines.
Stable operation---using cam drive, purely mechanical movements, and the structure is sample.
Easy to maintain---simple mechanical structure, large space, easy to maintain.
Low failure rate---very few control components and detection device, avoid electronic failure. Purely mechanical construction reduces the failed node.
perfect skin --- Guaranteed by the unique, advanced and mature technology, product bags flat in appearance and the seal does not clamp the material did not leak.
reducing loss --- Packaging to ensure high precision, reducing material consumption.
Main technical parameters:
Packaging material |
Laminated film,PE,PP etc |
Speed |
30-70 bag/min |
Packaging accuracy |
Within ±1.5% |
Pouch width |
85mm-210mm/90mm-240mm(supply by user) |
Pouch height |
100mm-350mm(supply by user) |
Max volume |
2500ml |
Electricity consumption |
4Kw |
Air Consumption |
0.6 m3/min |
Voltage |
3phase 380V 3phase 220V 3phase 415V 50-60HZ |
Weight |
1450 kg |

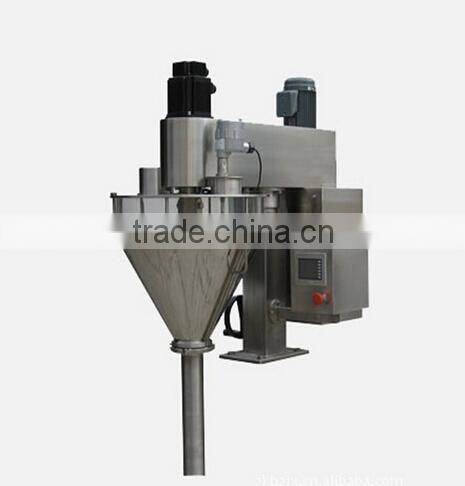

Powder feeding device: auger filler
Main Technical Data:
Hopper |
Quick disconnecting hopper 25L |
Packing Weight |
1 - 500g |
Packing Weight |
≤ 100g, ≤±2%; 100–500g, ≤±1% |
Filling speed |
40 – 120 times per min |
Power supply |
3P AC208-415V 50/60Hz |
Total Power |
0.93 KW |
Total Weight |
130kg |
Overall Dimensions |
800×790×1900mm |
Screw conveyer
Main Technical Data:
Lifting height |
2.2m : |
Lifting angle |
45°C |
lifting speed |
2m³/h |
Feed tube diameter |
102mm |
Hopper |
Volume 100L |
Samples:
