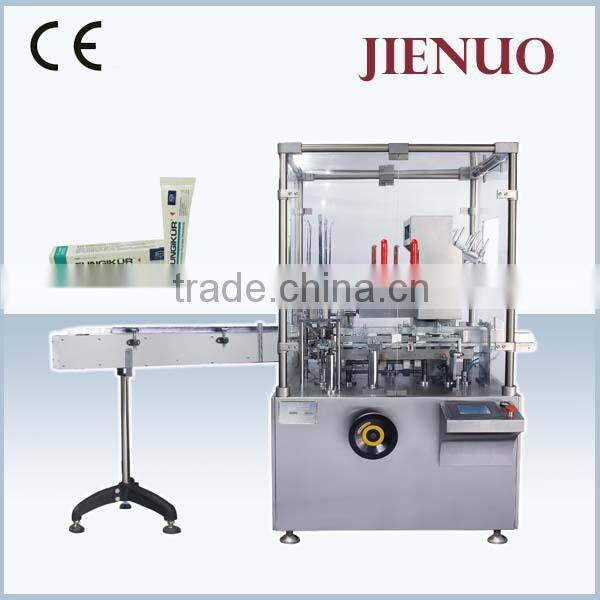

Automatic Capsule Soap Tube Cartoning Machine
Product description
This machine is suitable for cardboard cae packaging of tabe toothpaste. onintment . and soft package(packed condoms). it consists of direction folding (1-4folds) and feeding equipment, cardboard case forming and feeding, batch number printng, sealing of case tongues at both end etc. The whole encasing process is finished automatically. It can be added hot-glue machine.
Samples
Features
- International famous brand of electrical component such as PLC touch screen, frequency inverters, etc. Adopt human-machine operation system.
- Automatically displaying device for trouble, speed and finished products counting. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
- No products not suction leaflet, no leaflet not suction carton. Automatic detection and rejection device for lacking blister goods and leaflets.
- Protecting automatically for overloading. Stable performance , operation is easy .
Main technical parameters
Encasing speed | 30-120 boxes/min | |
Box | Quality requirement | 250-350g/m2 |
Dimension rangeL×W×H | (65-155)mm×(30-85)mm×(c15-50)mm | |
Quality requirement | 60-70g/m2 | |
Leaflet | Unfolded leaflet specificationL×W | (80-250)mm×(90-170)mm |
Fold range | (1-4) fold | |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 120-160L/min | |
Power | 220V/50Hz | |
Motor power | 0.75kw | |
Machine dimension(L×W×H) | 2300mm×1140mm×1800mm | |
Machine weight | 1200kg | |
Details of carton machine
Certification
The packaging machinery will be filled with desiccant all the part and packed by film film firstly to avoid moist .Then The machine will be packed by plastic bag. Finally, the whole machine will be packed by composite material box .
1.Pre-sale services:
♦ Design customised project for clients.
♦ Design and manufacture products according to clients special requirement.
♦ Train technical personnel for clients.
2.Services during the sale:
♦ Pre-check and accept products ahead of delivery.
♦ Help clients to draw solving plans.
3.After-sale services:
♦ Assist clients to prepare for the construction scheme.
♦ Install and debug equipment.
♦ Train the first-lin operators.
♦ Examine equipment.
♦ Take initiative to eliminate the troubles immediately.
♦ Provide technical exchanging.

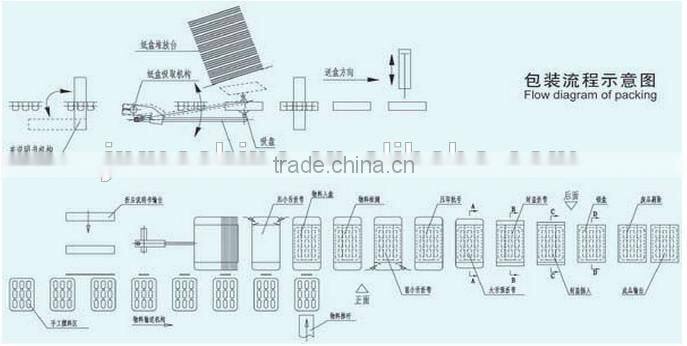

Working Process
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company which is mainly engaged in development, production and related services for pharmaceutical industry, food industry, cosmetics industry, stationery industry, etc.
We do business for mainland customers and also do exporting our products to a lot of different countries and areas around the world such as the United States, UK, Mexico, Italy, Australia, Poland, Philippine, South Africa, Malaysia, Thailand, Pakistan, Dubai and so on...
1.Does it easy to operate and what can i do if it doesn't work?
First ,our Packing Machine is stable and easy to operate by one man ,what you do is just operate the PLC clean the machine regularly .And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
2.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C .
3. How about the Clients Traning Services of your company?
We can train your staff to use our machine properly. It means that we offer CustomersTraining, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
4.Why choose us?
Don't you think they are looking good and suitable to your requirement? Why will you choose us? As we are specializing in these products for more than 10years with high quality and competitive price as well as our service, being high evaluation by our clients.
Our products are fully made CE Certification All the products have been exported to overseas
countries and wildly used in food and chemical industry sector etc ....
We sincerely welcome customers from all over the world to establish and develop long-terms trade relationships on the basis of equality and mutual benefits.
