Specifications
saw balde tips1.10 years professional experience
2. 100% new material.
3. More durable

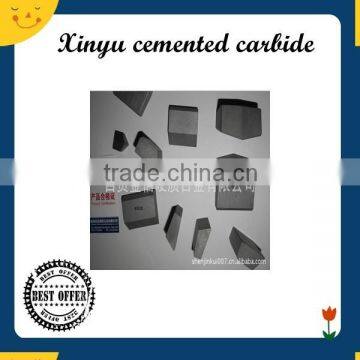

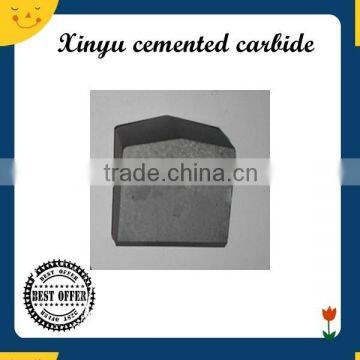

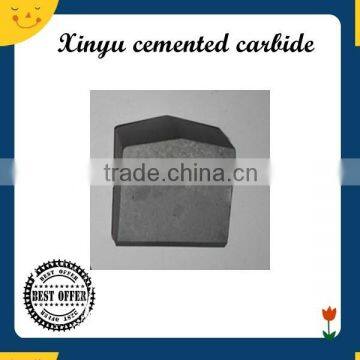

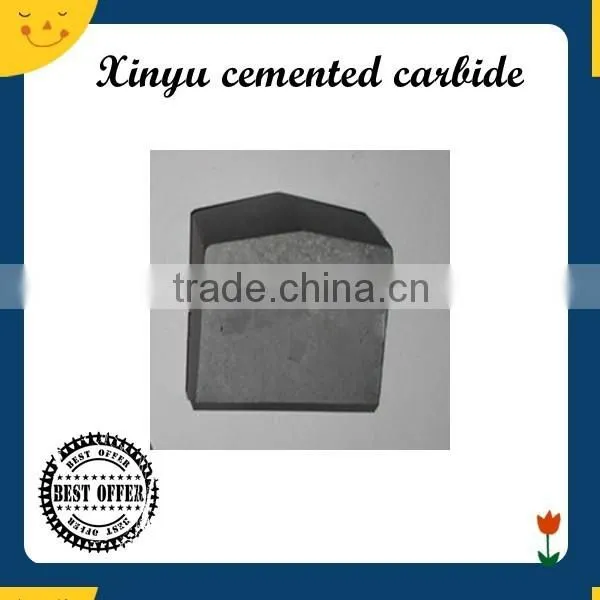

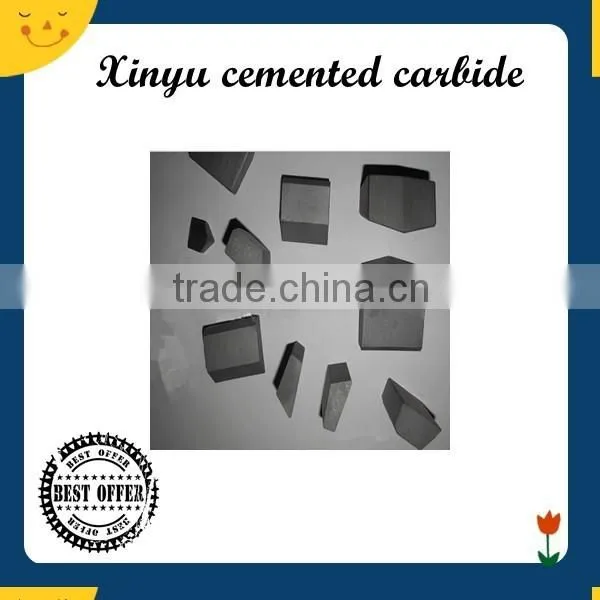

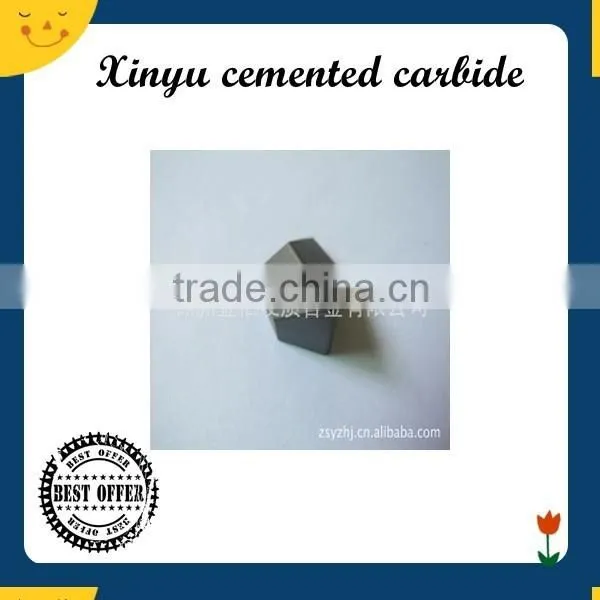

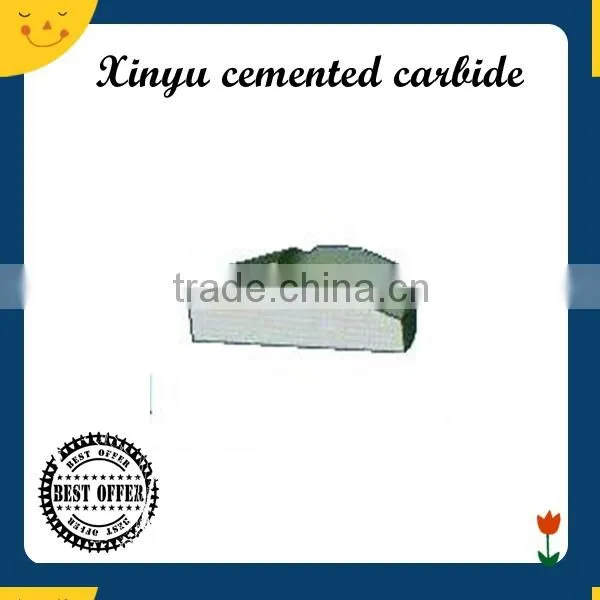

saw balde tips Tungsten carbide insert
Darwing Picture
Specification
Grades, Properties And Applications Recommended
Grades |
Density(g/cm³) |
Hardness(HRA) |
T·R·S(N/mm2) |
Application |
YG4C |
15.00 |
89.5 |
1800 |
Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
14.80 |
89.5 |
1700 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.50 |
87.0 |
2400 |
Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Packaging
Our Company
Established in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licensed import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.
Certification
We have passed BV,ISO and other certifications
