Cemented Carbide Pleate Tungsten Carbide Wear Part
- 30000 Kilogram / Kilograms per Month
- Tsingdao
- T/T
- CD-650 High Precision Tungsten Carbide Blank for Carbide Punches Die Inserts
- Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and Rivets
- Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing Side
- YG25/GT55 tungtsen carbide punching dies for bolt
- K10/K20 Tungsten Carbide Valve Ball with Hollow Hole for Valve Pumps
- Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray Pumps
Product Details
Place of Origin: | Shandong, China | Brand Name: | Xinyu | Model Number: | tungsten carbide wear part, any kinds can do just follow your drawings |
Alloy Specification: | YG8 | Particle: | 2-10 |
Product Description
Cemented Carbide Plate Tungsten Carbide Wear Part Durable
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.
Advantage:
1. Free sample
2. Direct factory produce and sale
3. Different grades are available
4. Custom-made available
5. Precision processing and strict product inspection
6. Advanced Equipments and Professional technicians
7. Gurantee the bulk quality are in accordance with the samples
8. ISO 9001-2008 Quality Control System
9. 100% virgin tungsten carbide powder
10. High speed cutting,wears well & long service life
11. High hardness, high strength, wear resistance
12. 10 years professional experience

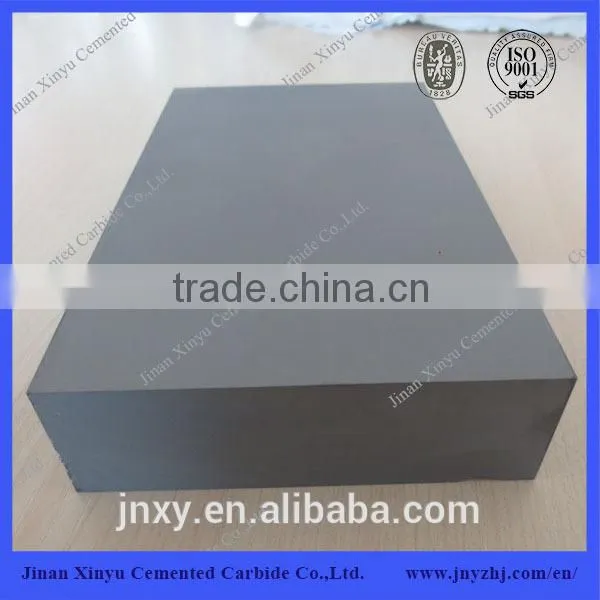

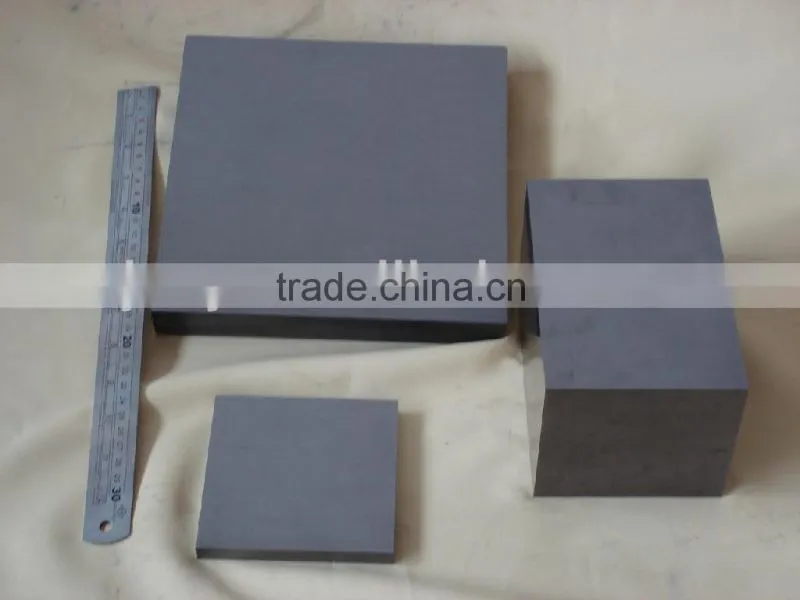

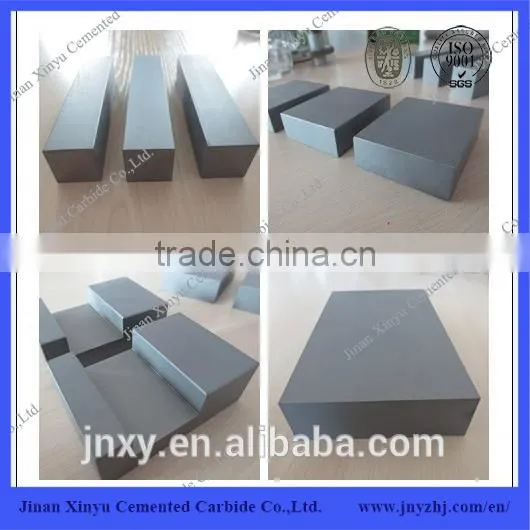

Photos--Tungsten Carbide Flat Plate, Bar, Block, Sheet, Blade
Dimension--Customized Drawing OK
TYPE | Dimension mm | ||
B | L | C | |
S303 | 3 | 15 | 1.5 |
S306 | 6 | 20 | 4.0 |
S308 | 8 | 20 | 6.0 |
Grades, Properties And Applications Recommended
Grades | ISO Grade | Chemical Composition | Density (g/cm3) | HRA | T.R.S (N/mm2) |
YG4C | 96%WC, 4%Co | 15.00 | 89.5 | 1800 | |
YG6 | K20 | 94%WC, 6%Co | 14.80 | 89.5 | 1700 |
YG8 | K20-K30 | 92%WC, 8%Co | 14.70 | 88.5 | 2300 |
YG8C | K30 | 92%WC, coarse | 14.70 | 88.0 | 2300 |
YG9C | YK20 | 94%WC, 6%Co | 14.45 | 87.0 | 2400 |
YG11C | 89%WC, 11%Co | 14.40 | 86.5 | 2450 | |
YG13C | 87%WC, 13%Co | 14.30 | 86.0 | 2500 | |
YG15 | K40 | 85%WC, 15%Co | 14.00 | 86.5 | 2500 |
YG16 | 84%WC, 16%Co | 14.10-14.30 | 87.5 | 2400 | |
YG20 | 80%WC, 20%Co | 13.40-13.70 | 85.0 | 2254 |
