Home > Products > Cemented carbide block > tungsten carbide gripper inserts for chuck jaws
tungsten carbide gripper inserts for chuck jaws
- 10000 Ton / Tons per Month
- qingdao jinan
- T/T Credit Card
-
CD-650 High Precision Tungsten Carbide Blank for Carbide Punches Die Inserts
-
Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and Rivets
-
Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing Side
-
YG25/GT55 tungtsen carbide punching dies for bolt
-
K10/K20 Tungsten Carbide Valve Ball with Hollow Hole for Valve Pumps
-
Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray Pumps
Product Details
| Place of Origin: | Shandong, China | Brand Name: | JINAN XINYU | Model Number: | YG11 |
| Alloy Specification: | Conical buttons | Particle: | 2-10 |
Product Description

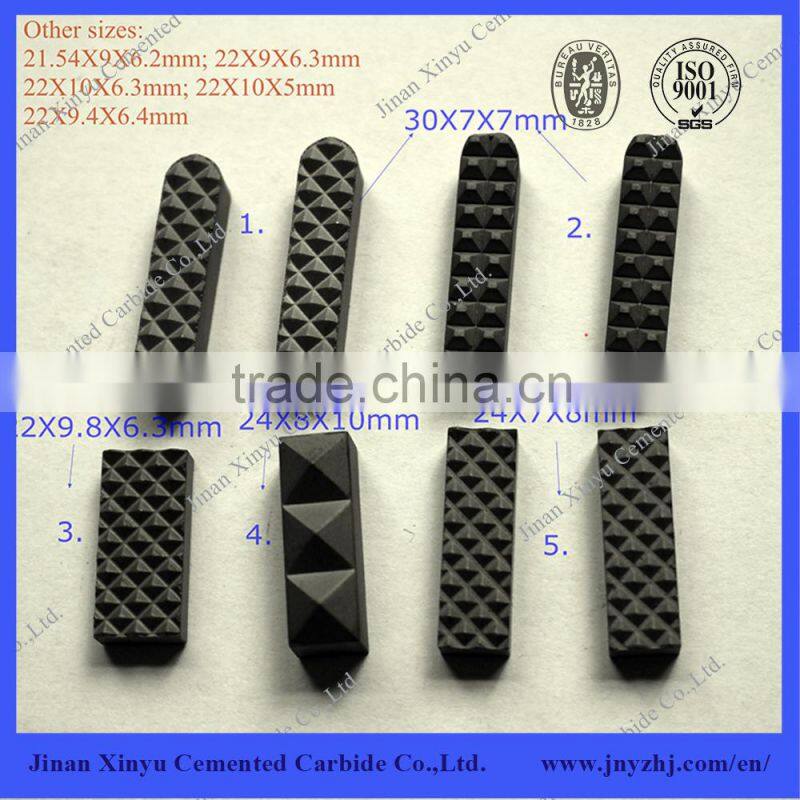

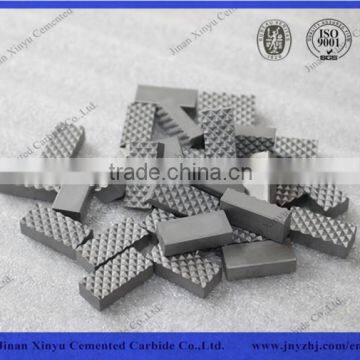

tungsten carbide gripper inserts for chuck jaws
tungsten carbide gripper inserts for chuck jaws
Application
Mainly used on roller bit, widely used on oil drilling and geological prospecting.
Advantage
1. Free sample
2. Direct factory produce and sale
3. Different grades are available
4. Custom-made available
5. Precision processing and strict product inspection
6. Advanced Equipments and Professional technicians
7. Gurantee the bulk quality are in accordance with the samples
8. ISO 9001-2008 Quality Control System
9. 100% virgin tungsten carbide powder
10. High speed cutting,wears well & long service life
11. High hardness, high strength, wear resistance
12. 10 years professional experience
Product pictures
Grades, Properties And Applications Recommended
Grades | Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 | 14.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Our Main Products
About us
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.
Payment Methods and Delivery
Contact Us
JINAN XINYU CEMENTED CARBIDE CO., LTD.
Address: Zhongmeng Village, Gaoguanzhai Town, Zhangqiu City, Shandong Province
Tel: +86 18254176052
Skype: xycarbide01
Whatsapp: +86 18254176052
Fax: 86-531-67897298
Website: www.jnxy.en.china.cn
If you have any questions or needs, please contact us on Trade Manager.
We will try our best to reply to your queries within 24 hours.
