Home > Products > Cemented Carbide Anvil for Diamond Production > china manufacturer diamond production tool--tungsten cemented carbide anvil/tungsten steel anvil
china manufacturer diamond production tool--tungsten cemented carbide anvil/tungsten steel anvil
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Chinese Factory Carbide 6-facet Diamond Anvil
-
tungsten hard metal anvil for diamond production china manufacturer
-
Hard Metal Carbide 6-facet Anvil for Diamond Production
-
Hot Sale Cemented Carbide Anvil for Diamond Production
-
Jinan Xinyu Hot Selling Tungsten Cemented Carbide Anvil for Diamond Production
-
professional supplier of Production Synthetic diamond Using YG8 Tungsten Carbide Anvil
Product Details
Place of Origin | Shandong, China | Brand Name | Xinyu | |
Model Number | D | Alloy Specification | YG8 | |
Particle | 1.0--1.5 |
Product Description
Specifications
1. ISO9001 certification2. ODM&OEM service
3. Fast delivery, payment methods
4. Sample available
5.100% virgin material
Diamond Production Tools--Tungsten Carbide Anvil/ Tungsten steel Anvil

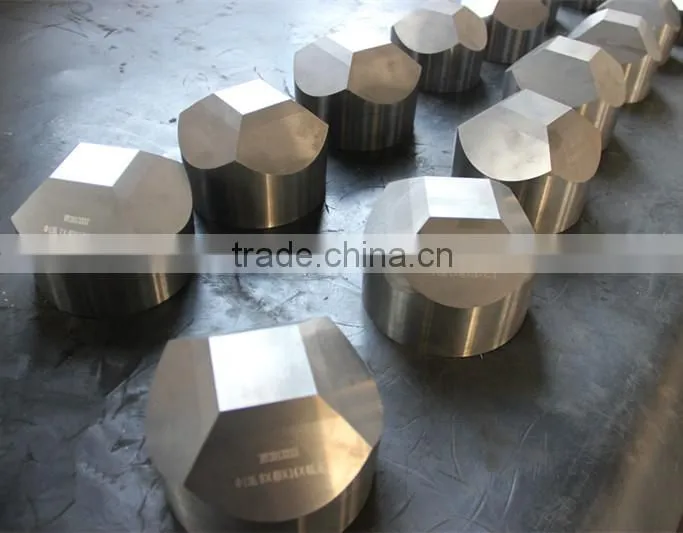

Tungsten Carbid Anvil: Used to make diamonds by the cubic press and PDC. 6 anvils are a team and it is of high hardness and high intensity.

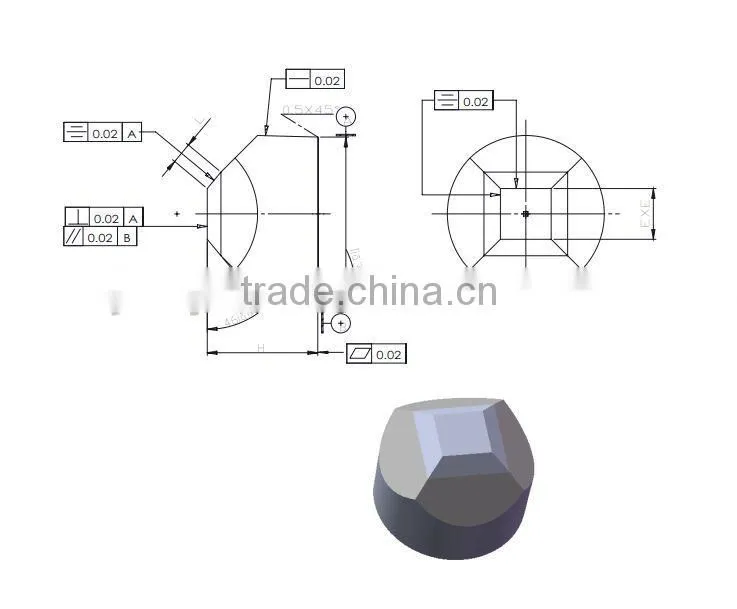

Drawing and Specifications:
TYPE | Dimension mm | |||
D±0.05 | a*a±0.05 | H±0.05 | F | |
Φ80 | 81.0~82.1 | 27.5*27.5 | 64.5 | 12 |
Φ85 | 85.1~85.2 | 31*31 | 64.5 | 12 |
Φ90 | 90.1~91.1 | 31.5*31.5 | 70 | 13 |
Φ105 | 104.5~105.5 | 36*36 | 76 | 13 |
Φ110 | 109.5~111.5 | 36*36 | 80 | 13 |
Φ115 | 114.5~115.5 | 38*38 | 83 | 13 |
Φ122 | 121.5~122.5 | 41.5*41.5 | 91 | 13 |
Φ127 | 126.5~127.5 | 44*44 | 95 | 13.5 |
Φ128 | 127.5~128.5 | 47*47 | 95 | 13.5 |
Φ130 | 129.5~130.5 | 48*48 | 95 | 13.5 |
Φ136 | 135.5~136.5 | 53*53 | 98 | 13.5 |
Φ142 | 141.5~142.5 | 55*55 | 100 | 13.5 |
Φ148 | 148.5~149.5 | 54*54 | 103 | 13.5 |
Φ160 | 160.1~160.9 | 62*62 | 110 | 15 |
Φ175 | 175.1~175.9 | 63*63 | 128 | 15 |
Φ199 | 199.1~199.5 | 77*77 | 142 | 15 |
Our Advantages:
1.Professional manufacture for tungsten carbide with more than 10 years experience. All prodycts have passed the ISO9001 certifications.
2.we have our own factory to produce the molds and products, so the delivery is fast. Also we have the professional sales teams to satisfy you well.
3.All products go throught in-process and final inspection. Strictly and complete quality control system.
4.Made from 100% vrigin material, stable and reliable quality.
5.We can accept order of all kinds of special designed products of tungsten carbide.
6.Various payment terms and delivery methods supported
7.Sample and free online technical servic is available
Tungsten Cemented Carbide Grades, Properties And Applications Recommended
Cemented carbide is a kind of alloy material which made of refractory metal hard compounds and bording metal throught powder metallurgy technology. It possess high sstength, high hardness,wear resistance and corrosion resistance. It is known as”industrial teeth” and widely uesd in Military industry, aviation, machinery, metallurgy, oil drilling, mining tools, electronic communications, construction, etc
|
|
|
|
|
YG4C | 15.00 | 89.5 | 1800 |
|
YG6 | 14.80 | 89.5 | 1700 |
|
YG8 | 14.70 | 88.5 | 2300 |
|
YG8C | 14.70 | 88.0 | 2300 |
|
YG9C | 14.50 | 87.0 | 2400 |
|
YG11C | 14.40 | 86.5 | 2450 |
|
YG13C | 14.30 | 86.0 | 2500 |
|
YG15 | 14.00 | 86.5 | 2500 |
|
YG16 | 14.10-14.30 | 87.5 | 2400 |
|
YG20 | 13.40-13.70 | 85.0 | 2254 |
|
About Us
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.
Our factory is located in Jinan hi-tech industrial development zone with beautiful environment, fresh air and convenient transportation system. We warmly welcome all the clients to patronage.
Product Certifications:

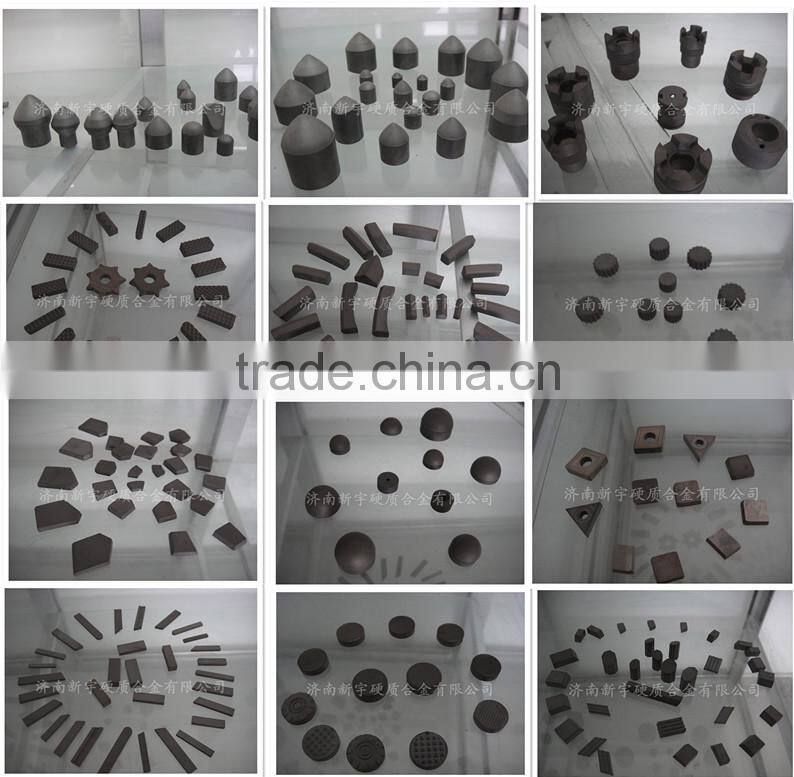

Products Range:

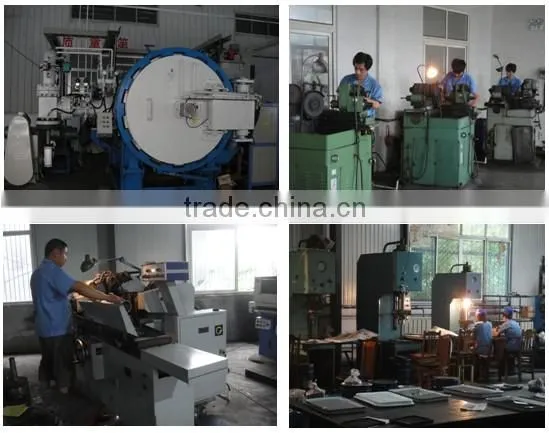

Our Factory:

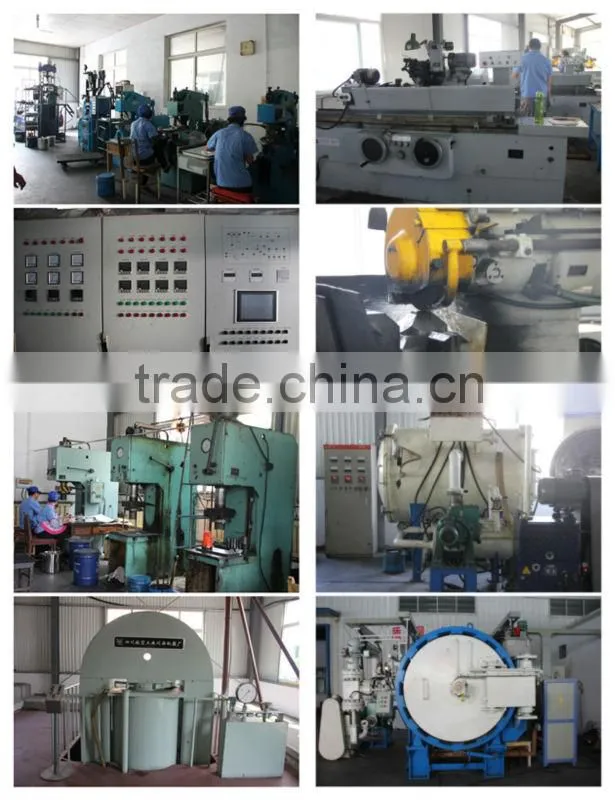

Equipments:
