H.264 8ch full d1 hi-3520 dvr support 3G with WIFI
Negotiable
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- CHINA
- Credit Card PayPal
You May Like
- Supply of Sodimax financial escort vehicle in-vehicle wireless 4G monitoring solution
- Supply school student delivery vehicle 4G wireless video real-time surveillance video recorder
- 4-channel 1080P single SD truck-mounted video recorder supports 4G network GPS full real-time monitoring
- SD Card 1080P HD Car Video Recorder H.264 Car Video Surveillance Solution
- 1080P HD MDVR Wifi GPS 3G Digital Video Recorder for School Bus CCTV System
- SD Card 720P HD Vehicle DVR H.264 Car Alarm Monitoring Solution
Product Details
Place of Origin: | Fujian, China | Brand Name: | XINSENYUE | Model Number: | XSY-DVR |
Product Description

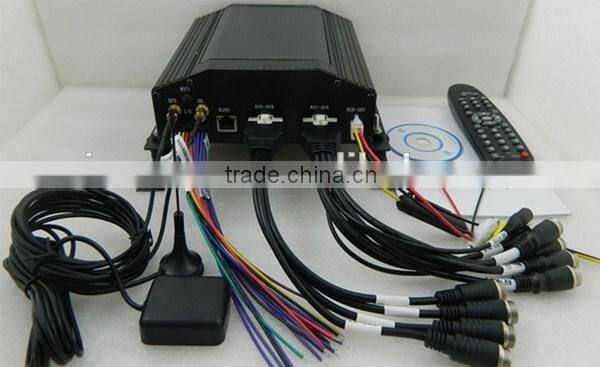

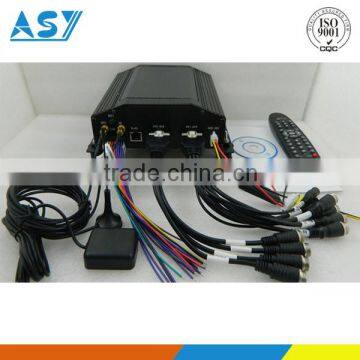

H.264 8ch full d1 hi-3520 dvr support 3G with WIFI
Product Description
Model No.:XSY-DVR digital monitor camera cctv system | |
Main features | |
Embedded RTOS system | |
HDD recording,support maximum 2T Hard Driver | |
8 Video input,1 Audio input,D1 or CIF recording selectable | |
Video output for live view, playback with monitor | |
H.264 Compression format. | |
Recording format: D1 and CIF, Support 1 channel D1 or synchronous 4 channels CIF recording D1: PAL 720*576 pixel or NTSC 720*480 pixel CIF: PAL 360*288 pixel or NTSC 360*240 pixel | |
All real-time recording | |
Over voltage,over current and short circuit protection | |
Built in G-sensor module, compelling recording when accident happened and cann't be overwrite | |
Built in 3G/Wifi/GPS module, remote control via phone and pc | |
Wide range power supply: 8V~36V | |
Support play-back video | |
Display format:Single image/four quad image/Nine quad image | |
Air head connector cable, not easy loosening | |
4 alarm input,buzzer input | |
Support RS485/Mouse | |
General Information | |
Video input | 8 way video input |
Audio input | 1 way audio input |
AV output | 1 way audio video output |
Alarm input | 4 way alarm input |
Alarm output | Buzzer |
Display format | Single image, Quad image |
Display Resolution | 720*576/ 720*480 |
Record Resolution | D1: PAL 720*576 pixel or NTSC 720*480 pixel CIF: PAL 360*288 pixel or NTSC 360*240 pixel |
Video compression | H.264 |
Record format | Real-time recording |
Status indicator | 4 LED (LAN,REC,GPS,POWER) |
RS485 | Yes |
GPS | Yes |
G-sensor | Yes |
Wifi | Yes |
IR | Yes |
Power supply | 8-36V |
Outer dimension | 250*174.8*69.5 mm |
Weight | 1.85kg |
Working temperature | -20~65°C |
Accessories | |
1* power cable | |
2* camera cable | |
1* instruction manual | |
1* remote control | |
1* GPS antenna | |
1* 3G antenan | |
1* transfer connector |
Application of bus monitor, realtime gps tracking passenger
4 channel bus digital wireless dvr h 264 , cctv system for school bus with cameras
