Passenger motion sensor digital counter :

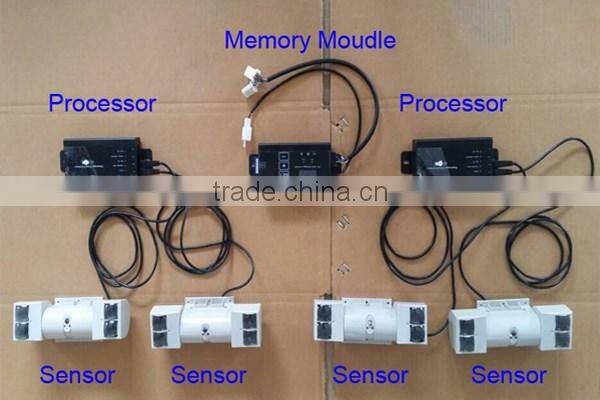

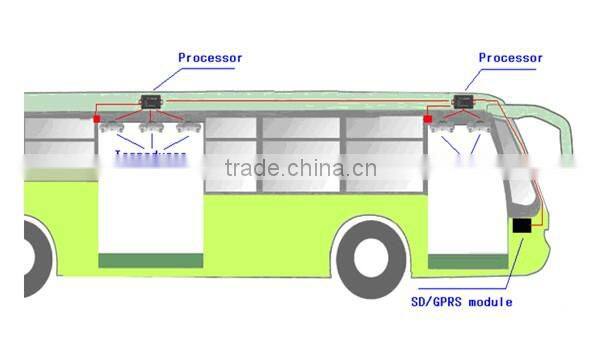

XINSENYUE- GKM bus passenger counting system includes senor, processor, Memory moudle. This device is installed for monitor people in the bus. It should be installed according to the size of bus door,in general, width 1.2 meter's door, there are one processor,3 sensors in each door.
Sensors are responsible for catching information of passenger passing and sending to processor.Door s
witch is for inspecting the state of bus doors,door switch is mounted on the door frame to check the state of door,start or close
detecting function of processor.when the magnetic departs from door switch,door opens,the indicator goes off,at this time,
processor starts counting function.otherwise,the indicator flashes.Processors are for receiving information from tranducers and counting.
The counter system is also can be connect to GPRS device, such as GPS. the passenger data can be transfer to the servcer, then you can check monitor the bus in the office at any time.
Main specification
Communication baud rate:9600bps
Max mounting distance between emitter and counter: 3m
Anti-vibration ability: amplitude 0.35mm, 60-200Hz; ACC 50m/s2
Temperature range: -20 ~ +65℃
voltage fluctuation: 15%
Detectable max traffic speed : 6m/s
Mounting of Pedestrian Flow Transducer

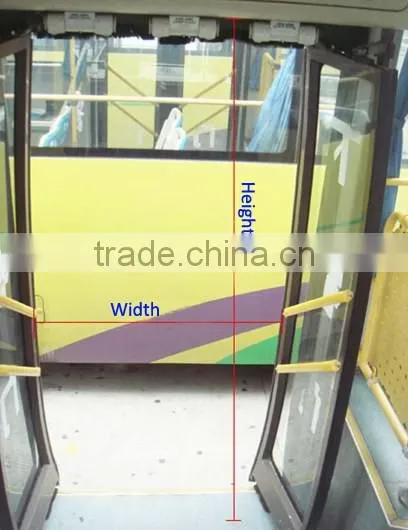

As default settings of mounting height was made before leaving factory, the operator shallhat it can be mounted properly for the height of the bus door(Normally, the height of bus door is 2.0m). The allowed variation for the mounting height is 10cm beyond which it may lead to unusual problems for the operation of the transducer. Please specify upon ordering if a special mounting height is used.
The mounting height herein refers to the vertical distance between the mounting location of the pedestrian flow transducer and the lowest flow by the bus door and would changes as the mounting location changes. T
herefore, prior to purchasing a pedestrian flow transducer, please verify the best mounting location
and calculate the according mounting height so as to avoid any unusual operative problems.
In case that users find out the practical mounting location is varied from the settled mounting location over15 cm, please contact us immediately.

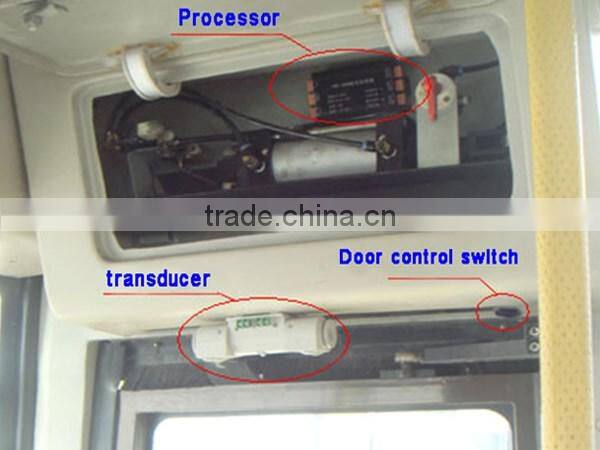

Transducer mounting place

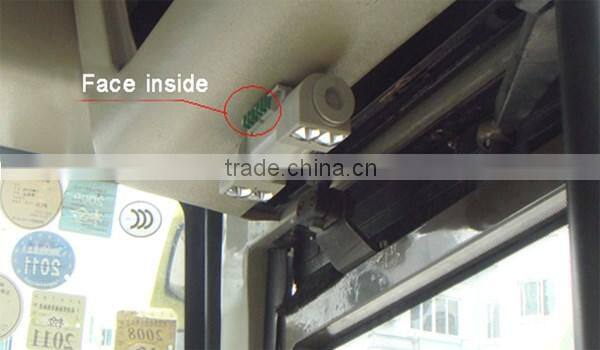

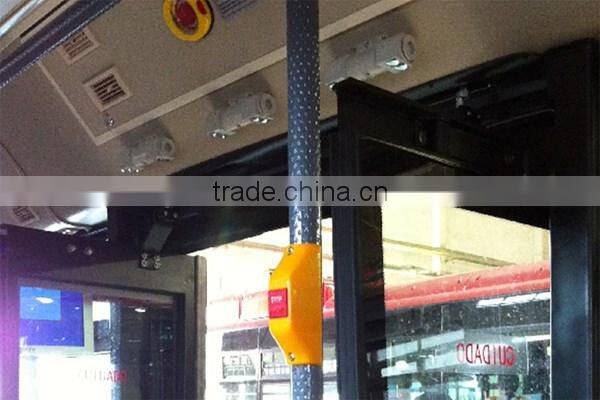

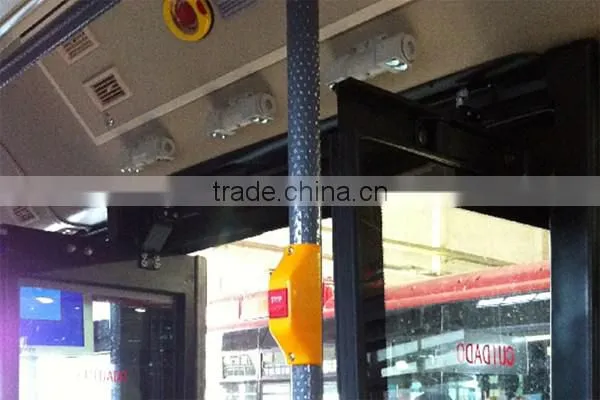

Transducer is mounted directly above the effective passage area of the bus. it couldn’t impact or affect the bus top mechanism when the door is open.
| Available passing area | Number of sensor |
| Within 70cm | 1 |
| 75cm -- 90cm | 2 |
| Over 95cm | 3 |

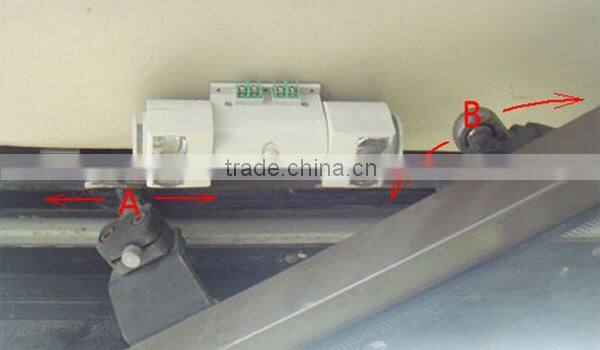

Gate controlled switch must be applied with magnetic mass by which the magnetic switch is on with magnetic

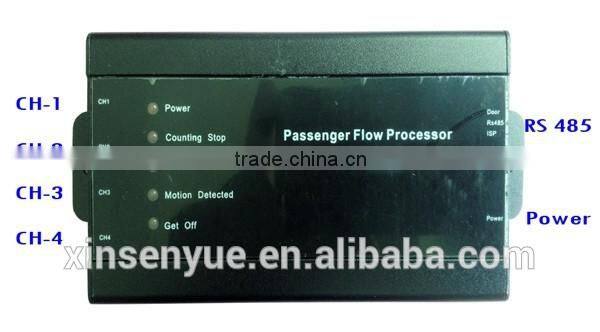

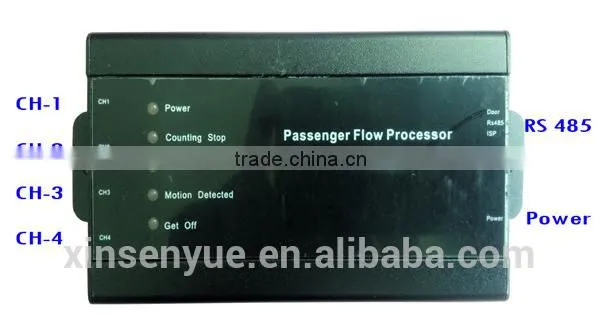

Processor
One set of the contains two pedestrian flow processing units . The one with ID 0001shall be installed

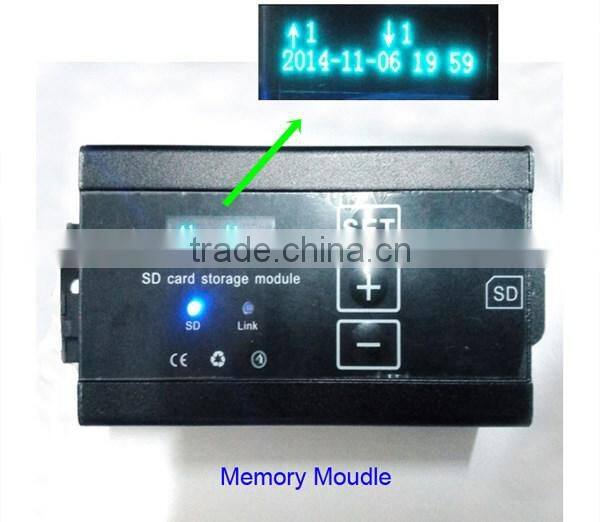

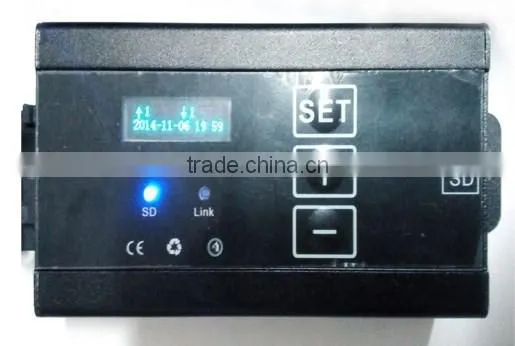

The SD memory module could record the pedestrian flow at the front and rear bus doors during every times

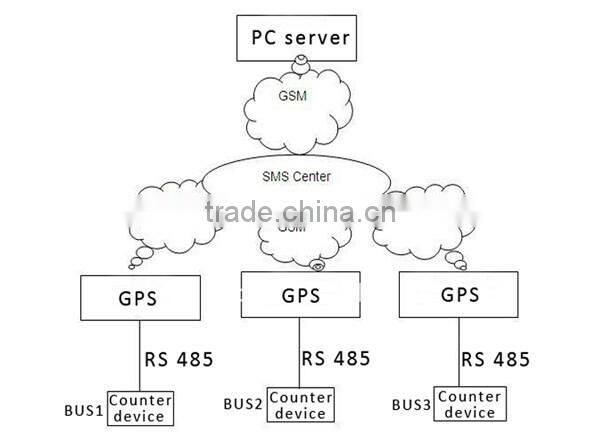

Connect to GPS
The counter system can be connect to GPRS device, such as GPS, the passenger data and GPS info can be transfer to the server.
Packaging&Shipping
| MOQ | 1 set |
| Lead time | Within 1 week for the sample, 15 days for bulk order |
| Delivery Clause | FOB XIAMEN |
| Terms of payment | T/T, L/C, Western Union |
| Supply Ability | 5000 sets / month |
1)30% advance TT, the balance is paid against the copy of BL
2)100% irrecovable LC at sight
The Information of XINSENYUE
XIAMEN XINSENYUE TECHNOLOGY CO,.LTD was founded in 2007 , located at Xiamen of Fujian province, specialized design production school bus stop arm in electric, GKM tracking system, passenger counters system, automatic fire extinguisher and other safety products. XINSENYUE engaged in design and production, sales, after service. We have rich information for exploring quickly development market, we have always placed people first, had high level of specialization, of good quality, and morals first. We will endeavor to build and develop “XINSENYUE plot” enterprise culture. We promoted enterprise’s quality and core competence, pursued anew development.
