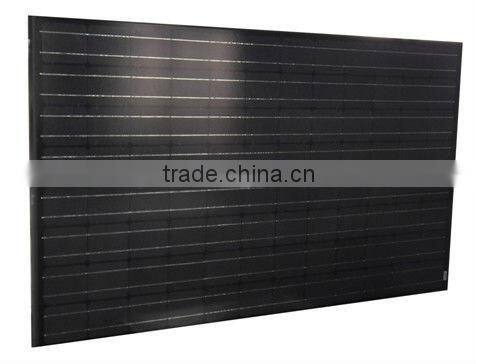

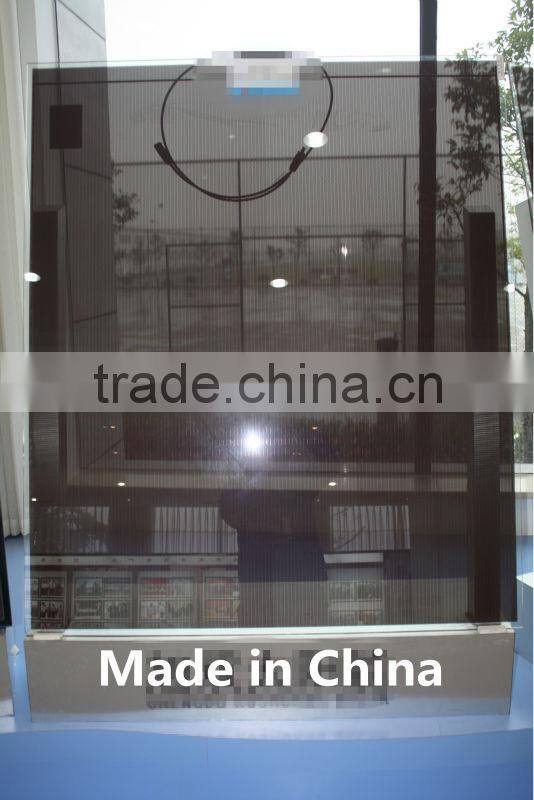

Stock Solar Panel In EU,Photovoltaic Module/250W 260W 300W 310W PV Panel
US$ 0.35 - 0.43
MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Power World
Model Number:
PW250-60
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mono Solar Panel Black 250W, Solar PV Module Factory PriceUS$ 0.37 - 0.48MOQ: 1000 Watts -
Cheap PV Solar Panel 100W 150W 240W 250W 310W,Stock Solar Panel In ChinaUS$ 0.32 - 0.45MOQ: 1000 Watts
-
Stock Solar Panel In China, Mono/Poly PV Module 50W 100W 200W 250W 300WUS$ 0.32 - 0.45MOQ: 1000 Watts
-
Stock Solar Panel In EU,PV Solar Panel 240W 250W 260W 300W 310W,ModuleUS$ 0.35 - 0.43MOQ: 1000 Watts
-
Stock Solar Panel In USA,Poly/Mono Solar Panel 250W 260W 300W 310WUS$ 0.49 - 0.55MOQ: 1000 Watts
Place of Origin
Shandong, China
Brand Name
Power World
Model Number
PW250-60
Material
Monocrystalline Silicon
Size
1646X992X45mm
Number of Cells
60
Max. Power
258
Stock Solar Panel In EU,Photovoltaic Module/250W 260W 300W 310W PV Panel
| NO. | TYPE | PW250M-60 | |||
| 1 | Peak Power(Pm) | 250W | |||
| 2 | efficiency rate | 17.2% | |||
| 3 | Power Tolerance | ±3% | |||
| 4 | Open circuit Voltatge(VOC) | 36.60V±0.5 | |||
| 5 | Short Circuit Current(ISC) | 8.86A±0.2 | |||
| 6 | Maximum Power Voltage(Vmp) | 30.04V±0.5 | |||
| 7 | Maximum Power Current(Imp) | 8.32A±0.2 | |||

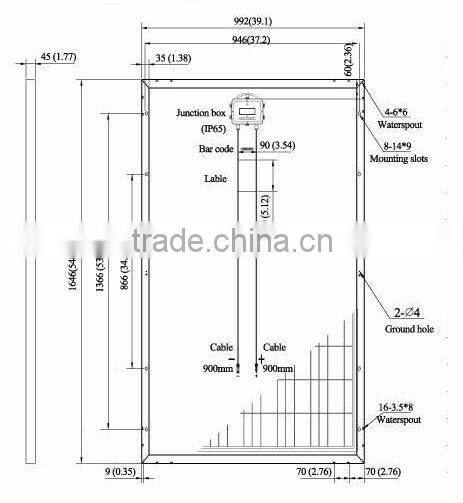

| 8 | Size of Module | 1646×992×45mm | |||
| 9 | Cell Type | Monocrystalline | |||
| 10 | Quantity and Dimession of Cell | 60pcs,156×156mm | |||
| 11 | Glass type and Thickness | Low iron tempered 3.2mm | |||
| 12 | Maximum System Voltage | 1000V DC | |||
| 13 | Maximum Series Fuse Rating | 15A | |||
| 14 | Temperature Coefficients of Pmax | -0.34%/°C | |||
| 15 | Temperature Coefficients of Voc | -0.32%/°C | |||
| 16 | Temperature Coefficients of Isc | -0.04%/°C | |||
| 17 | Nominal Operating Cell Temperature | 45 ± 2/°C | |||
| 18 | Weight | about 23kg | |||
