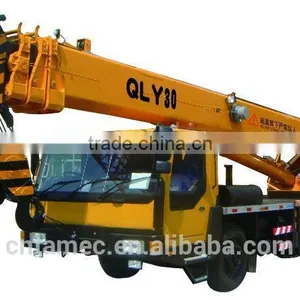

TRUCK CRANE

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Max. Lifting Load:

20-120T

Place of Origin:

Shandong, China

Certification:

ISO

Taian Tamec Imp. & Exp. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Max. Lifting Load 20-120T

Place of Origin Shandong, China

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

ITEM	UNIT	DATA
Overall dimension
Overall length	mm	13530
Overall width	mm	2500
Overall height	mm	3550
Weight
Total weight in travel	kg	31420
Front axle load	kg	7470
Rear axle load	kg	23950
Engine
Engine model		WP10.270N
Engine rated power	Kw/(r/min)	199/2200
Engine rated torque	N.m/(r/min)	1100/1200~1600
Travelling specifications
Max. travel speed	Km/h	74
Min. turning diameter	m	24
Min. ground clearance	mm	220
Approach angle	°	15.8
Departure angle	°	10
Max. grade ability	%	30
Fuel consumption for 100km	L	40
Working performance specifications
Max. rated lifting capacity	t	30
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.86
Max. lifting torque	KN.M	1010
Base boom	m	10.5
Fully extended boom	m	33
Fully extended boom+ jib	m	41
Longitudinal outrigger span	m	5.41
Lateral outrigger span	m	6.15
Working speed
Boom luffing time	s	93
Boom full extension time	s	110
Max. swing speed	r/min	2.0
Max. speed of main. winch (single rope)	m/min	123
Max. speed of aux. winch (single rope)	m/min	≤120
