| Model | SW80BV |
| Engine | 4102 with turbo |
| Fuel | Diesel |
| Cooling type | Vertical water-cooled |
| Output | 85Kw |
| Starting Model | Electric Start |
| Overall DimeNSION(mm) | 5800*2800*2600 |
| Cargo body | 3600*2000*400 |
| Total weight(Kg) | 5600 |
| Loading(Kg) | 8000 |
| Maximum capacity of climbin | 32°&65% |
| Max Speed(Km/h) | 36 |
| The driving wheel diamete(mm) | 650 |
| Chassis length (mm) | 4200 |
| use for | snowfield & swamp |
| steering mode | 360° turning centre |

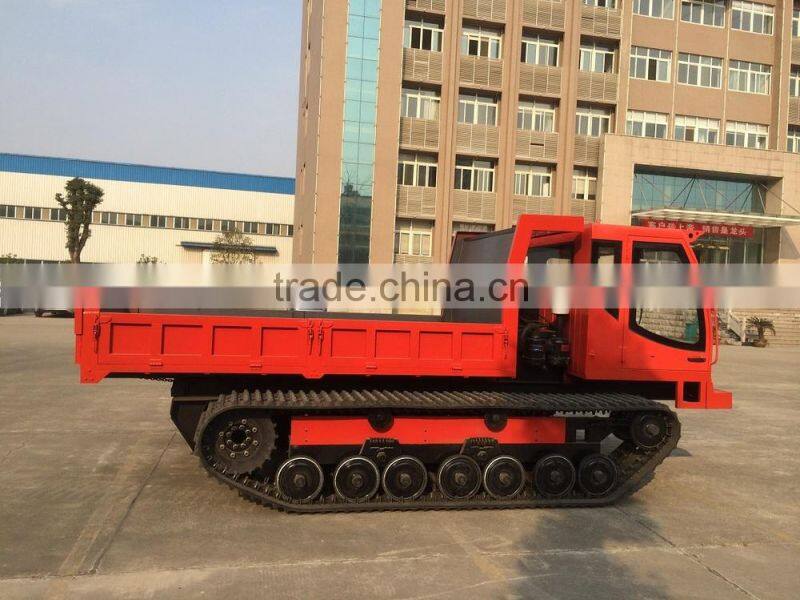

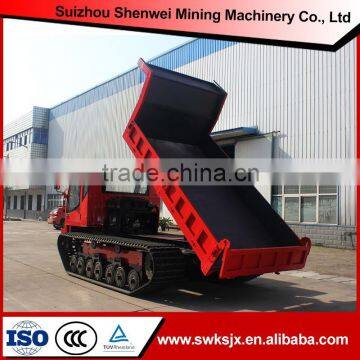

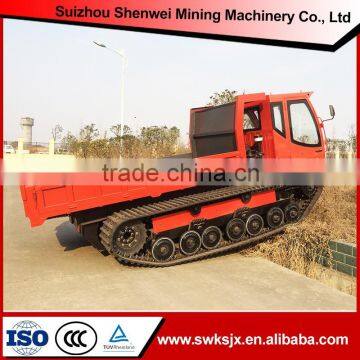

SW80BV high speed crawler transporter synopsis
SW80BV high speed crawler transporter are Suizhou Shenwei Mining Machinery Co.,LTD, referring to high-performance active-duty military vehicles abroad structural design and manufacture of high efficiency, cost-effective products. Standard transport vehicle maximum speed 36km / h, the maximum climbing 32 degrees, the maximum load 8 tons, have great differences with respect to domestic and other tracked vehicles 3-7km / h per hour performance.
SW80BV high speed crawler transporter using high speed steel core rubber track Kevlar fiber, high strength, light weight, and pressure than the small, good stability, strong adhesion, traction, does not destroy the road. Support rollers, wheels with self-lubricating ultra high molecular weight polymeric materials processing, steel wheels wear ordinary seven times, using aerospace aluminum wheel bearing hanging plastic design, load-bearing properties of stable self-damping effect. Turbocharged diesel engine with intercooler 114-220pa, 8-10 commutation speed gear box, according to the environment can choose a different speed range. Planetary steering mechanism, promoting tight structure, simple operation, small turning radius, reliable performance.
SW80BV high speed crawler transporter equipped with high-speed sealed cab, front and sides of vision, a good seal. Pneumatic suspension seat, driving comfort, cushioning adjustment range between 50kg-120kg adjustment. The front part of the installation has 18,000 pounds of electric winch, under special circumstances traction, trailer or other vehicle supplies, also available from the rescue. Air conditioning can be installed upon request, heaters, DVD players.
Track SW80BV high speed crawler transporter used in high speed, support rollers, road wheels, wheels warranty period of 12 months, the diesel engine and transmission parts warranty period of three months. Consumable parts versatile, inexpensive, relatively abroad crawler transporter special and expensive accessories and maintenance costs, higher cost of the product.

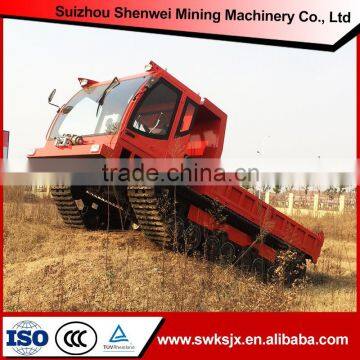

SW80BV speed tracked all-terrain vehicles suitable for complex terrain, harsh environment swamp, desert, snow, desert, mountains and other places. Depending on vehicle size and environmental compartments custom sizes available upon request. Can be installed crane, tank, mixing tank, drilling rigs and other special-purpose coat components. Can also be made into a sealed body, the installation of water-jet propulsion to achieve amphibious.
Suizhou Shenwei Mining Machinery Co., Ltd. to military civilian, cost effective, on-demand customized mode of operation to provide you with better products!
