Brand Name SINORIENT
Model Number MOTORCYCLE TYPE B

Specifications

Motorcycle tyre B type curing bladder
Abundant sizes
Plentiful patterns
Reliable quality
Competitive prices



Semi-steel Radial Tire B Type Curing Bladder

1.A/B/AB Type Radial Tire Bladder
2.B Type Bias Tire Bladder
3.Air Spring Curing Bladder
4.OTR Radial/Bias Tire Bladder

5.B Type Bias Motorcycle Tyre Bladder

As one professional manufacturer of tyre curing bladder with the ability of self-design and development, we have abundant experience in manufacturing and exporting various kinds of tyre curing bladder to USA and European markets. Sweet is ISO certificated manufacturer with the most advanced equipments, such as injection & molding press and so on.

The most competitive prices ,prompt delivery and best quality are provided.



Now we have successfully researched  heat-resisting curing bladder, This product  shortens tyre curing time. It can save 30 seconds curing time for each time

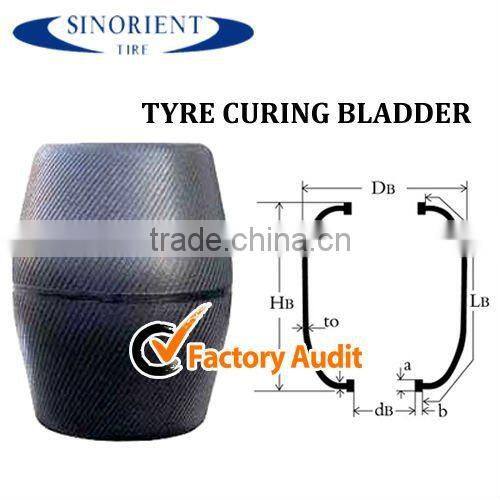

Bladder Code Rim
Diameter
(")		 Foot
I.D
dB (mm)		 Foot
Height
a (mm)		 Foot
Width
b   (mm)		 Foot
Gauge
To' (mm)		 Central
Gauge
To(mm)		 Outside Diameter
DB (mm)		 Over-all Height         HB (mm) Effective
Periphery
LB(mm)		 Etch Page Applied     Tyre     section
M15-A 15 305 18 7 7.5 6 370 280 293 Gravel 12/90-15
B17/5.0i 17 367 20 7 7.5 5 430 131 140 Twill
B17/7.0i 17 367 20 7 7.5 4.5 430 170 180 Twill 2.50-17
B17/7.2i 17 367 20 7 7.5 4.5 430 174 184 Twill 250-17
B17/8.3i 17 367 20 7 7.5 5 430 202 212 Twill
B2.50-18 18 392 20 7 6.5 5.5 440 170 180 Twill
B18/8.3i 18 392 20 7 6.5 4.5 445 200 204 Twill 3.00-18 80/100-18
2.75-18
B18/9.6i 18 392 20 7 6.5 4.5 445 235 238 Twill 110/90-18
100/90-18
B19/9.6i 19 417 20 7 7.5 5 480 234 244 Twill
B21/8.3i 21 468 20 7 7.5 5 531 202 213 Twill
M10-A 10 188 20 8 8 5 270 200 202 Plain 3.00-10
M10-B 10 188 20 8 8 5 270 226 228 Plain 3.50-10
M12-A 12 238 20 8 8 5 290 230 238 Grid 120/70-12
M13-A 13 266 20 8 8 5 306 212 215 Grid 130/60-13
M16-A 16 337 20 8 8 5 394 250 260 Grid 110/90-16
MT80/90-21 21 456 20 8 6.5 5 504 370 390 Gravel 80/90-21
29*4.8 22 450 20 12 9 8 530 262 278 Twill
M10-A-2 10 178 19 12 8.5 4.5 266 190 206 Twill 3.00-10
325-16 16 336 20 7 7.5 6 385 210 216 Twill 325-16
MB275-21 21 468 20 7 7.5 5 518 180 184 Twill
MB90/90-19 19 417 20 7 7.5 5 465 200 202 Twill







Motorcycle Tyre Curing Bladder Type B B17/7.0i

Motorcycle Tyre Curing Bladder Type B B17/7.0i

Motorcycle Tyre Curing Bladder Type B B17/7.0i
