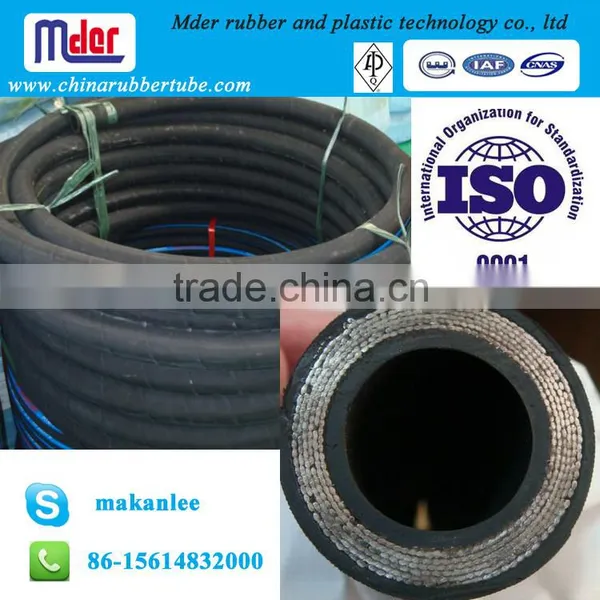

china rubber hose 4SH 4SP wire inforced spiraled sae r13 hydraulic rubber hose
Recommended for:High pressure hydraulic oil lines for applications with crude oils, fuel oils,lubricating oils and gasoline.
Tube:Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +100℃(-40℉ -- +212℉)
| M-ES6 4P wire spiral hydraulic rubber hose | |||||||||||||||
| Type | SIZE | SIZE | ID | WD | OD | WP | BP | min BR | WT | ||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| ES4P-04 | 6.3 | 1/4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 45 | 6625 | 180 | 26100 | 5.91 | 150 | 0.64 |
| ES4P-06 | 10 | 3/8 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 44.5 | 6450 | 178 | 25810 | 7.09 | 180 | 0.75 |
| ES4P-08 | 12.5 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 41.5 | 6020 | 166 | 24070 | 9.06 | 230 | 0.89 |
| ES4P-10 | 16 | 5/8 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 35 | 5075 | 140 | 20300 | 9.84 | 250 | 1.1 |
| ES4P-12 | 19 | 3/4 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 35 | 5075 | 148 | 21460 | 11.81 | 300 | 1.5 |
| ES4P-16 | 25 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 28 | 4060 | 112 | 16240 | 13.39 | 340 | 2.00 |
| ES4P-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 21 | 3045 | 84 | 12180 | 18.11 | 460 | 3.00 |
| ES4P-24 | 38 | 1 1/2 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | 18.5 | 1680 | 74 | 10730 | 22.05 | 560 | 3.40 |
| ES4P-32 | 51 | 2 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 16.5 | 2390 | 66 | 9570 | 25.98 | 660 | 4.35 |
Packing:
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production .
