Mder Top in High-pressure Hose En856 4sh
US$ 20 - 20
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Mder
Model Number:
DIN
Payment & Shipping
Payment Methods:
Port of Shipment:
xinggang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2" Inside Diameter Rubber Hose According Standard DIN en 856US$ 20 - 20MOQ: 50 Meters -
4sp According Standard DIN en 856 1 1/4 Inch Rubber HoseUS$ 20 - 20MOQ: 50 Meters
-
Mder Top in High-pressure Hose En856 4sh Hydraulic Rubber HoseUS$ 20 - 20MOQ: 50 Meters
-
Mder Top in High-pressure Hoses En856 4sh Hydraulic UseUS$ 20 - 20MOQ: 50 Meters
-
Mder Top in En856 4sh High-pressure Pump Hydraulic HoseUS$ 20 - 20MOQ: 50 Meters
Place of Origin
Hebei, China
Brand Name
Mder
Model Number
DIN

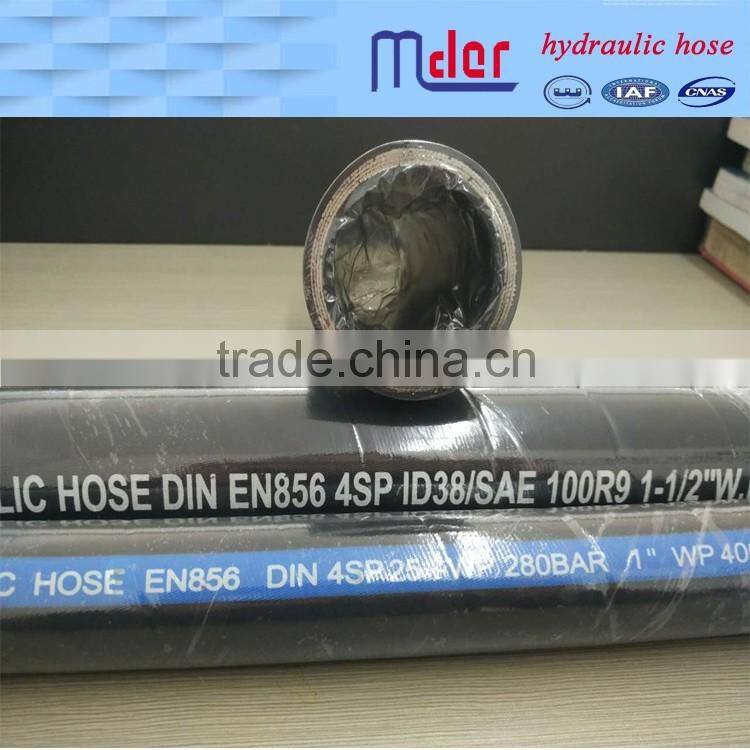

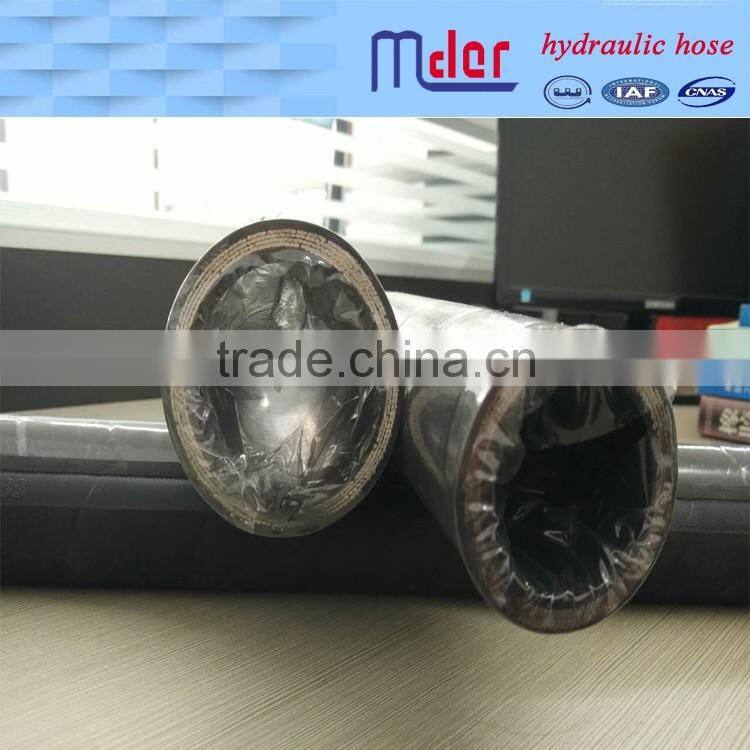

Mder top in alibaba high-pressure hose en856 4sh
Product Description
Products info:
standard:EN 856 4sh
high-pressure hose
Structure
- Inner Tube: Neoprene
- Reinforcement: Four spiral layers of high tensile steel wire
- Cover: Black neoprene blend that meets MT98 and GB/T 15907 Flame resistance
- Application Standards: GB / T 10544 4SP, EN856 4SP, MT98 4SP.
Working Temperature : -40°C to +100°C
| M-ES6 4H (EN856-4SH) wire spiral hydraulic rubber hose | |||||||||||||||
| Type | SIZE | SIZE | ID |
WD | OD | WP |
BP | min BR | WT | ||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| ES4H-12 | 19 | 3/4 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42 | 6090 | 168 | 24360 | 11.02 | 280 | 1.70 |
| ES4H-16 | 25 | 1 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38 | 5510 | 152 | 22040 | 13.39 | 340 | 2.50 |
| ES4H-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 130 | 18850 | 18.11 | 460 | 3.00 |
| ES4H-24 | 38 | 1 1/2 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29 | 4205 | 116 | 16820 | 22.05 | 560 | 3.60 |
| ES4H-32 | 51 | 2 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25 | 3625 | 100 | 14500 | 27.56 | 700 | 5.00 |
| Recommended for:High pressure hydraulic oil lines for applications with crude oils, fuel oils,lubricating oils and gasoline. Tube:Black, oil resistant,oil resistant synthetic rubber Reinforcement: four plies of spirally wrapped high tensile steel wire. Cover:Black, oil and weather resistant synthetic rubber Temperature: -40℃ -- +100℃(-40℉ -- +212℉) | |||||||||||||||
Features
- It provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber.
- It provides high pressure resistance and superior impulse resistance.
- It provides superior bonding in hose internal, soft use and small deformation under pressure.
- It provides superior kink resistance and fatigue resistance and longer services life.
production process
Company Information
Company info:
Packaging & Shipping
Packing:
shipment:
Our Services
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ
FAQ
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.How to pay ?
A:We support transfer money by all kinds of ways
