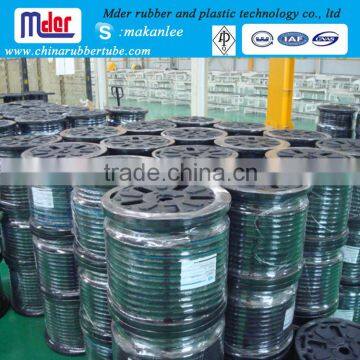

small diameter braided hydraulic rubber tube
- 3000 Meter / Meters per Month
- Tianjin
- T/T Credit Card
Product Details
| Place of Origin: | Hebei, China | Brand Name: | Mder | Model Number: | SAE |
Product Description
small diameter braided hydraulic rubber tube
A. 1 braided hose B. 2 braided hose C. large braided hose
| M-RB1 (SAE 100 R1) Steel wire reinforced hydraulic rubber hose | ||||||||||||||||
| Type | SIZE | SIZE | ID | WD | OD | WP | BP | min BR | WT | |||||||
| A TYPE | AT TYPE | |||||||||||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| RB1-03 | 5 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 | 21 | 3045 | 84 | 12180 | 3.54 | 90 | 0.20 |
| RB1-04 | 6.3 | 1/4 | 6.2 | 7.0 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 19.2 | 2780 | 77 | 11165 | 3.94 | 100 | 0.25 |
| RB1-05 | 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 17.5 | 2540 | 70 | 10150 | 4.53 | 115 | 0.31 |
| RB1-06 | 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.1 | 15.7 | 2280 | 63 | 9135 | 4.92 | 125 | 0.36 |
| RB1-08 | 12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 22.2 | 23.8 | 21.5 | 14 | 2030 | 56 | 8120 | 7.09 | 180 | 0.45 |
| RB1-10 | 16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 24.7 | 10.5 | 1520 | 42 | 6090 | 8.07 | 205 | 0.52 |
| RB1-12 | 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 28.6 | 8.7 | 1260 | 35 | 5075 | 9.45 | 240 | 0.65 |
| RB1-16 | 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 | 7 | 1015 | 28 | 4060 | 11.81 | 300 | 0.91 |
| RB1-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 | 4.3 | 620 | 17.5 | 2540 | 16.54 | 420 | 1.30 |
| RB1-24 | 38 | 1 1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 52.0 | 3.5 | 510 | 14 | 2030 | 19.69 | 500 | 1.70 |
| RB1-32 | 51 | 2 | 50.4 | 52.0 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 | 2.6 | 380 | 10.5 | 1520 | 24.8 | 630 | 2.00 |
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.How to pay ?
A:We support transfer money by all kinds of ways
