2016 NEW Technology 45% Oil Output Economic New Technology Tire to Fuenace Oil Machine

FOB Price

US$ 25,000 - 55,000 / Set

1 Set(Min. Order)

Port lianyungang port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tire Machine
Tire Machine Type	Tire Recycling Machine	Place of Origin	Henan, China
Brand Name	lanning	Model Number	2800-6000
Voltage	380V	Power(W)	17kw
Dimension(LWH)	600028002800mm	Weight	32TONS
Certification	TUV/BV/CE/ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

introduction of main parts and the founction

Reactor

1. Made by Q345R boiler plate.

2. Auto-welding both inside and outside

3. With rock wool insulation board

Auto-feeder

1. 50 ton hydraulic pressure

2. Can feed all types of materials

3. Save labor and save time

Catalyst chamber

1. improve oil yield and oil quality

2. Reduce the speed of oil gas so that it can be better cooled

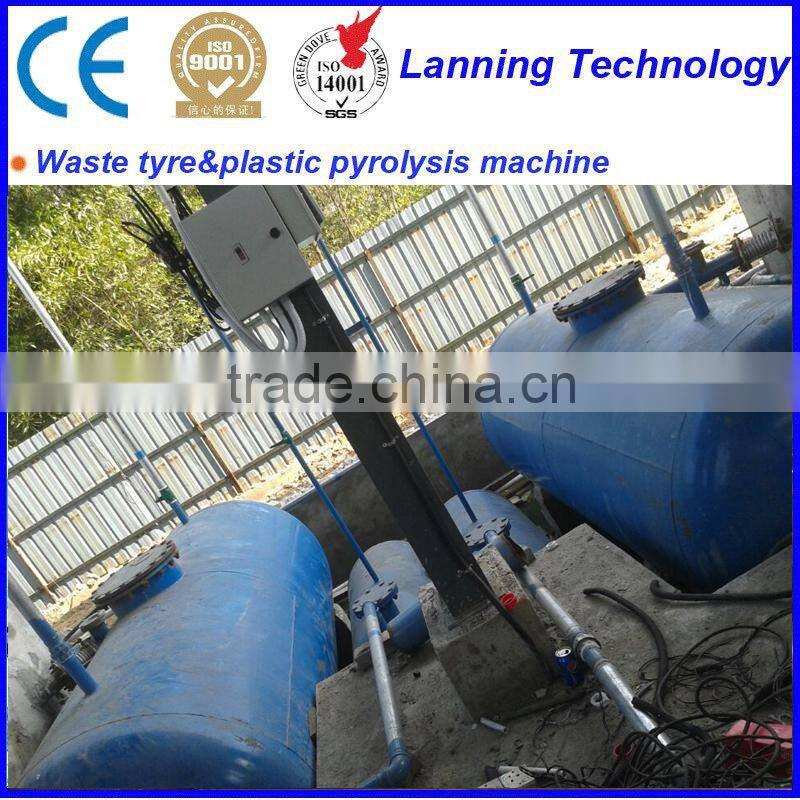

Oil-water separator

1. Separate oil and water

2. Collect heavy oil

3. Water sealing design keep safety

Condenser

1. The oil gas is cooled separately by small pipes inside condenser

2. Light oil is collected here

Vacuum device

Keep machine running under normal pressure

Anti-back fire device

1. Recycle residual gas to furnace as fuel

2. Water sealing design prevent tempering

Dust removal device

Dispose of flue gas caused by using coal, wood, oil or natural gas.

the main reactors

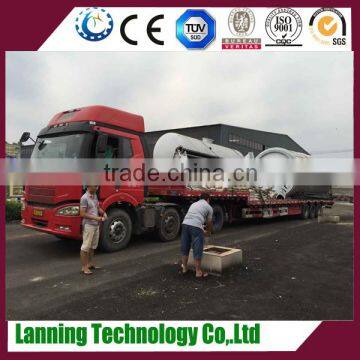

packing and shipping

Our Services

1. we will send our engineers too your factory to install the machine, guide your worker to operate the machine untill the production smoothly.

2.one year guarantee for the whole machine and lifelong maintenance.

3.24 hours technical supporrt by email.

our team

Company Information

we specialize in producing waste rubber refining machine,waste plastic refining machineand waste tyre refining machine.

the technology which produce oil by recycling waste tyres,plastics and rubbers has obtained environmental protection certificate and some mational patents.

so far,our products have been sold Southeast Asia,South Asia,North America and so on.what's more,our products are proved by the clients.

the certificates

manufcturing shop

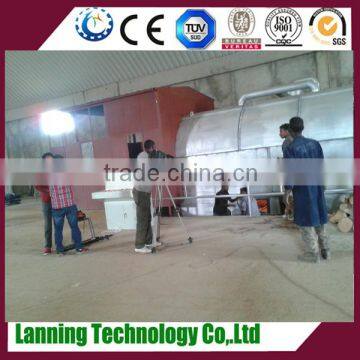

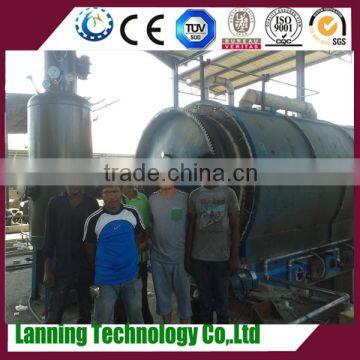

installed machine

work flow

Working Process:

Firstly, make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.

secondly, burned the fuel material(coal,or wood,or natural gas ,oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out .

then go to cooling system and liquid to oil.

Some incondensable gas which can't cooling down will be lead to furnace through a gas pipe. It will be used to heat reactor.

This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.

Lastly,when the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out
