Help Center2016 New Design Advanced Technology Professional Tyre Pyrolysis Plant Manufature in China
Related Products
-
Pollution Free and Environmental Protection Scraped Tyre Oil Pyrolysis QuipmentUS$ 25,000 - 45,000MOQ: 1 Set -
8 Tons Waste Tyre to Oil Equipment High Quality GuarantedUS$ 25,000 - 45,000MOQ: 1 Set
-
Waste Tire to Oil Machinery With Catalyst TowerUS$ 25,000 - 45,000MOQ: 1 Set
-
2013 Newest Design Waste Tyre to Fuel Oil Plant Made by LanningUS$ 25,000 - 45,000MOQ: 1 Set
-
Oil and Carbon Black Produced by Waste TyresUS$ 25,000 - 45,000MOQ: 1 Set
Five models as follows
Product Model |
Specifications |
Per batch capacity |
Per day output |
Containers |
Gross weight |
Power |
LN-2200*6000 |
2200mm*6000mm |
5ton |
2.5ton |
2*40HQ |
25ton |
11kw |
LN-2200*6600 |
2200mm*6600mm |
6~7ton |
3ton |
2*40HQ |
27ton |
11kw |
LN-2600*6000 |
2600mm*6000mm |
8ton |
4ton |
1*40HQ&1*FR |
30ton |
16kw |
LN-2800*6000 |
2800mm*6000mm |
10ton |
5ton |
1*40HQ&1*FR |
32ton |
17kw |
LN-2800*6600 |
2800mm*6600mm |
12ton |
6ton |
1*40HQ&1*FR |
33ton |
17kw |
Tyre Pyrolysis machine oil output:
|
Oil yield/day |
Used tyres,scrap tyres |
Big truck tyres |
45%--50% |
Car tyres |
40% |
||
Bicycles and motorcycles tyres |
30%--35% |
||
Waste plastics |
Fishing net,Safety net, farm-oriented film |
45%--50% |
|
Convenient bags , weave bags |
40% |
||
Off –cut of recycled paper mill |
20%--30% |
Machine configuration

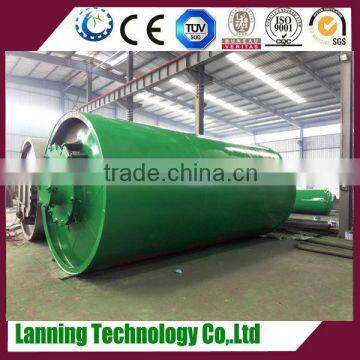

1 rotatable reactor
2 cover
3 oil separator
4 condenser for oil
5 light oil tank
6 heavy oil tank
7 water sealing tank
8 cooling tower
9 fan
10 sped reducer
11 dust remove system
12 waste gas burning system
13 electric cabinet
14 water pump
15 oil pump
Diagram of waste tire/plastic pyrolysis machine
Working Process:
Firstly, make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
Secondly, burned the fuel material(coal,or wood,or natural gas ,oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out .
then go to cooling system and liquid to oil.Some incondensable gas which can't cooling down will be lead to furnace through a gas pipe. It will be used to heat reactor.
This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
Lastly,when the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out.
Warranty and Machine Life:
We guarantee the complete machine one year since installation. If during the first year, there is any problem caused by the machine quality, we take responsibility. And we guarantee the reactor life more than 4 years, others parts no need to change. We provide the whole life maintenance for the machine
The function of the final products
Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or
chemical industries or hotels, restaurants etc. or used for generators to get electricity.
Carbon black: used for construction bricks with clay
also can be used as fuel
Steel wires: Sold or reprocessing
Combustible gas: Can be recycled and used during process as fuel.
Construction bricks with clay
also can be used as fuel
Steel wires: Sold or reprocessing
Combustible gas: Can be recycled and used during process as fuel.
